Description

Please note this product is supplied as a digital .STL file for self 3D printing and not a physical item; no product will be shipped. The file will be delivered immediately to your email upon purchase.

A direct replacement for the driver-side dash vent, designed to integrate a single 52mm gauge cleanly into the Z20 interior.

OVERVIEW

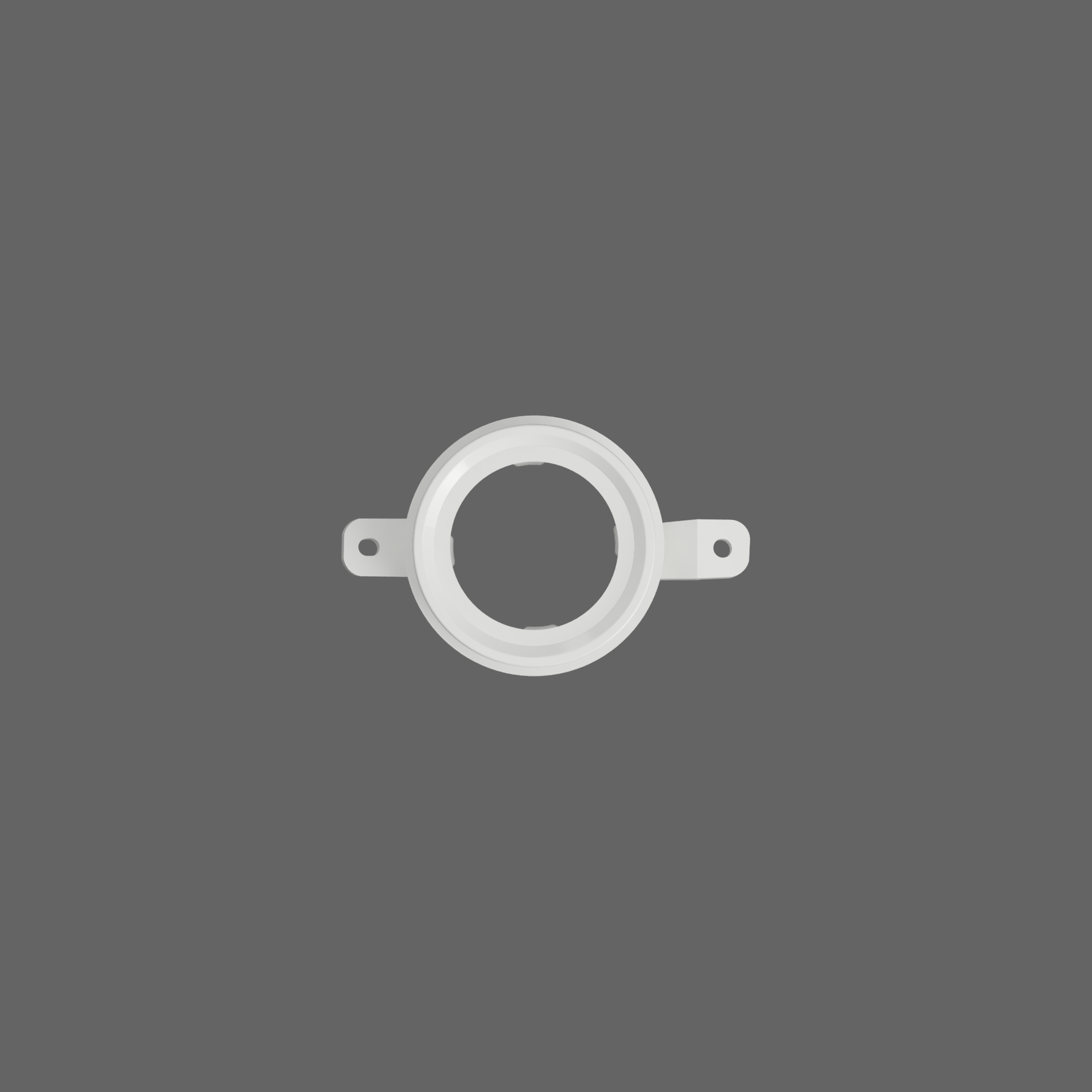

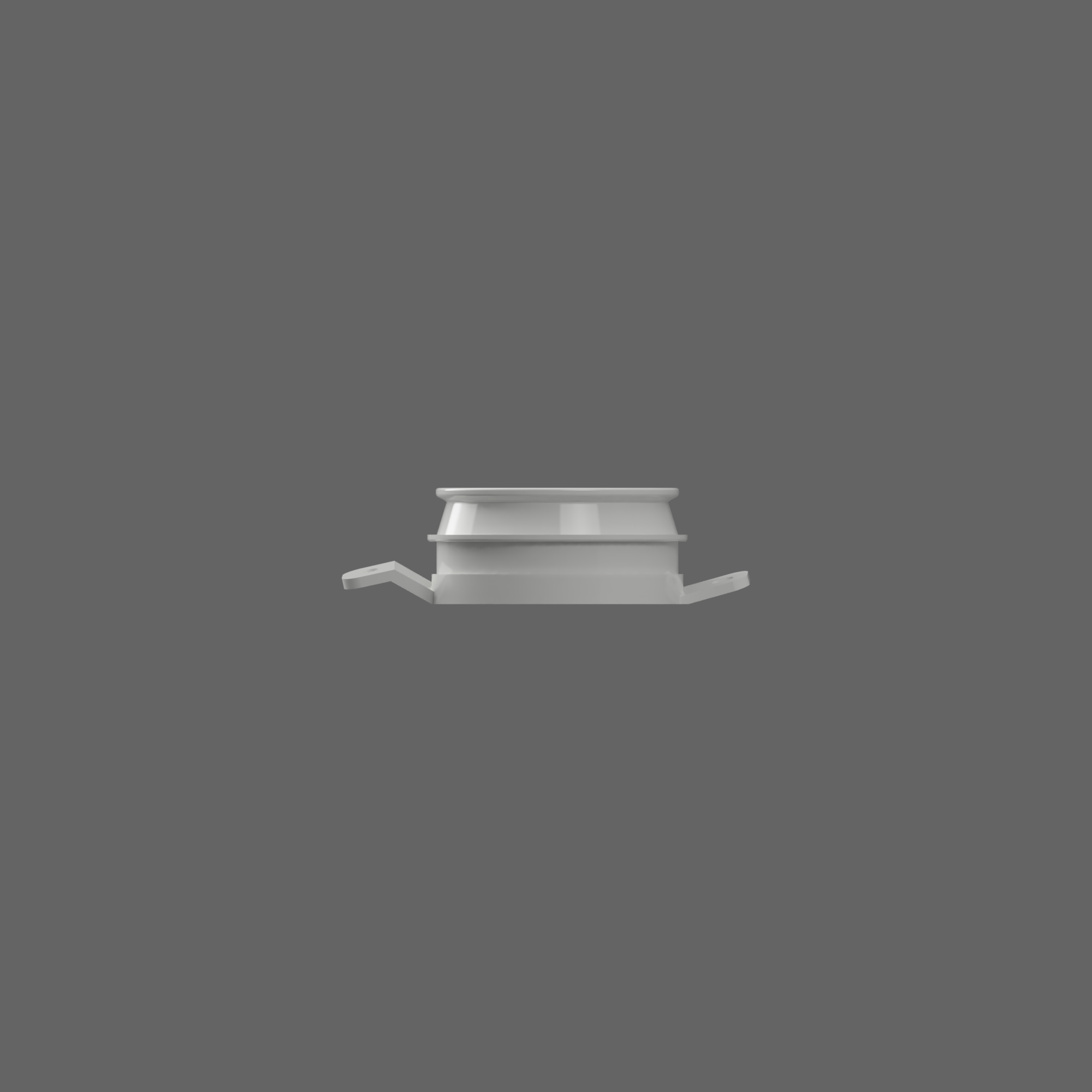

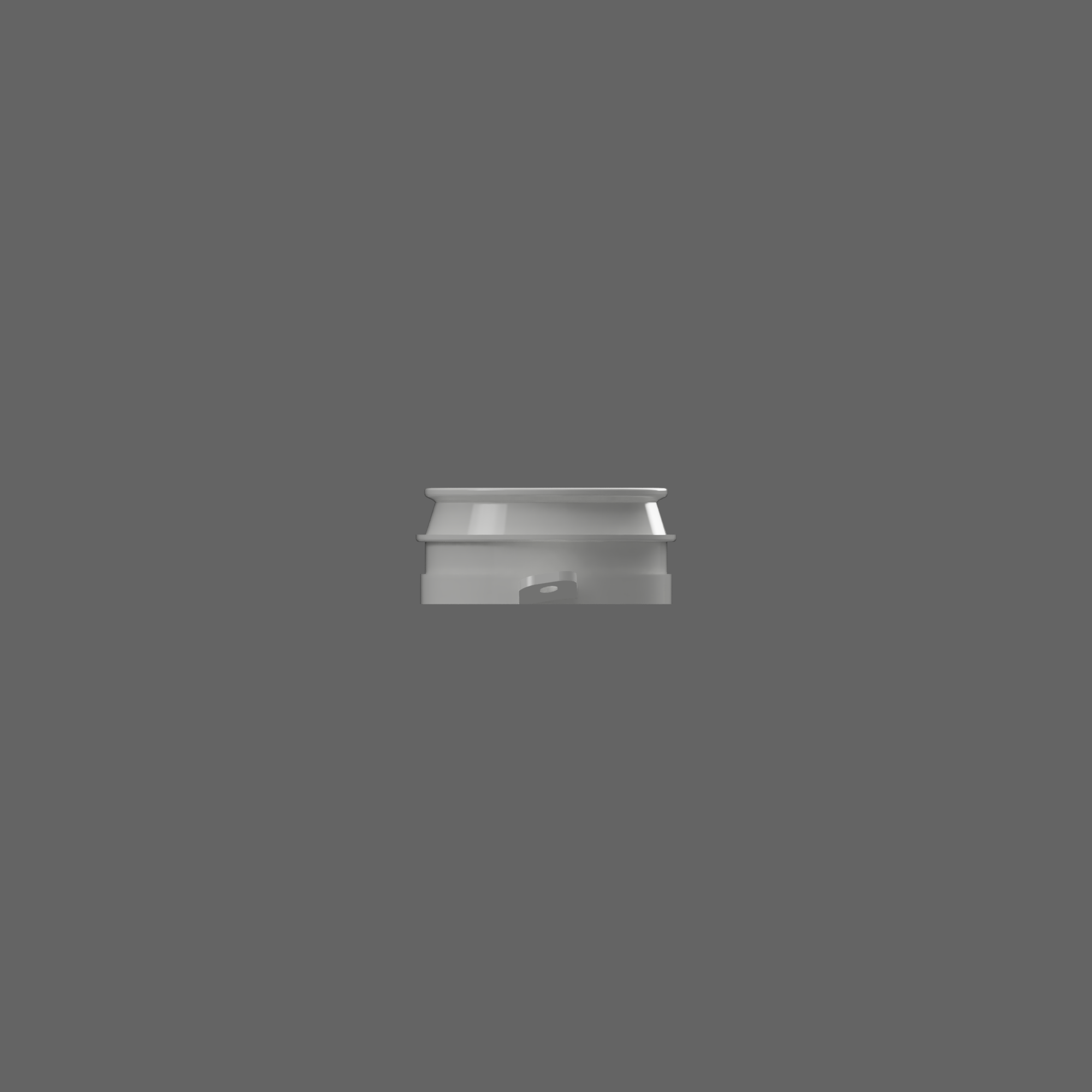

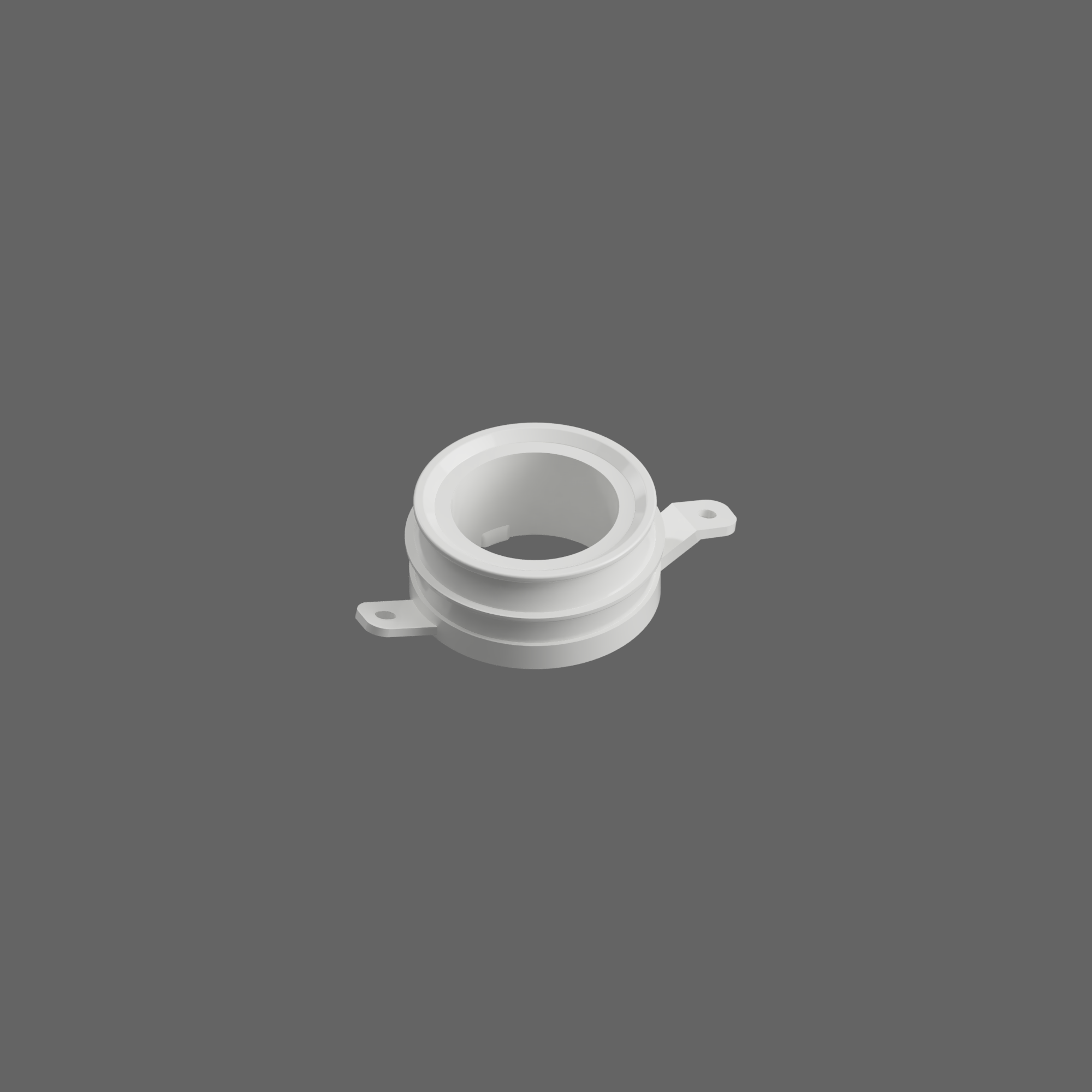

Single 52mm gauge pod with a subtle internal taper, giving a lightly recessed, factory-consistent appearance. Straight orientation keeps the geometry aligned with the original dash layout.

DESIGN

• 52mm gauge fitment

• 28mm straight depth before taper

• 4-point internal taper for gauge retention

• Straight (non-angled) layout

• One-piece design

FITMENT

• Fits Z20 Soarer


INSTALLATION

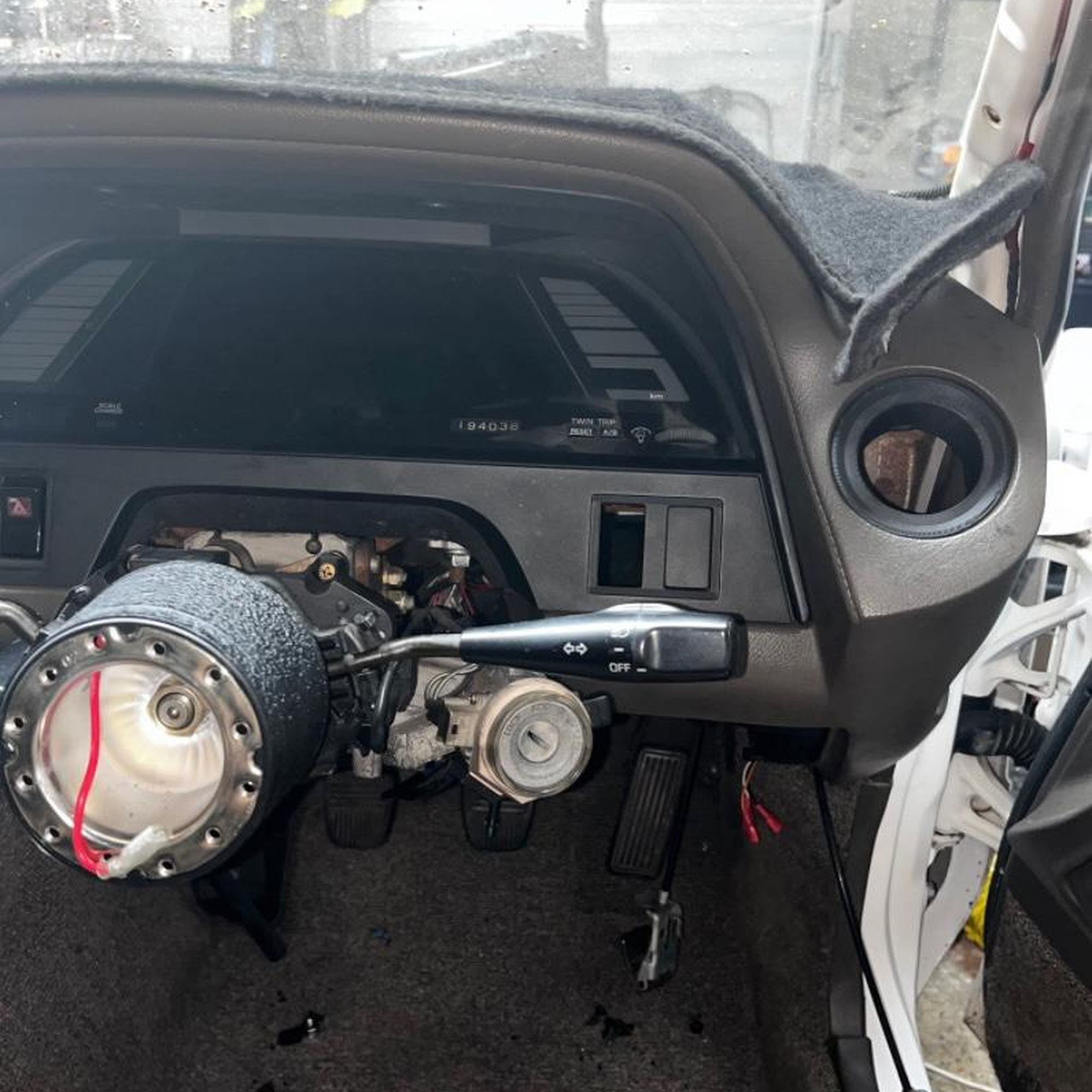

• Remove OEM driver-side vent assembly from behind the dash

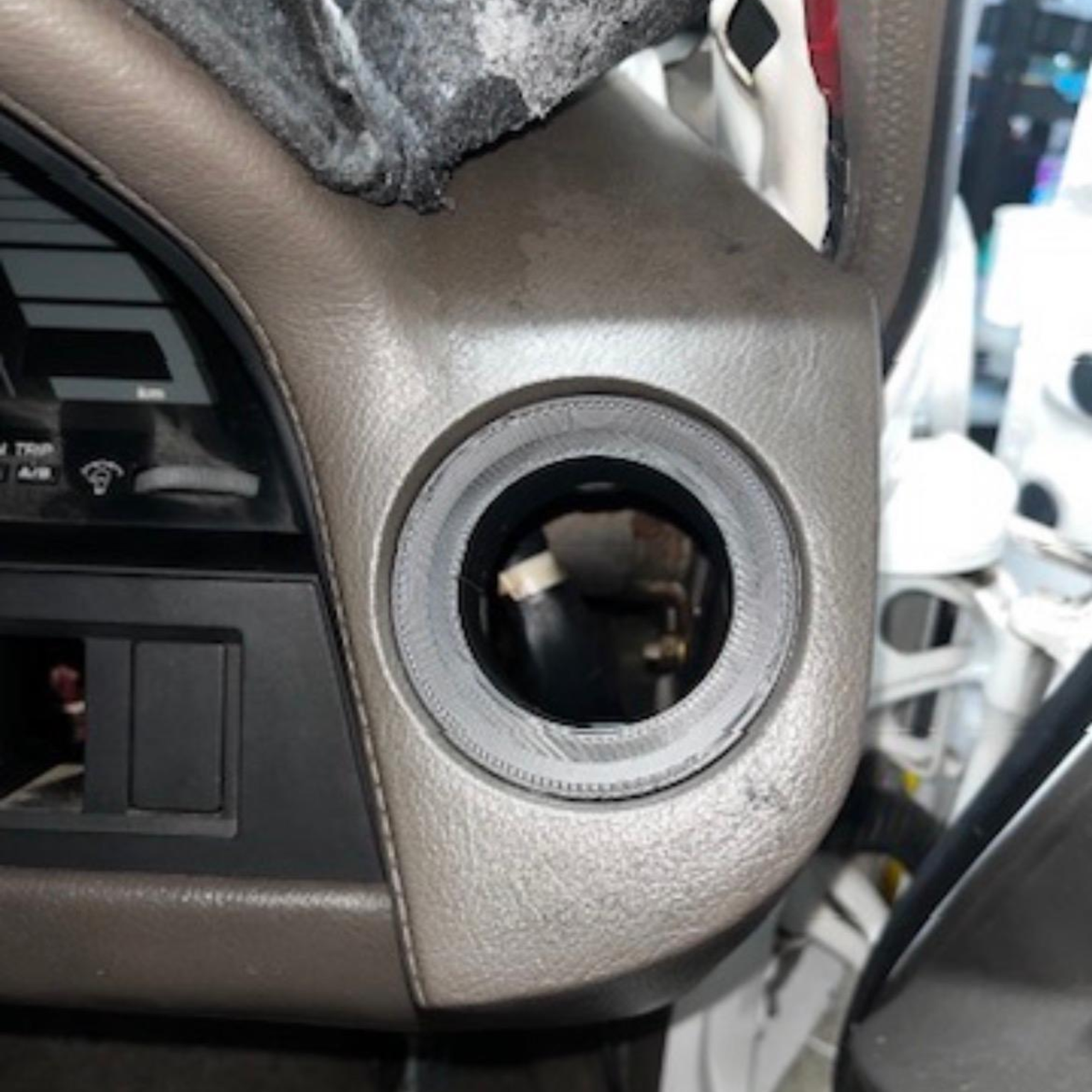

• Install gauge pod in its place

• Reuse factory mounting points and hardware

• No trimming or modification required

FUNCTION

• Replaces and deletes the factory vent

• Designed for any standard 52mm gauge (boost, oil pressure, AFR, etc.)

FILE DETAILS

• STL format

• Single-piece model

NOTES

• Designed as a clean, integrated interior solution rather than a surface-mounted add-on

• Fit and final result depend on print quality and material choice

• Digital download is provided as a one-time link; if lost, a replacement link can be requested at any time

LICENCE

This file is supplied for personal use only.
Resale, redistribution, or commercial use of the file or any physical reproductions is strictly prohibited.
