Toyota Soarer Z20 Front Bumper 3D Scan

Source part

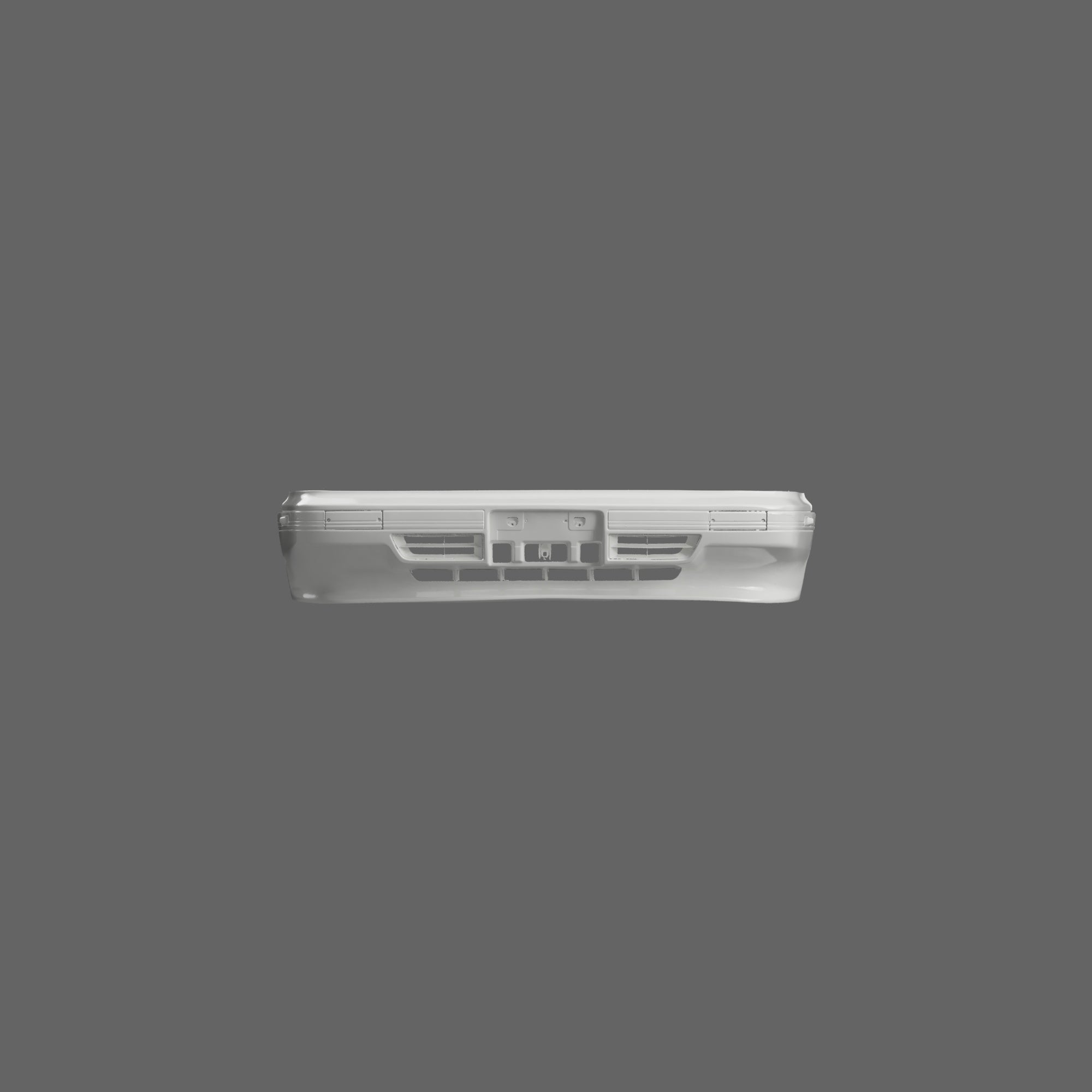

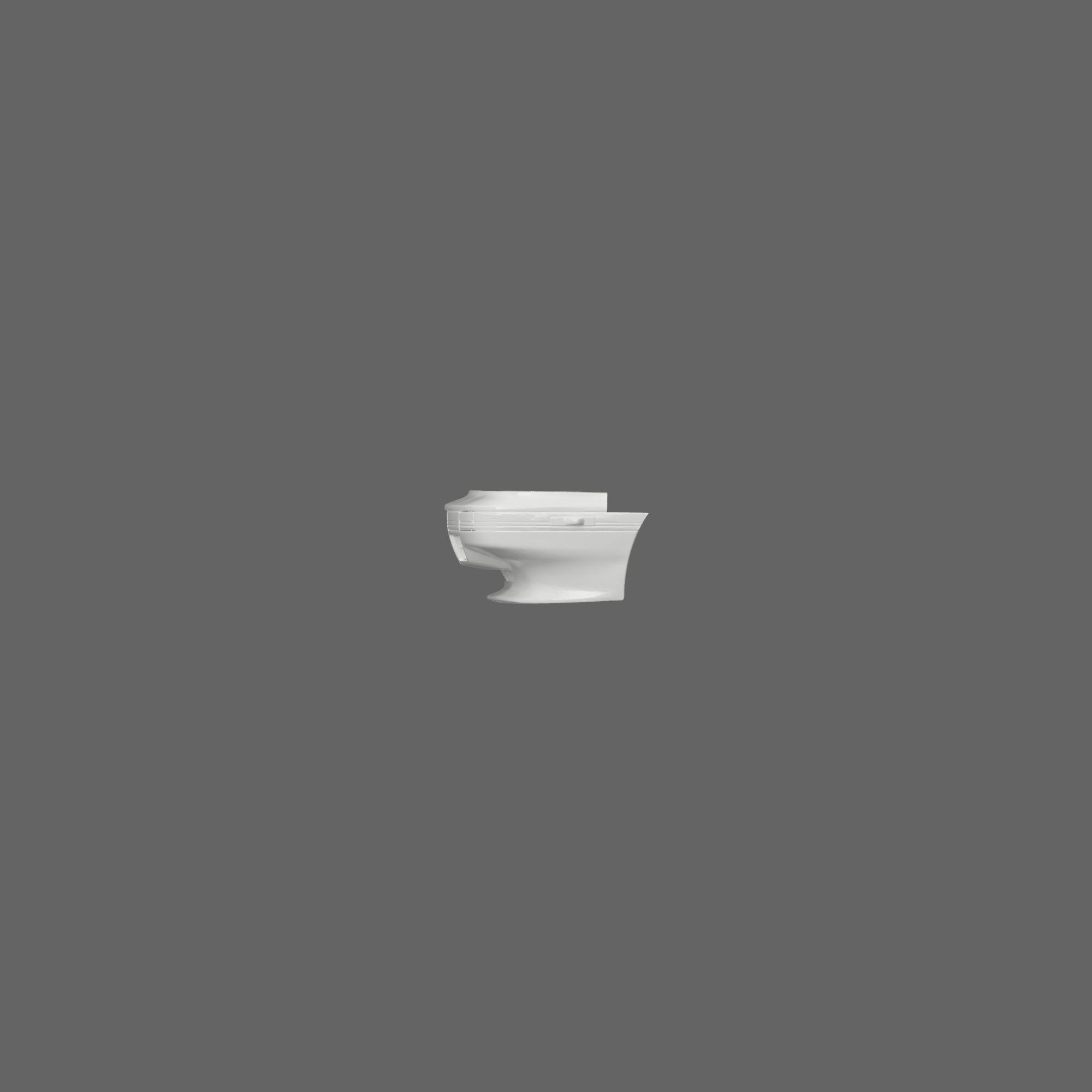

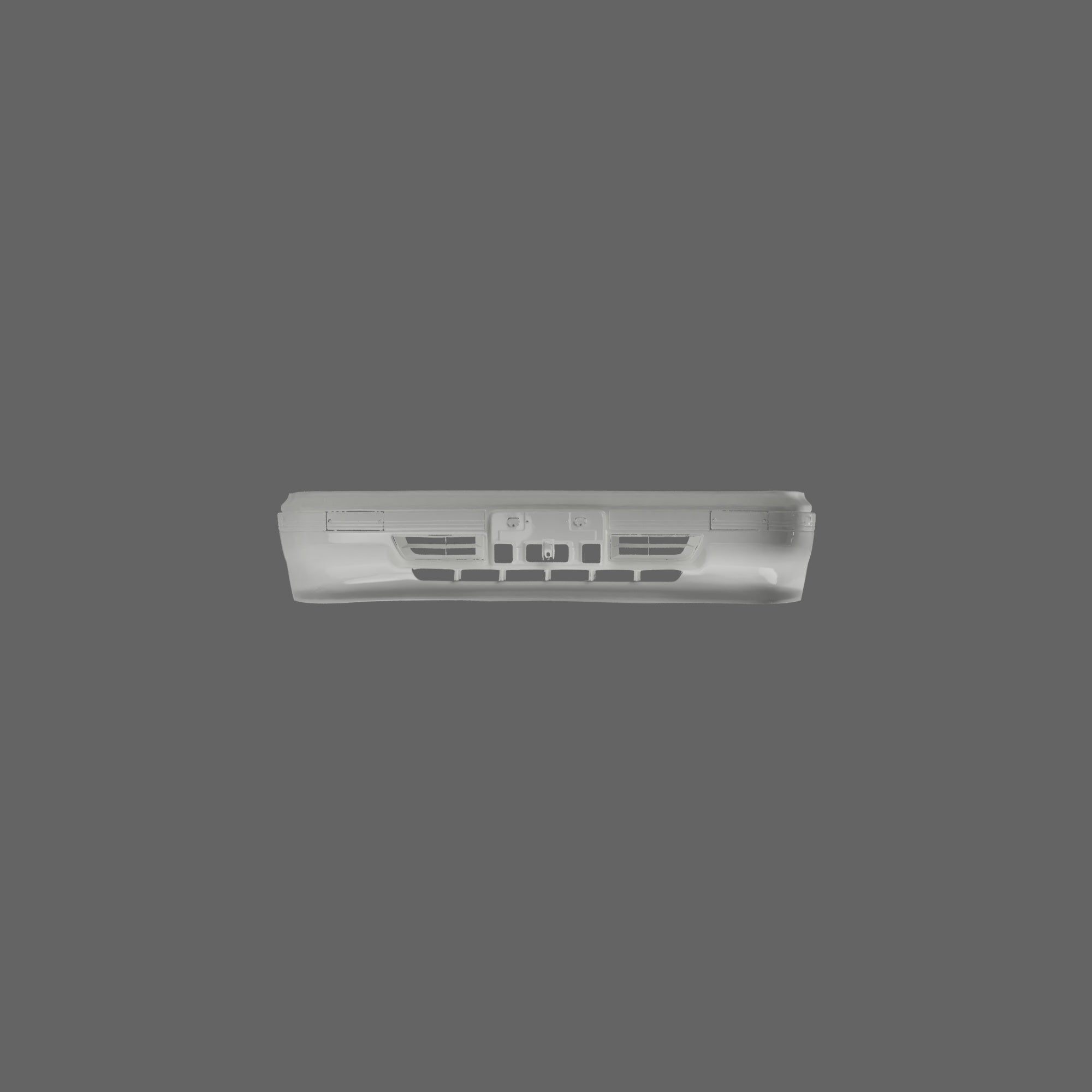

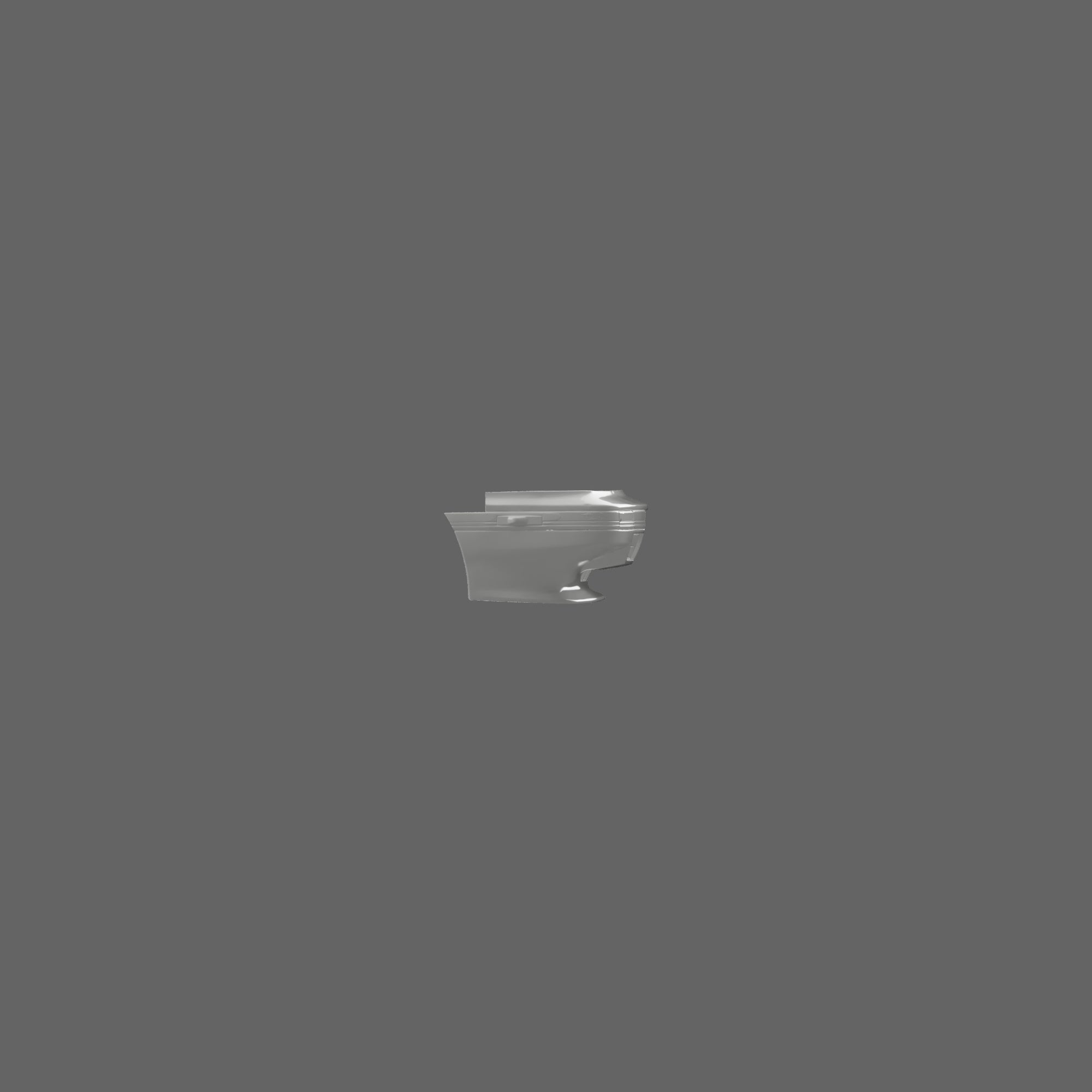

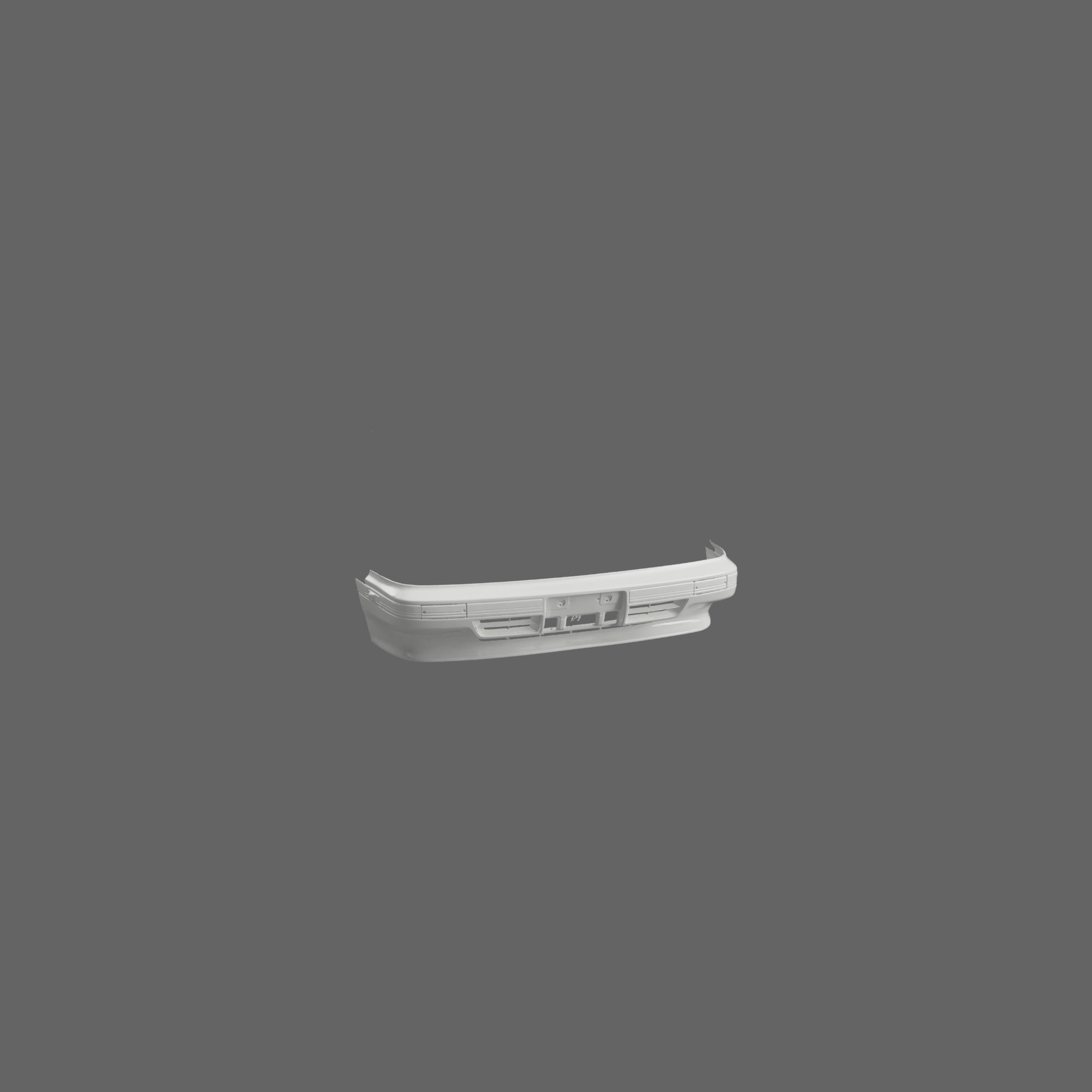

Toyota Soarer Z20 - front bumper (OEM)

This dataset contains exterior surface geometry of the OEM front bumper from a Toyota Soarer Z20, captured as a reference model for front-end development and exterior design work.

The bumper was scanned on the vehicle and post-processed to isolate the bumper geometry only. All surrounding components have been removed, leaving clean surface data for use in modelling and development.

Dataset overview

The dataset is supplied as STL mesh data and is aligned to the XYZ axis, allowing immediate use in CAD environments.

The geometry reflects the original OEM bumper as captured and is intended for reference-based workflows rather than direct manufacture.

Data specifications

Dimensional resolution

Approximately ±0.5 mm

File format

STL mesh

Model orientation

Aligned to the XYZ coordinate system for direct use in CAD software such as Fusion 360 and similar environments.

Scan coverage

The dataset includes:

• Full OEM front bumper geometry
• Grille openings
• Number plate recess and surrounding surfaces
• Lower lip area
• Overall surface transitions and curvature

Only the bumper geometry is included. Adjacent components such as wings, bonnet and lighting have been removed during post-processing.

Mesh condition

The mesh has been cleaned to remove most scanning artefacts whilst maintaining the original captured surface geometry.

Some deeper areas such as internal sections behind openings or tighter recesses may show minor surface noise or reduced detail due to scan limitations. These areas do not affect the dataset when used as reference geometry.

The surface has not been artificially smoothed, preserving the original captured form.

Typical applications

This dataset is intended for workflows such as:

• Development of front lips and splitters
• Designing modified or replacement bumpers
• Reverse engineering and CAD reference
• Integration of ducts or aerodynamic components
• Digital modelling and visualisation

File delivery

After purchase, a download link will be sent via email providing access to the dataset.

The download link is single-use and can only be downloaded once. If the original purchaser loses their files, a replacement download link can be requested at any time.

Usage conditions

The purchaser may use the dataset for internal design work and commercial product development.

However:

• The scan files themselves cannot be redistributed
• The dataset may not be resold, shared or transferred
• Any portion of the scan data may not be published or redistributed

Products developed using this dataset may be manufactured and sold.
