Saab 900 NG / 9-3 OG OEM Boot Spoiler 3D Scan

Source part

OEM Saab boot spoiler – Part Number 46 73 331

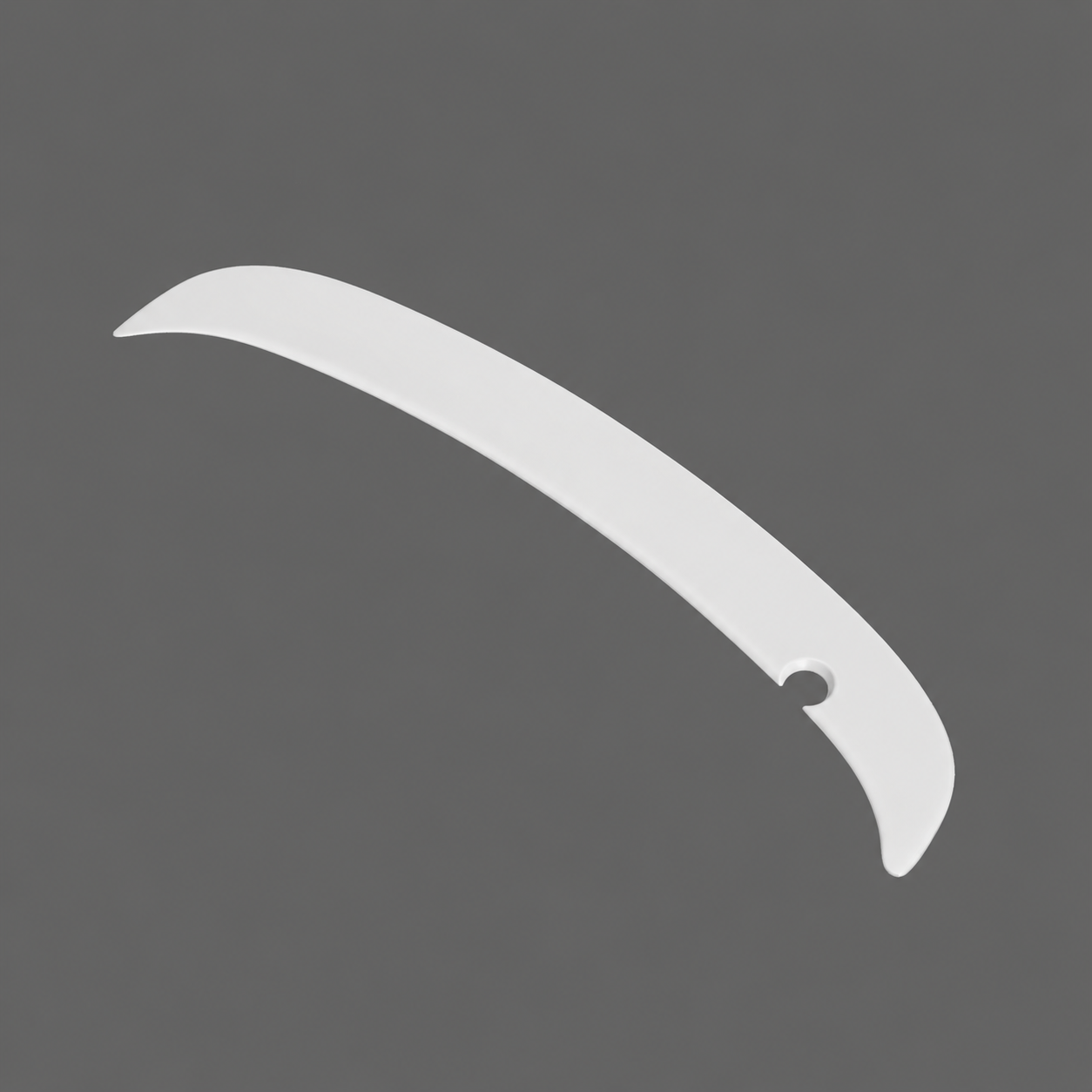

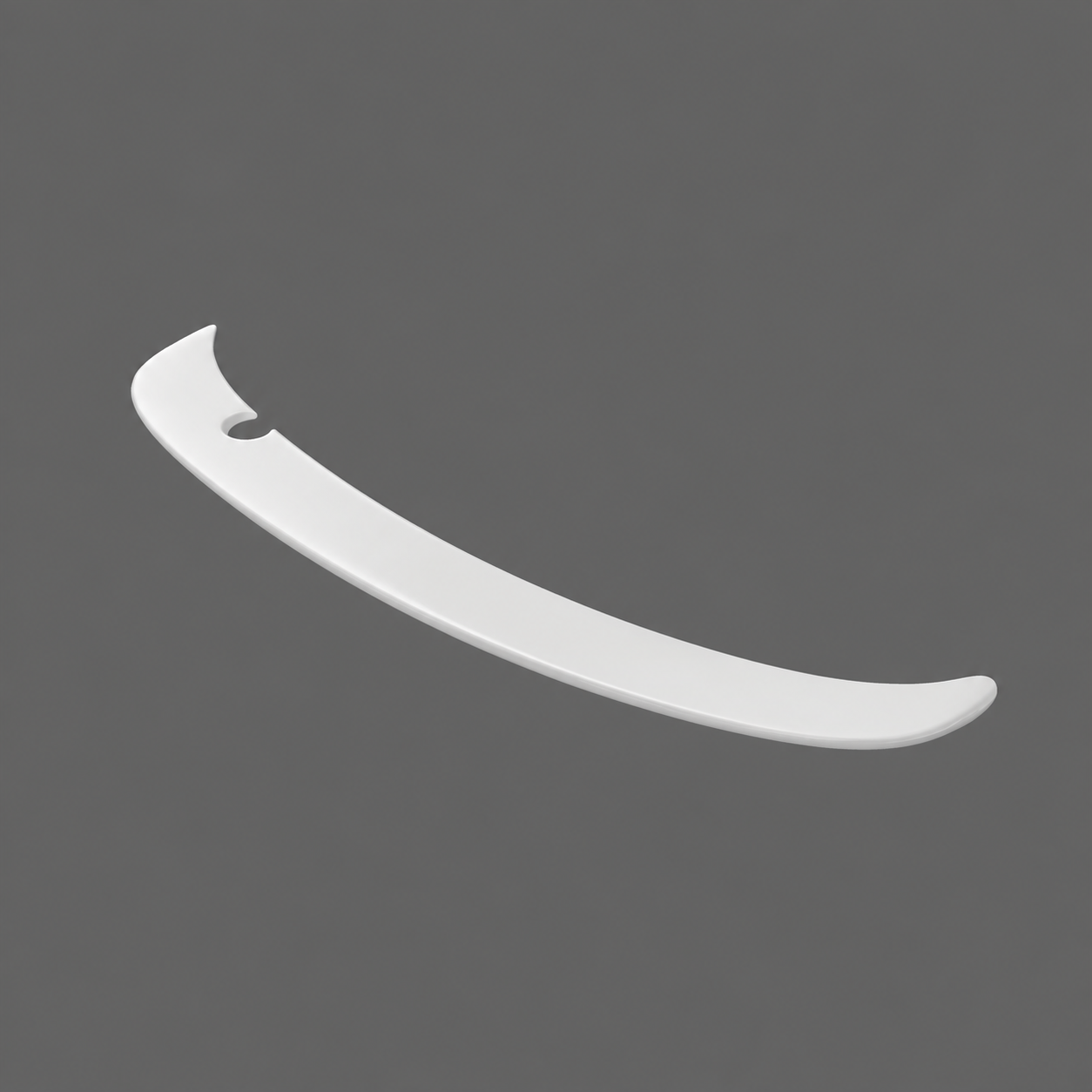

This dataset contains the complete scanned geometry of an OEM Saab boot spoiler, originally removed from a 2002 Saab 9-3 OG 5dr SE.

The spoiler is used across 3dr and 5dr Saab 900 NG and 9-3 OG models, excluding Viggen and Aero models.

Unlike scans captured on the vehicle, the spoiler was completely removed prior to scanning. This allowed the entire part to be captured, including the visible upper surfaces, underside, edges and mounting features.

Dataset overview

The dataset is supplied as STL mesh data and contains approximately 2 million polygons.

The spoiler itself is aligned to the XYZ axis for easier use within CAD environments. Please note that this alignment relates to the spoiler as an individual component and does not represent its installed XYZ position on the vehicle.

The geometry is intended as an accurate development reference for creating aftermarket aero, custom spoilers, replacement components and other designs based around the original Saab part.

Data specifications

Mesh density

Approximately 2 million polygons

Dimensional accuracy

Approximately ±0.25 mm

File format

STL mesh

Model orientation

Aligned to the XYZ coordinate system based on the spoiler itself for easier use in CAD software such as Fusion 360 and similar environments.

The dataset is not positioned or aligned to the vehicle coordinate system.

Scan coverage

The dataset includes:

• Complete visible upper spoiler geometry

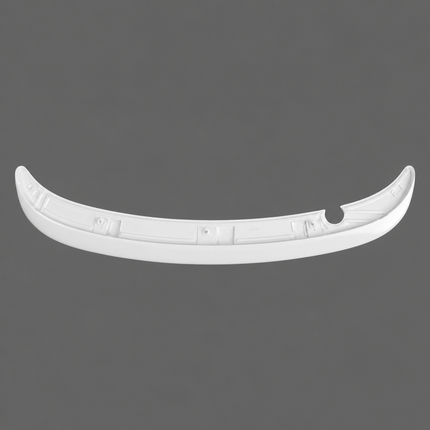

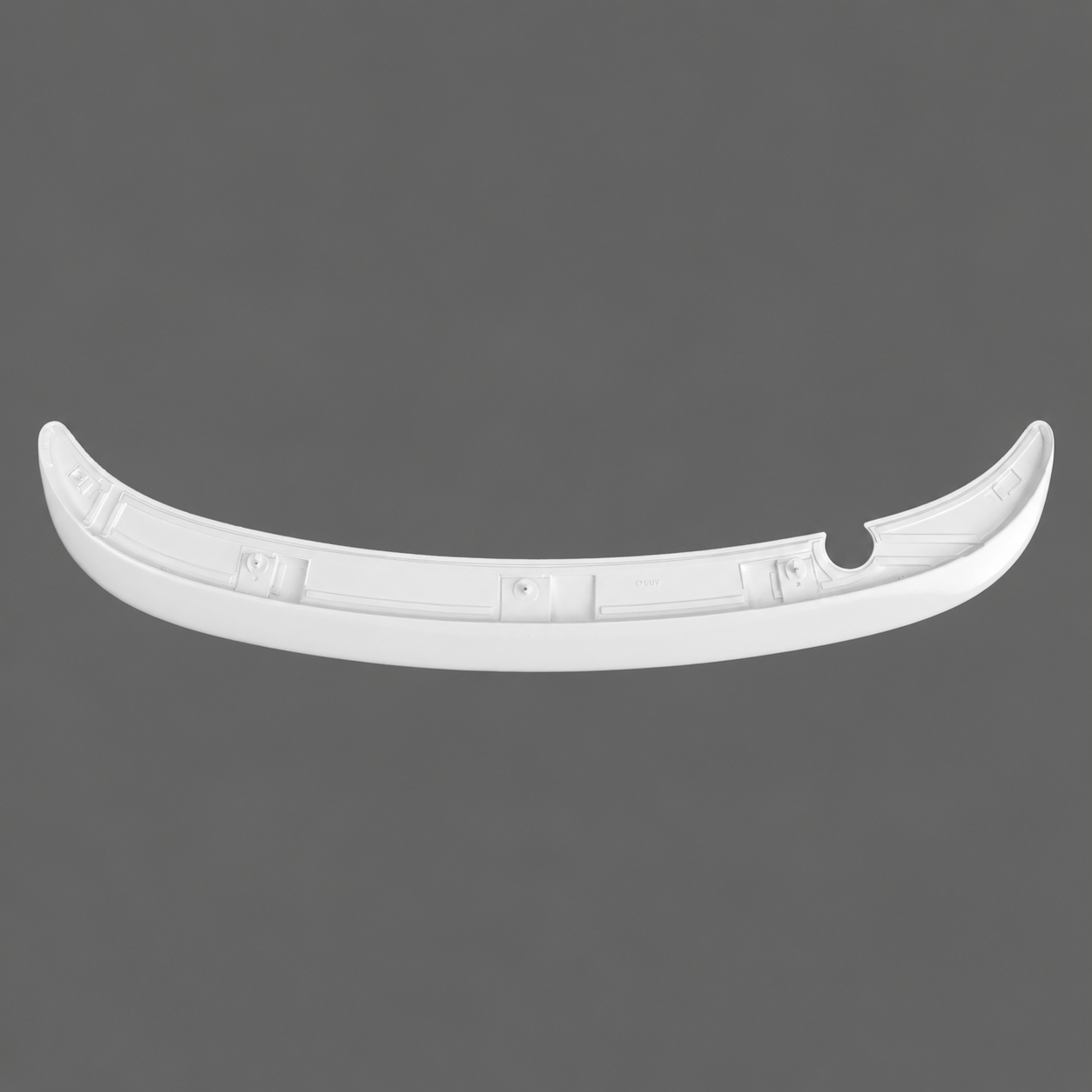

• Complete underside geometry
• Outer edges and perimeter geometry

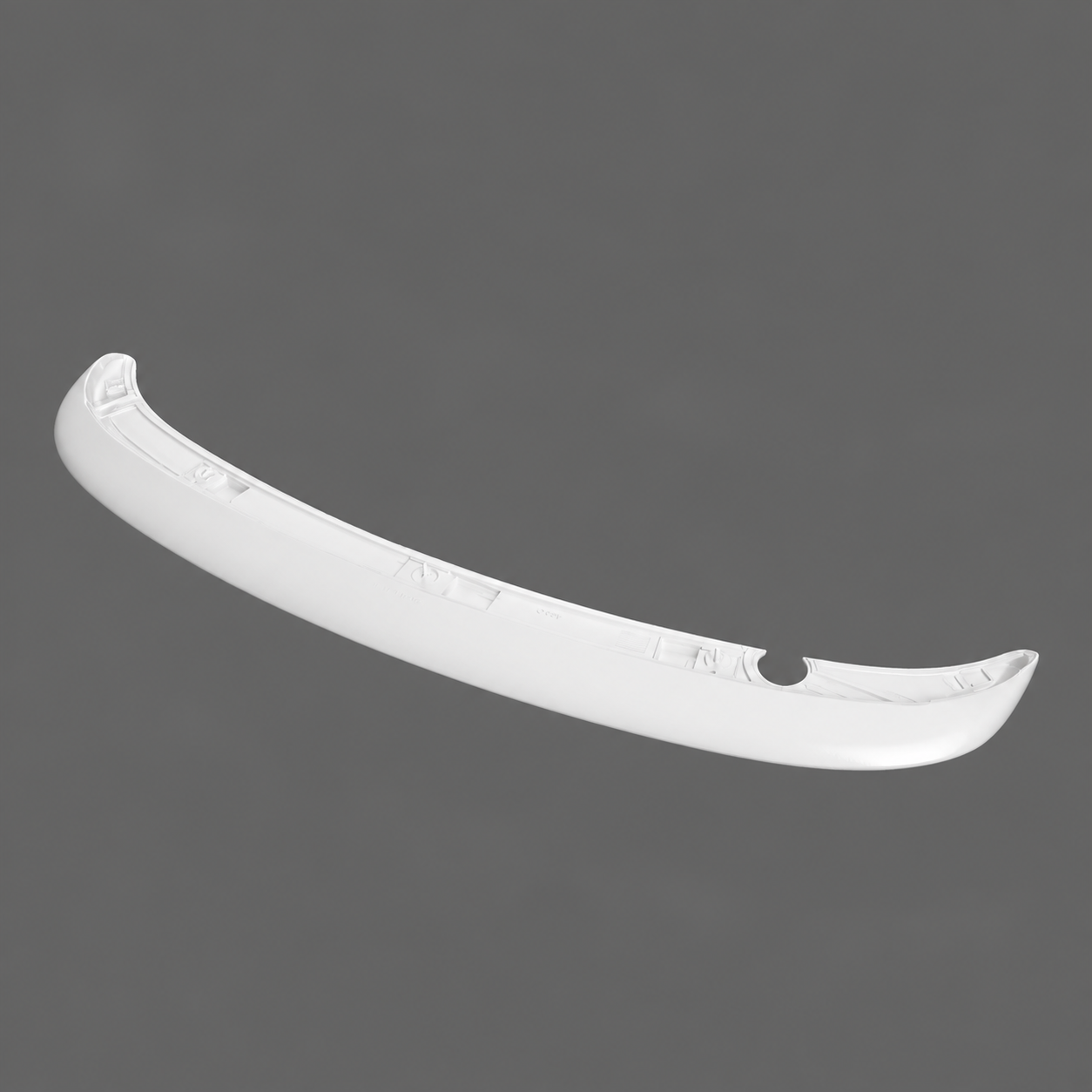

• OEM mounting features
• Mounting stud locations
• Original surface and form detail

As the spoiler was scanned completely removed from the vehicle, the dataset provides all-round reference geometry rather than only the externally visible surfaces.

Mounting stud scan note

The left-most mounting stud was lost during scanning and is not fully present within the final mesh.

The base position of the missing stud remains clearly visible, including a small portion of the stud protruding from the spoiler. The other two mounting studs have been successfully captured and provide suitable reference geometry.

Because of this, the missing stud can be easily recreated in CAD using the remaining studs for geometry reference and the visible base to establish its correct location.

No other areas of the spoiler are known to be missing from the dataset.

Mesh condition

The mesh has been cleaned to remove scanning artefacts whilst retaining important captured surface and component detail.

No artificial smoothing has been applied, helping preserve the original form of the OEM spoiler as captured.

No areas have been deliberately removed, reconstructed or altered from the original scan geometry.

Typical applications

This dataset is intended for workflows such as:

• Custom spoiler and aero development
• Designing spoiler extensions and additional flicks
• Developing alternative aftermarket spoiler designs
• Reproducing or reinterpreting the original spoiler geometry
• Creating moulds, plugs and replacement components
• Reverse engineering and CAD reference
• Designing components around the factory mounting locations
• Digital modelling and visualisation

It is particularly intended to provide a useful starting point for anyone wanting to experiment with more creative aero and custom spoiler designs for the Saab 900 NG and 9-3 OG platform.

Free Saab community release

This dataset is being released completely free by SCHURKEE as a way of giving back to the Saab community and hopefully encouraging more people to design and manufacture aftermarket parts for these cars.

Aftermarket development for the 900 NG and 9-3 OG is relatively niche, so rather than keeping this scan behind a paywall, we would rather make the geometry accessible to other owners, designers and builders who want to create something with it.

Whether that means designing a subtle OEM+ spoiler extension, completely new aero or using the factory mounting geometry as the starting point for something different, the aim is simply to make development for these cars easier and hopefully see some more interesting Saab parts come out of it.

File delivery

This dataset is free of charge.

Add the scan to your basket and complete the £0 checkout as normal. A download link will then be sent to the email address provided during checkout.

Unlike our standard paid scan datasets, the download link for this free release allows unlimited downloads.
