Description

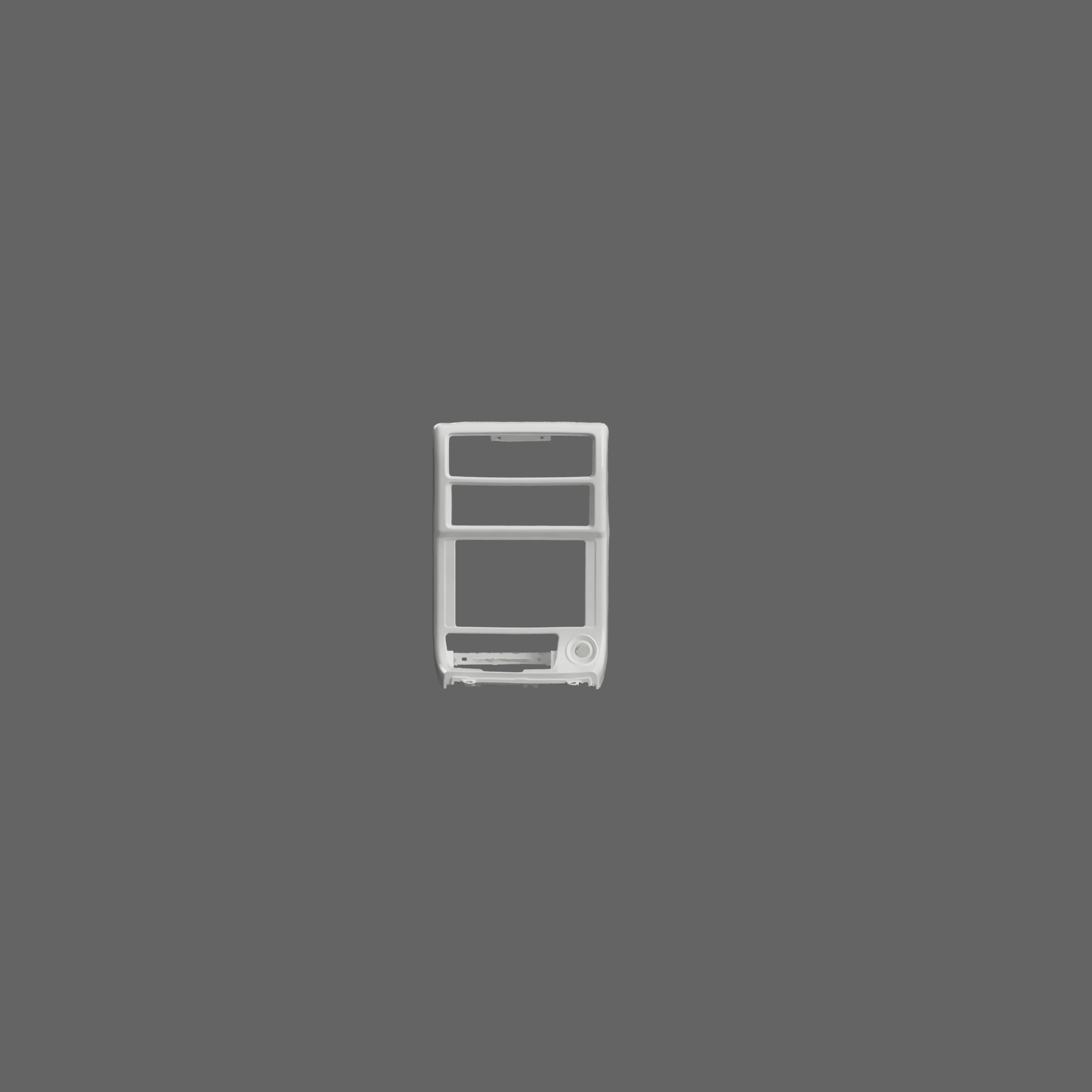

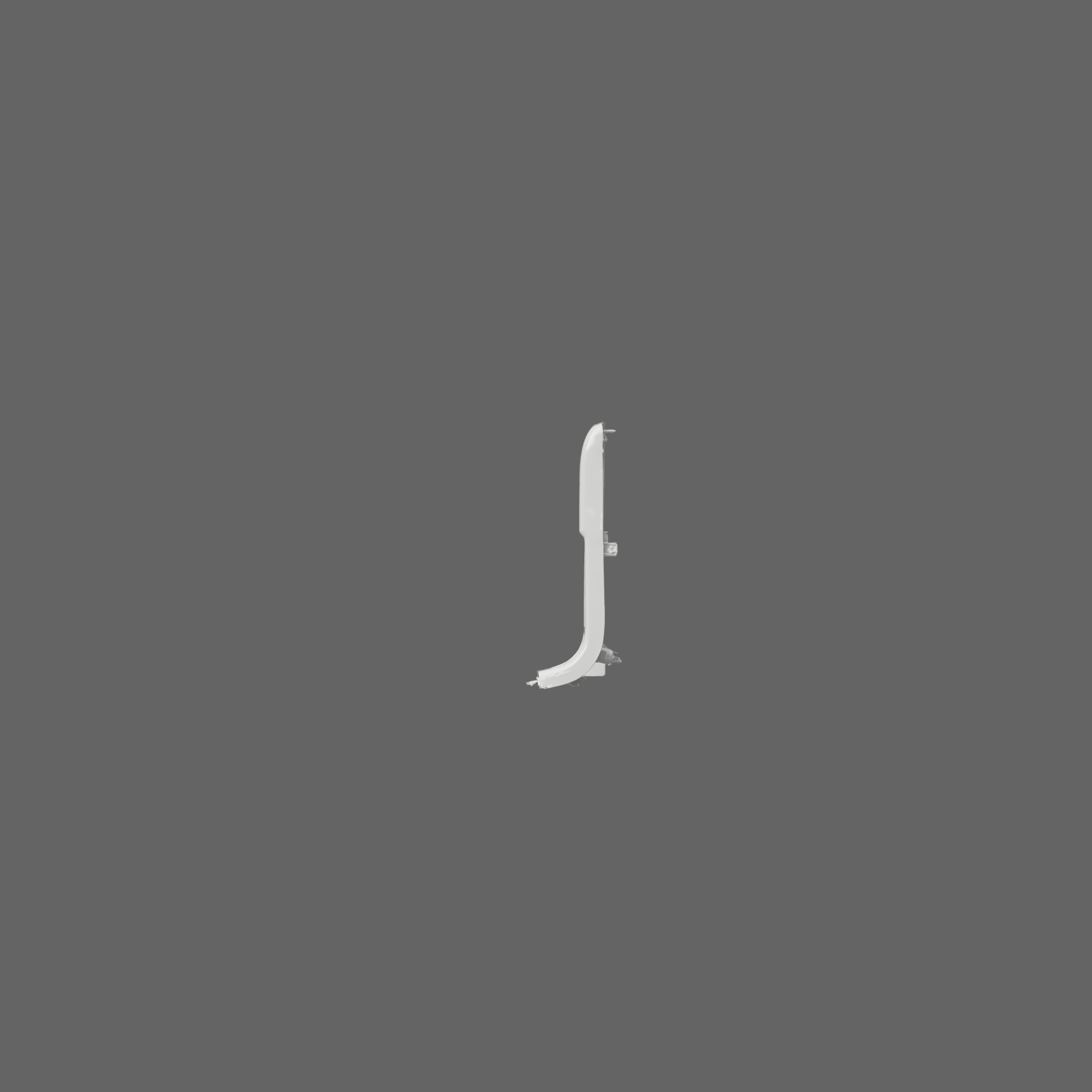

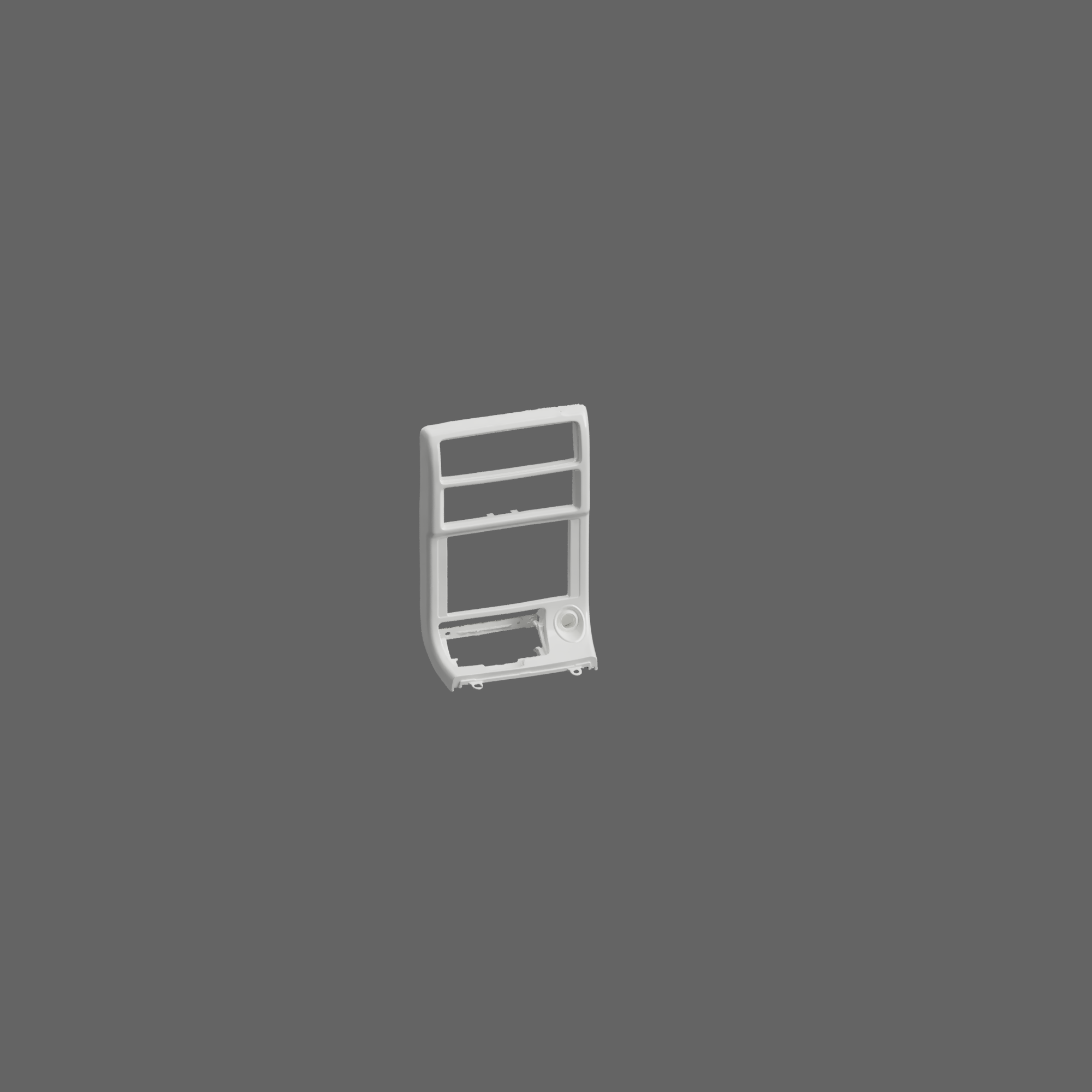

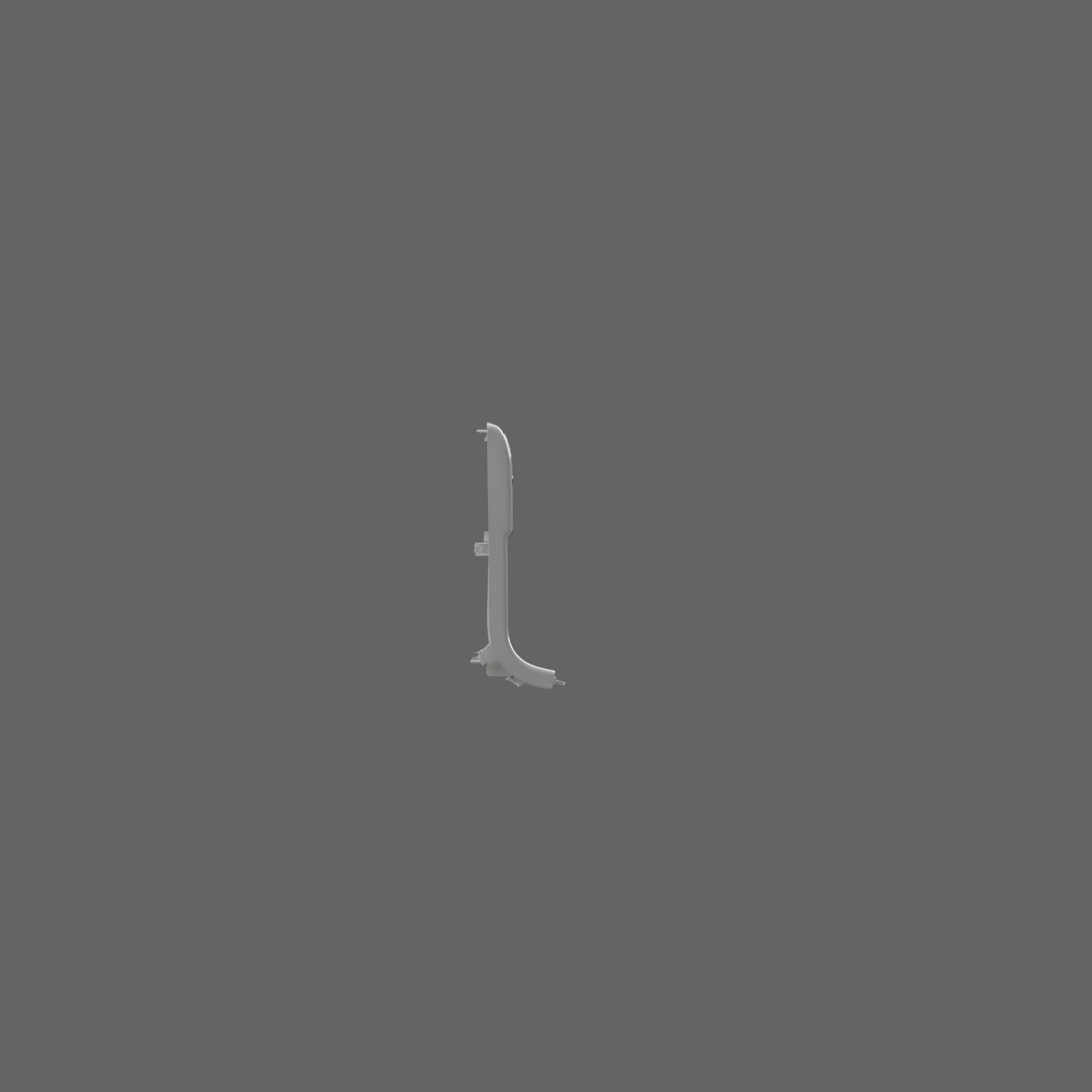

Mazda RX-7 FC3S Centre Console Panel 3D Scan

Source part

Mazda RX-7 FC3S - centre console panel

This dataset contains surface geometry of the full centre console panel from a Mazda RX-7 FC3S. The part was scanned as a standalone component removed from the vehicle and is intended as a reference model for interior development and modification work.

Dataset overview

The dataset is supplied as a single STL file representing the complete centre console panel.

All non-essential components have been removed, with only the cigarette lighter backing retained. This allows clear access to the core geometry of the panel for measurement, modelling and design work.

The model is aligned to the XYZ axis, allowing immediate use in CAD environments.

Data specifications

Dimensional resolution

Approximately ±0.5 mm

File format

STL mesh

Model orientation

Aligned to the XYZ coordinate system for direct use in CAD software such as Fusion 360 and similar environments.

Scan coverage

The dataset includes:

• Full centre console panel geometry
• Exterior surfaces and panel layout
• Openings for switches and controls
• Overall form and proportions

The scan represents the panel as removed from the vehicle and is intended for reference-based workflows.

Mesh condition

The mesh has been cleaned to remove most scanning artefacts while maintaining the original captured surface geometry.

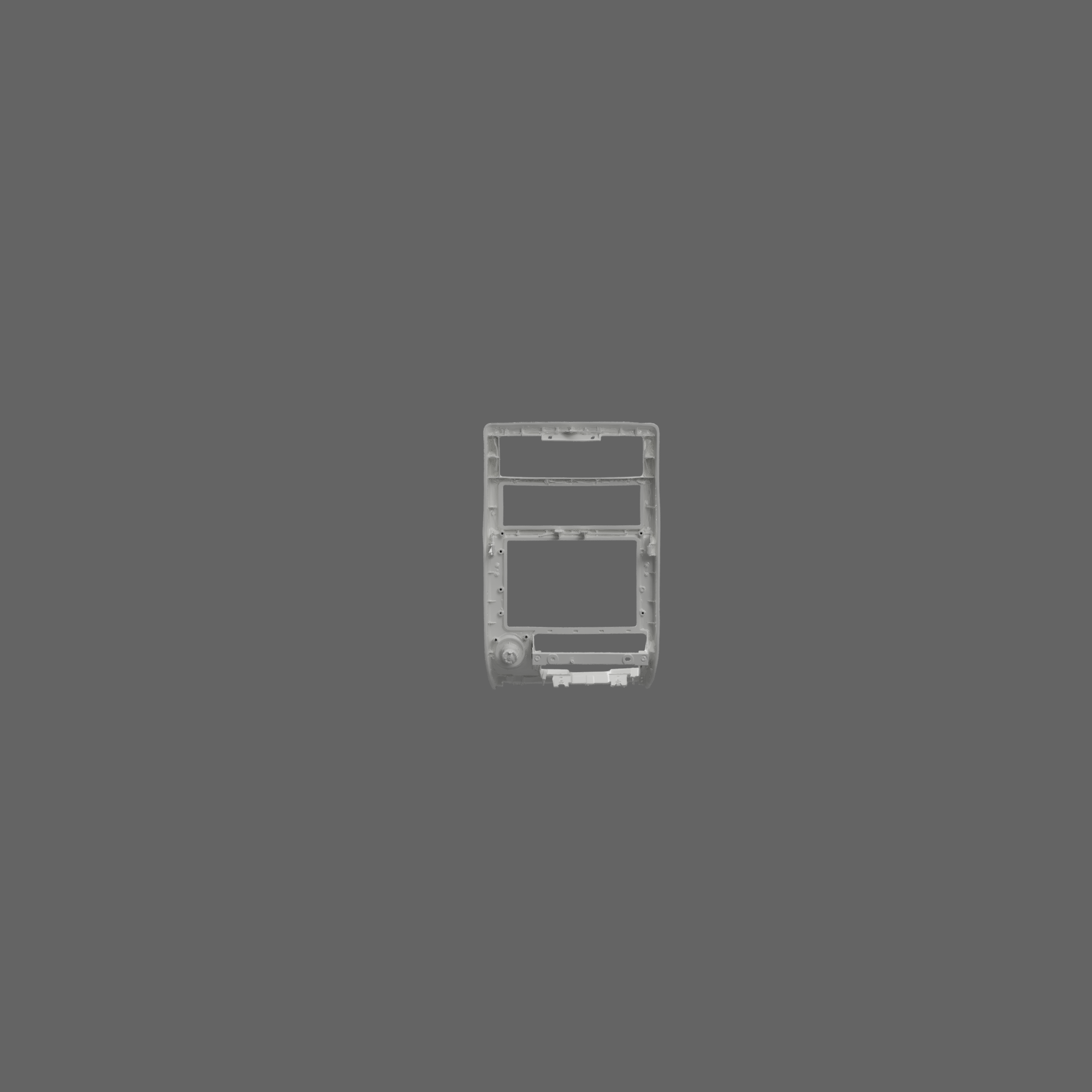

Some areas on the rear side of the panel contain incomplete data due to the nature of the original part. OEM rubber sections and tight tolerances in smaller holes limit scan visibility, and a small number of areas around the ash tray support structure are not fully captured. Certain mounting holes may also show reduced detail.

These areas are not critical for typical use cases and do not affect the dataset when used as reference geometry.

Typical applications

This dataset is intended for workflows such as:

• Reverse engineering and measurement reference
• Development of custom centre console layouts
• Integration of switches, controls or displays
• Interior modification and prototyping
• Digital modelling and visualisation

File delivery

After purchase, a download link will be sent via email providing access to the dataset.

The download link is single-use and can only be downloaded once, helping reduce the risk of redistribution.

If the original purchaser loses their files, a replacement download link can be requested at any time.

Usage conditions

The purchaser may use the dataset for internal design work and commercial product development.

However:

• The scan files themselves cannot be redistributed
• The dataset may not be resold, shared or transferred
• Any portion of the scan data may not be published or redistributed

Products developed using this dataset may be manufactured and sold.
