Description

Mazda RX-7 FC3S 3D Scan Exterior 3D Scan

Source Vehicle: 1989 Mazda RX-7 Turbo II Coupe — Series 5 (Japanese Import)

This 3D scan data contains exterior surface geometry captured from a Japanese-market 1989 Turbo II FC3S. The data was originally recorded during development work for SCHURKEE products and is intended as a dimensional reference for engineering, design, and digital modelling workflows.

Dataset Overview

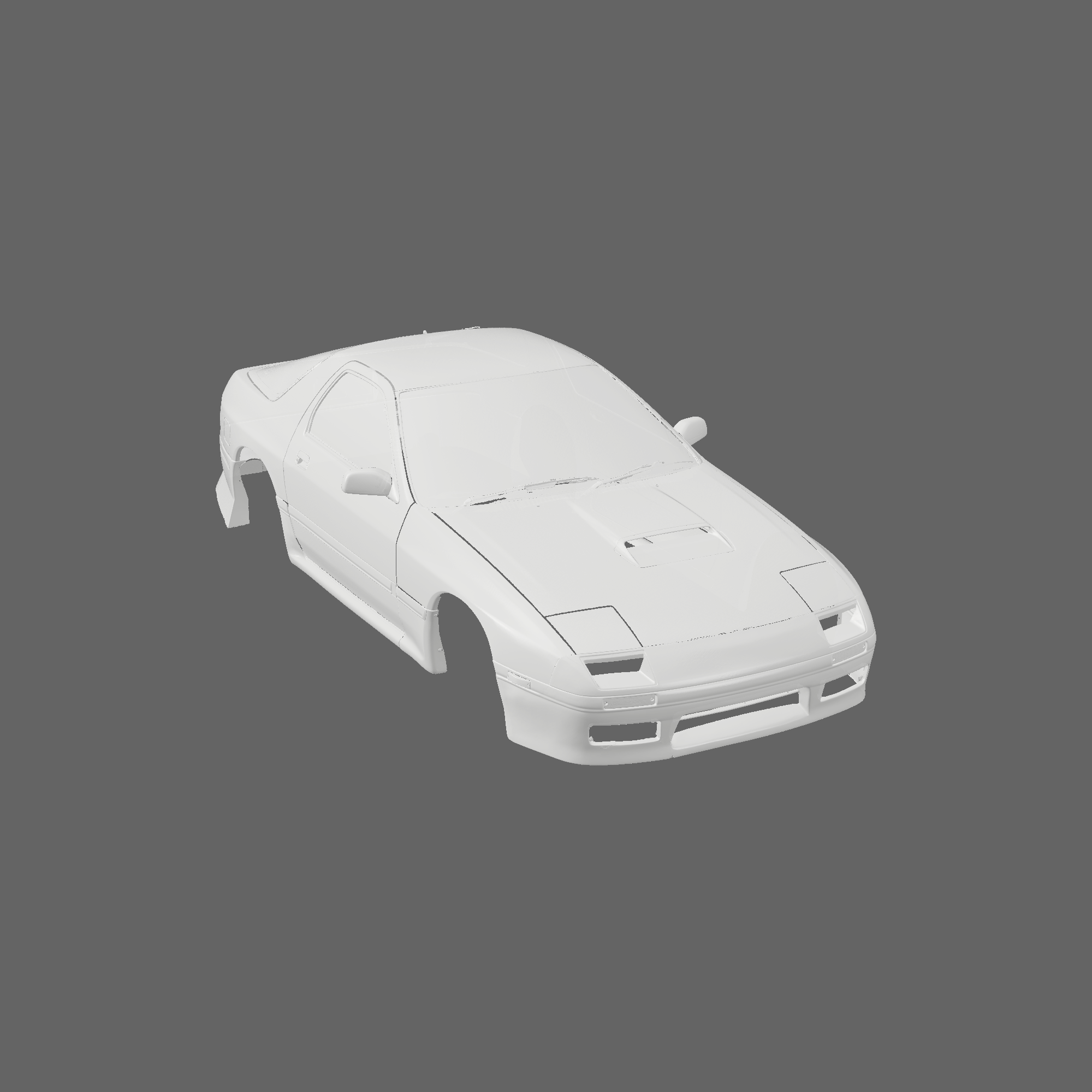

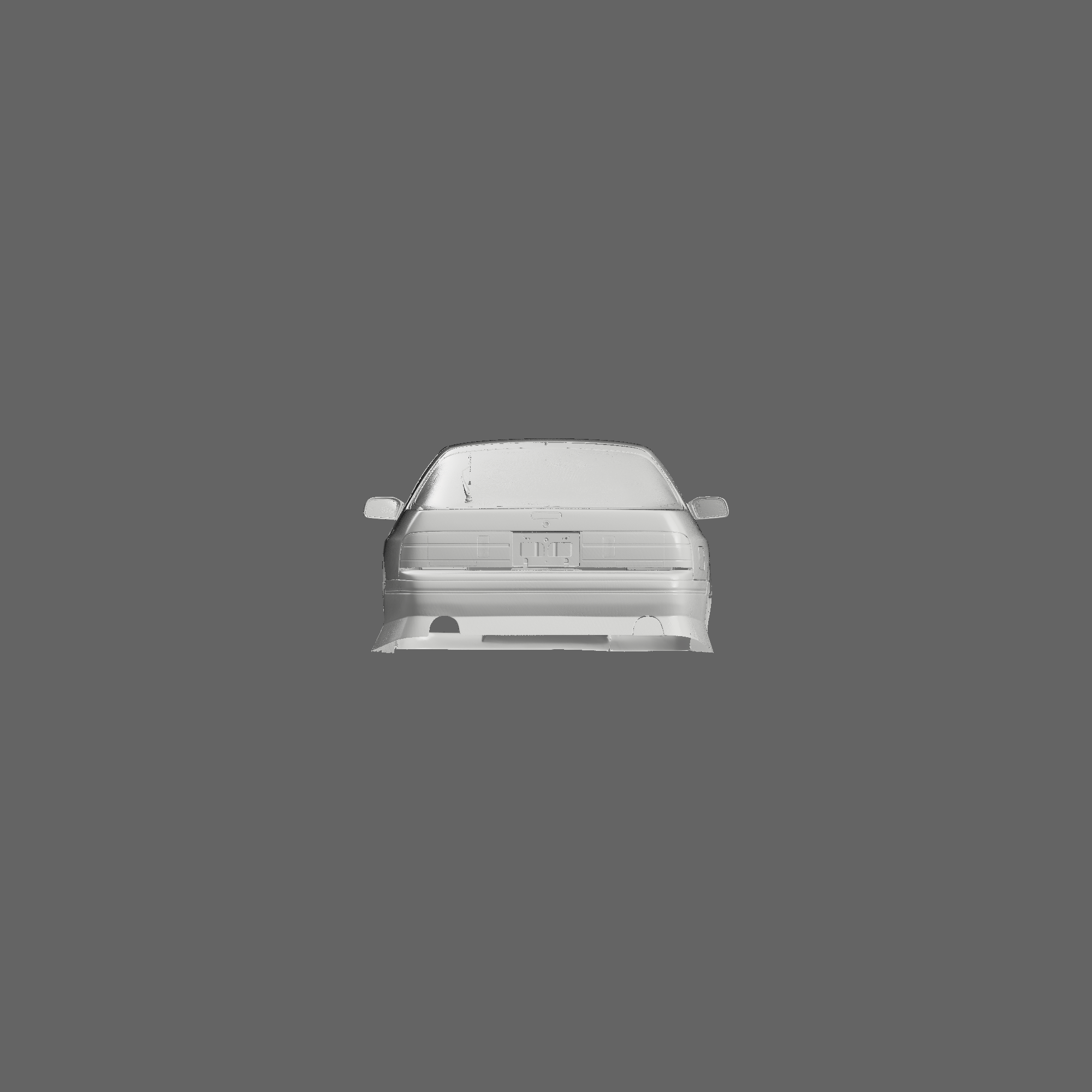

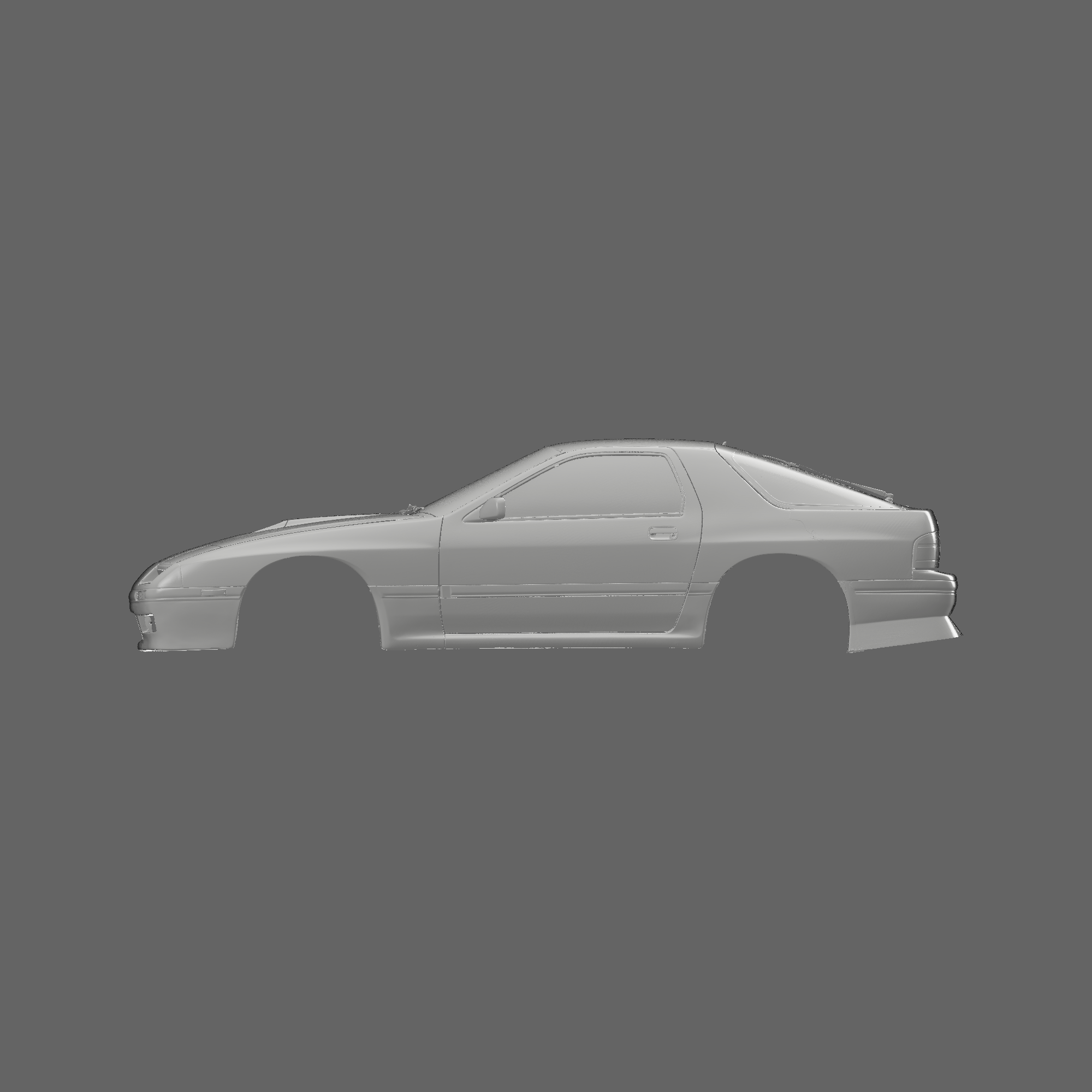

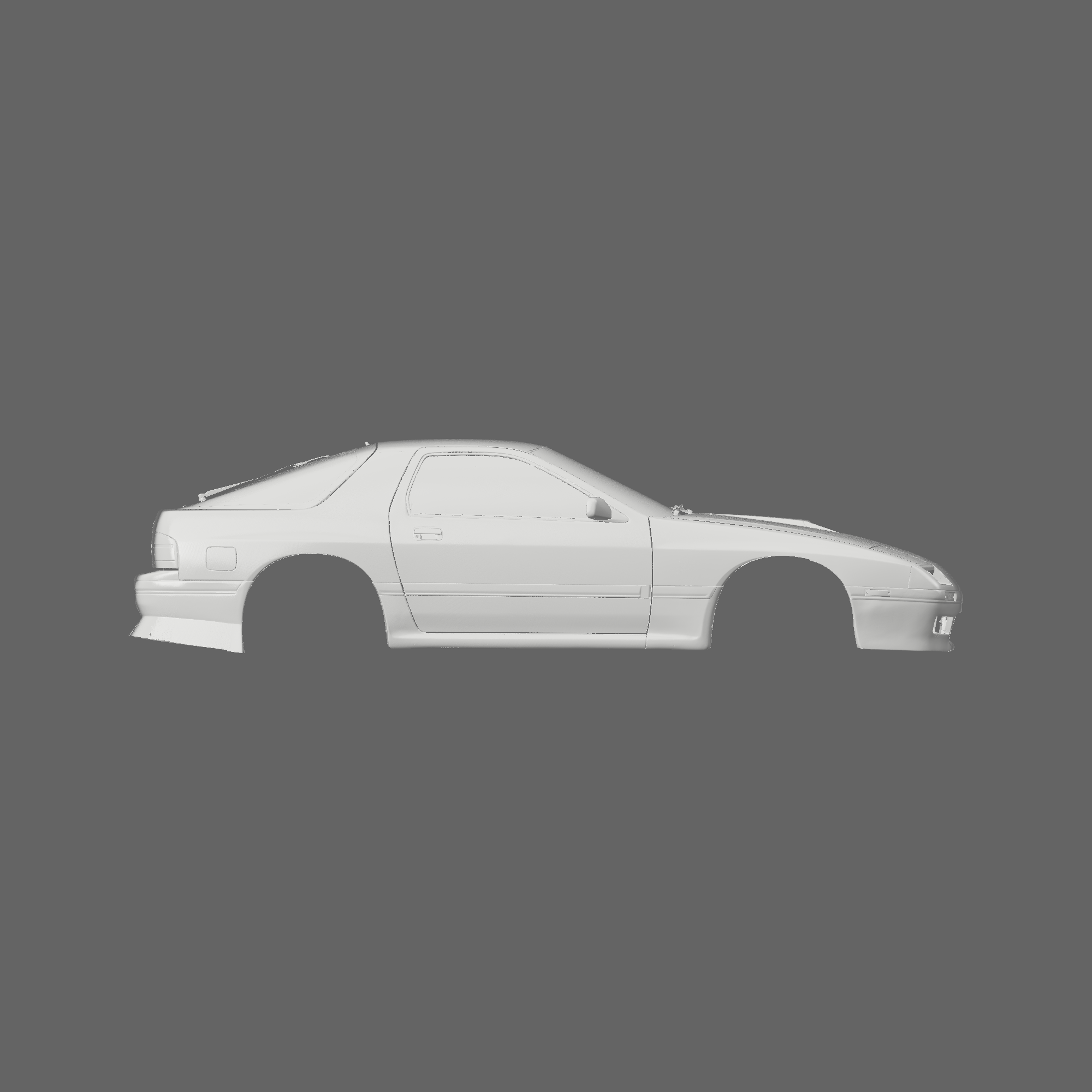

The scan represents the exterior body surfaces of the vehicle and includes:

Front bumper
Front arches
Turbo 2 Bonnet
Doors
Roof
Rear quarter panels
Rear bumper
Rear glass hatch
Front windscreen

The vehicle was not fully stock at the time of scanning. It was fitted with the following aftermarket components:

Yours Sports front bumper
BN Sports rear bumper

These parts are captured exactly as they existed on the vehicle and should not be interpreted as factory Mazda geometry.

Data Specifications

Mesh Density
Approximately 10 million polygons for the complete vehicle mesh.

Dimensional Resolution
Approximately ±0.5 mm.

File Format
STL mesh.

Model Orientation
The dataset is aligned to the XYZ coordinate system, allowing direct import into CAD software such as Fusion 360 and other engineering environments.

Mesh Condition

The mesh has been processed to remove most capture artefacts while preserving the original recorded surface detail.

Some areas may show minor texture variation caused by scan overlap or lighting differences during capture. These areas are cosmetic and do not affect the usefulness of the data when used as reference geometry.

The surface has not been artificially smoothed, maintaining the original captured geometry.

Typical Applications

The dataset can be used for workflows such as:

• Development of exterior components (lips, bumpers, overfenders, extensions)
• Recreating or redesigning factory body panels
• Reverse-engineering vehicle surfaces in CAD
• Digital modelling for rendering, games, or visualisation
• Studying vehicle proportions and exterior design language

File Delivery

After purchase, a download link will be sent via email providing access to the dataset.

The download link is single-use and can only be downloaded once, which helps reduce the likelihood of files being redistributed.

If the original purchaser loses their copy of the files, they may request a replacement download link at any time.

Usage Conditions

The purchaser may use the dataset for internal design work and commercial product development.

However:

• The scan files themselves cannot be redistributed.
• The dataset may not be resold, shared, or transferred.
• Any portion of the scan data may not be published or redistributed.

Products developed using this dataset may be manufactured and sold.

Mazda RX-7 FC3S Exterior 3D Scan

High-precision 3D scan data captured from a 1989 Mazda RX-7 Turbo II Coupe (Japanese import, Series 5). This dataset provides accurate exterior surface geometry for engineering, design, and digital modelling work.

What's Included

Complete exterior coverage: front and rear bumpers, arches, bonnet, doors, roof, quarter panels, rear glass hatch, and windscreen. The vehicle featured Yours Sports front and BN Sports rear bumpers at time of scanning—these aftermarket components are captured as-is and should not be treated as factory geometry.

Technical Specifications

Approximately 10 million polygons with ±0.5 mm dimensional accuracy. Delivered as STL mesh, pre-aligned to XYZ coordinates for direct import into CAD software including Fusion 360. The mesh preserves original captured detail without artificial smoothing, though minor texture variations from scan overlap are present and cosmetic only.

Typical Uses

Develop exterior components, recreate body panels, reverse-engineer surfaces, create digital models for rendering or games, and study vehicle proportions and design language.

Licensing

Single-use download link provided via email after purchase. Licensed for internal design work and commercial product development. Files cannot be redistributed, resold, or shared, but products developed using this data may be manufactured and sold. Replacement download links available upon request.
