Description

Honda Civic Type R FN2 Exterior 3D Scan

Source Vehicle: 2008 Honda Civic Type R GT FN2 (UKDM)

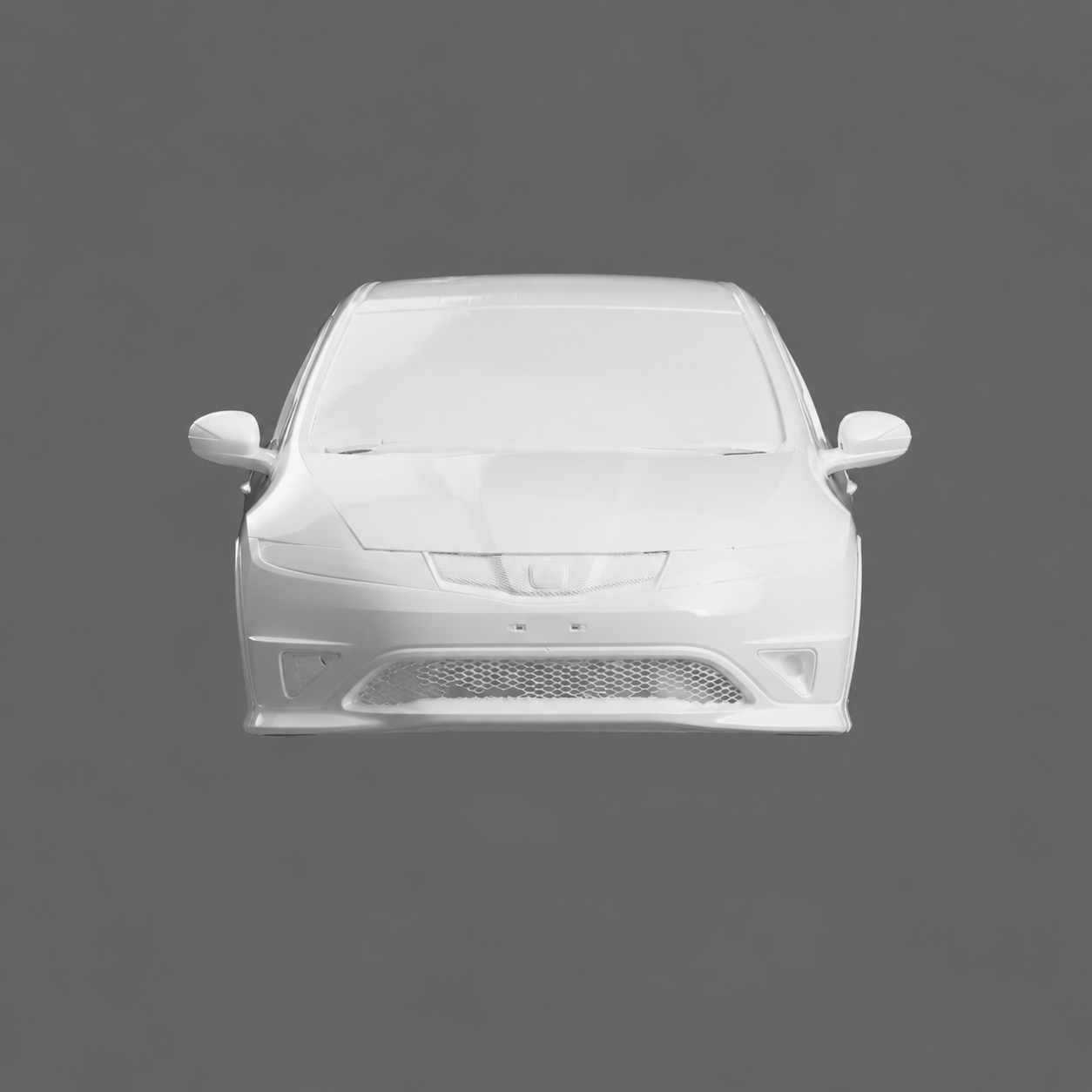

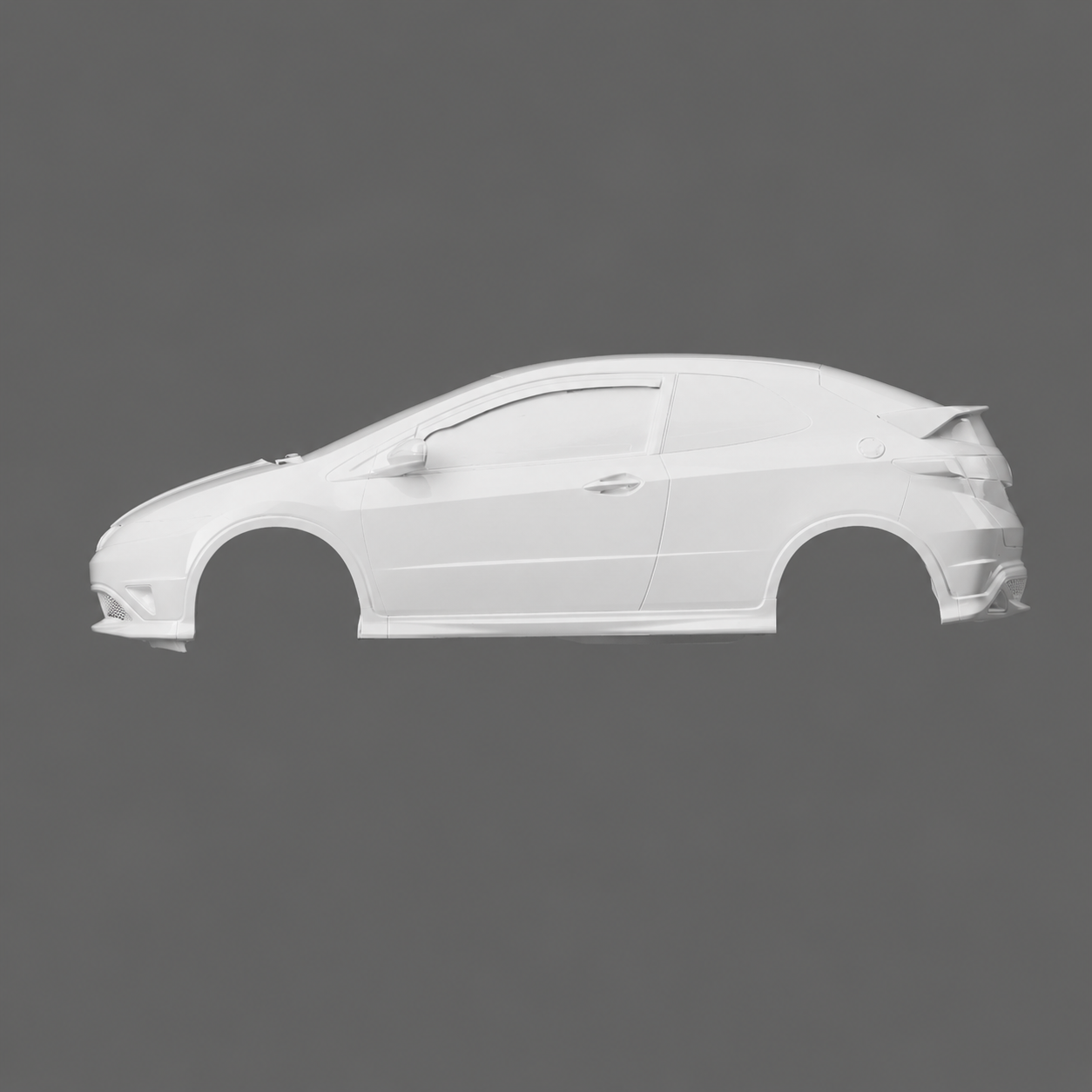

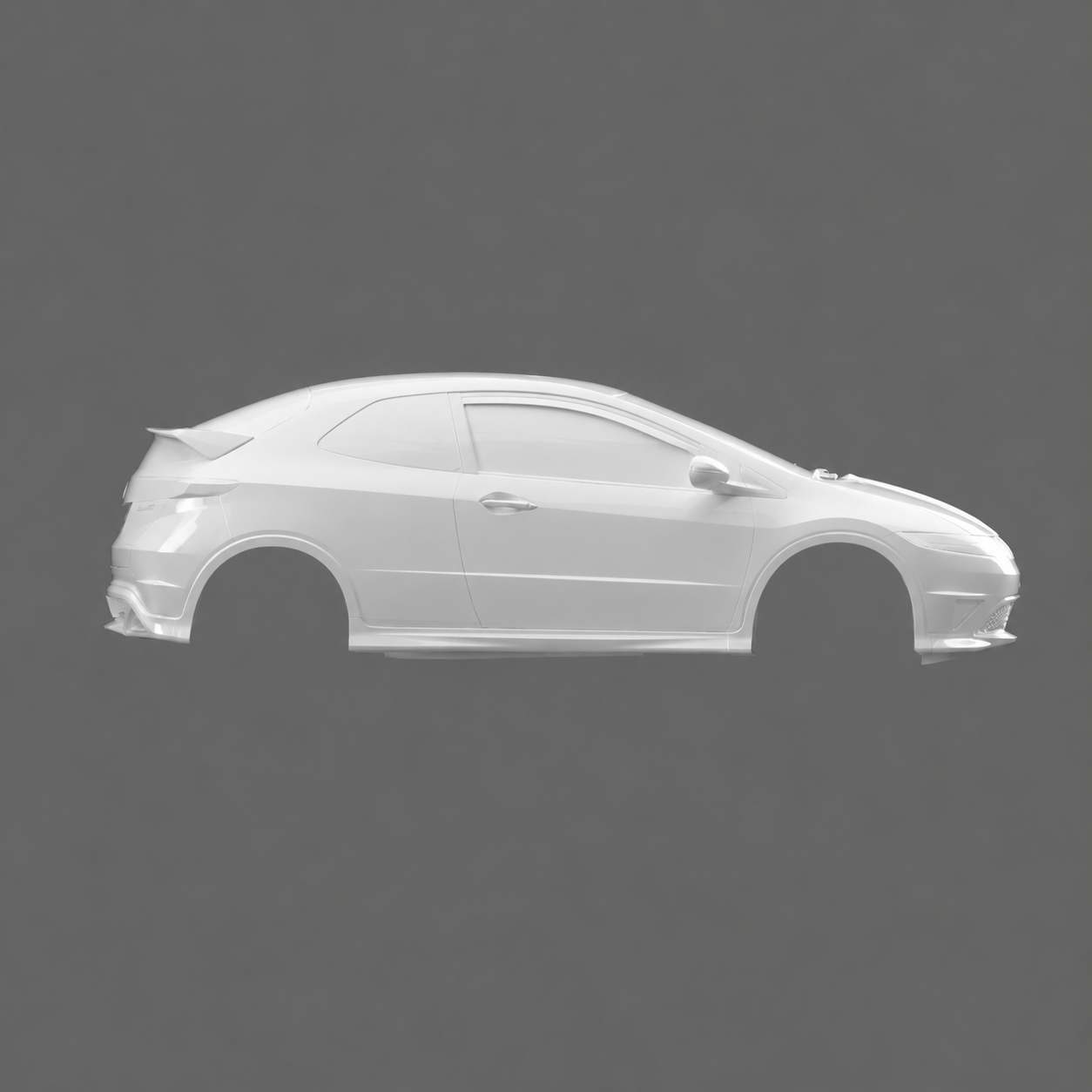

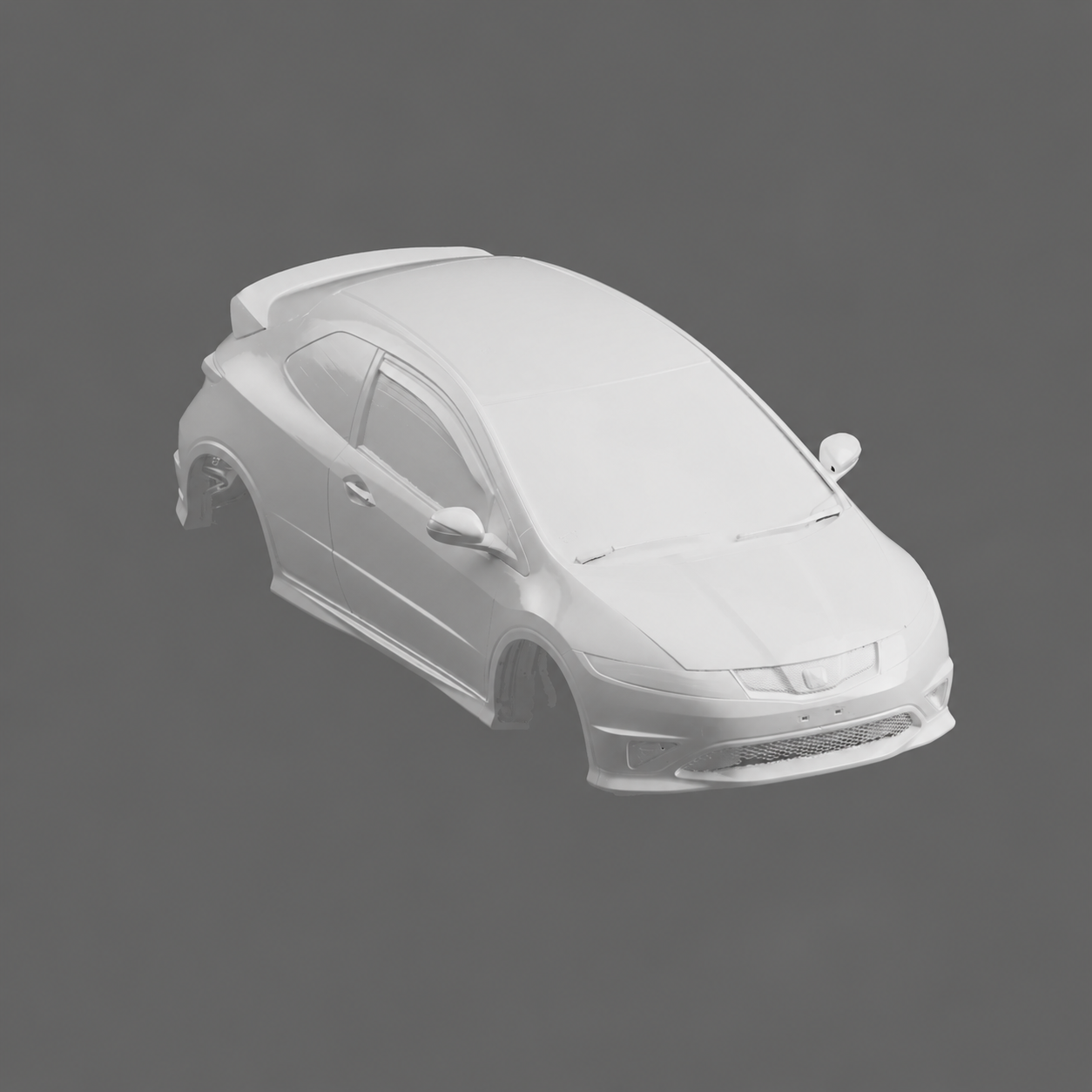

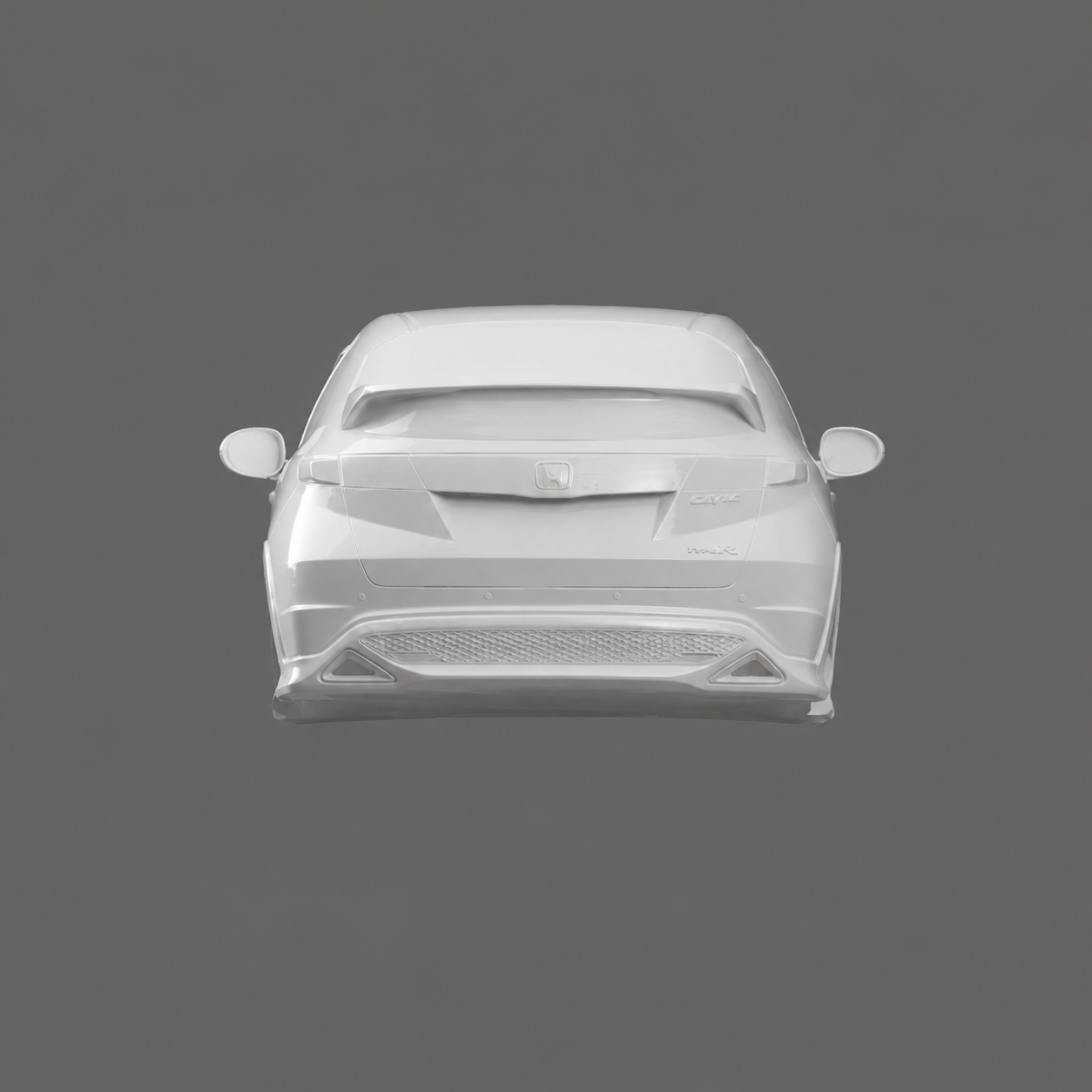

This 3D scan dataset contains exterior surface geometry captured from a UK-market 2008 Honda Civic Type R GT FN2. The data has been captured and processed as a dimensional reference for engineering, product development, design and digital modelling workflows.

The dataset covers the complete exterior of the vehicle, excluding the wheels, and has been prepared as a workable high-density mesh for use within CAD and 3D modelling environments.

Dataset Overview

The scan represents the exterior body surfaces of the vehicle and includes:

• Front bumper, including visible underside geometry
• Front wings and arches
• Bonnet
• Doors
• Wing mirrors
• Roof
• Rear quarter panels
• Rear bumper, including visible underside geometry
• Type R rear spoiler
• Side and rear glass
• Front windscreen
• Exterior trim and surrounding body geometry

The wheels are not included within the dataset and no underbody geometry is provided beyond the visible underside of the front and rear bumpers.

The vehicle was not completely stock at the time of scanning. The following aftermarket components are present within the dataset:

• HEKO wind deflectors
• Black wing mirror indicator lenses
• Tegiwa passenger-side intake scoop in place of the original fog light

These components are captured as they were fitted to the vehicle and should not be interpreted as original Honda geometry.

Data Specifications

Mesh Density
Approximately 10 million polygons for the complete vehicle mesh.

Dimensional Resolution
Approximately ±0.5 mm.

File Format
STL mesh.

Model Orientation
The dataset is aligned to the XYZ coordinate system, allowing direct import into CAD software such as Fusion 360 and other engineering and modelling environments.

Vehicle History

As with all of our vehicle scans, the data is captured from a real, used example of the car rather than an idealised CAD model. Unless specifically stated, the complete history of the source vehicle may not be known, and normal age, previous repairs and minor differences in panel alignment should always be considered when working from real-world scan data.

Note for this vehicle: The source FN2 has previously been involved in a minor front-end impact and subsequently repaired. As a result, there are some small differences in panel alignment around the front of the vehicle, most notably around the bonnet and driver's side headlight.

These differences are minor and do not prevent the dataset from being used for its intended design, modelling and reference applications. They are simply worth considering when referencing very precise panel gaps or relationships between individual front-end components.

Mesh Condition

The mesh has been post-processed to remove unwanted surrounding data whilst retaining the original captured surface geometry.

There are a small number of areas where scan coverage is naturally reduced. These include the inner areas of the wing mirrors, small sections of glass behind the HEKO wind deflectors and portions of the mesh grilles. The roof may also display some minor surface noise. These areas are limited and do not affect the dataset's typical use as reference geometry.

For this dataset, thin scanning tape was used across selected areas of the vehicle to improve surface tracking during capture. The tape introduces only a minimal additional surface thickness relative to the overall dimensional resolution of the dataset and does not meaningfully affect its intended use as reference geometry.

This method reduces the preparation and post-processing time involved in capturing difficult surfaces, allowing the dataset to be offered at a lower cost whilst retaining useful dimensional data.

As with any 3D scan, components developed from the dataset should not be expected to be immediately production-ready solely from the captured geometry. Appropriate tolerances, clearances, manufacturing requirements and physical fitment should always be considered and verified during the design process.

The scan data has not been artificially smoothed, preserving the original captured geometry.

Typical Applications

The dataset can be used for workflows such as:

• Development of exterior components, including lips, splitters, extensions and body kits
• Designing replacement or modified exterior panels
• Development of rear window louvres and glass-mounted exterior components
• Reverse engineering vehicle surfaces in CAD
• Aero and exterior product development
• Digital modelling for rendering, games or visualisation
• Studying vehicle proportions and exterior design language
• General measurement and reference work

The dataset can also be used as a starting point for other projects where accurate reference geometry of the FN2 exterior is required.

Model Years

The Honda Civic Type R FN2 was produced from 2007 to 2011. This dataset was specifically captured from a 2008 UKDM Type R GT, and users should confirm any relevant model-year or specification differences for their intended application.

File Delivery

After purchase, a download link will be sent via email providing access to the dataset.

The download link is single-use and can only be downloaded once, which helps reduce the likelihood of files being redistributed.

If the original purchaser loses their copy of the files, they may request a replacement download link at any time.

Usage Conditions

The purchaser may use the dataset for internal design work and commercial product development.

However:

• The scan files themselves cannot be redistributed.
• The dataset may not be resold, shared or transferred.
• Any portion of the scan data may not be published or redistributed.

Products developed using this dataset may be manufactured and sold.

Honda Civic Type R FN2 Exterior 3D Scan

High-density 3D scan data captured from a 2008 UKDM Honda Civic Type R GT FN2. This dataset provides exterior surface geometry for engineering, product development, reverse engineering and digital modelling work.

What's Included

Complete exterior coverage excluding the wheels, including the front and rear bumpers with visible underside geometry, bonnet, wings, arches, doors, roof, mirrors, rear spoiler, quarter panels and exterior glass. The scanned vehicle features HEKO wind deflectors, black wing mirror indicator lenses and a Tegiwa passenger-side intake scoop, which are represented as fitted during capture.

Technical Specifications

Approximately 10 million polygons with ±0.5 mm dimensional resolution. Delivered as an STL mesh, pre-aligned to XYZ coordinates for direct import into CAD software including Fusion 360. Minor areas of reduced scan coverage are present around the inner wing mirrors, mesh grilles and behind the wind deflectors, with some light surface noise on the roof.

Thin scanning tape was used on selected surfaces to improve tracking during capture. Its thickness is minimal relative to the intended accuracy of the scan and does not meaningfully affect its use as reference geometry. This method also reduces the preparation and processing time involved, helping keep the dataset more affordable.

Vehicle History

Our scans are taken from real, used vehicles, so minor differences from ideal factory geometry should always be expected. This particular FN2 has previously had a minor front-end repair, leaving some small differences in alignment around the bonnet and driver's side headlight. These do not prevent normal use of the scan but should be kept in mind when referencing particularly precise panel gaps or relationships between front-end components.

As with any scanned reference data, parts developed from the mesh should be designed with appropriate tolerances and physically verified before final manufacture.

Typical Uses

Develop exterior components such as body kits, design splitters, aero, window louvres and so on. Reverse engineer body surfaces, produce digital models or use the vehicle geometry as a dimensional reference for your own projects.

Licensing

A single-use download link is provided via email after purchase. Licensed for internal design work and commercial product development. Files cannot be redistributed, resold or shared, but physical products developed using the data may be manufactured and sold. Replacement download links are available to the original purchaser upon request.
