Description

Daihatsu Copen L880K Upper Dash Cubby / Clock (3D Model/Reverse Engineered CAD)

Source part

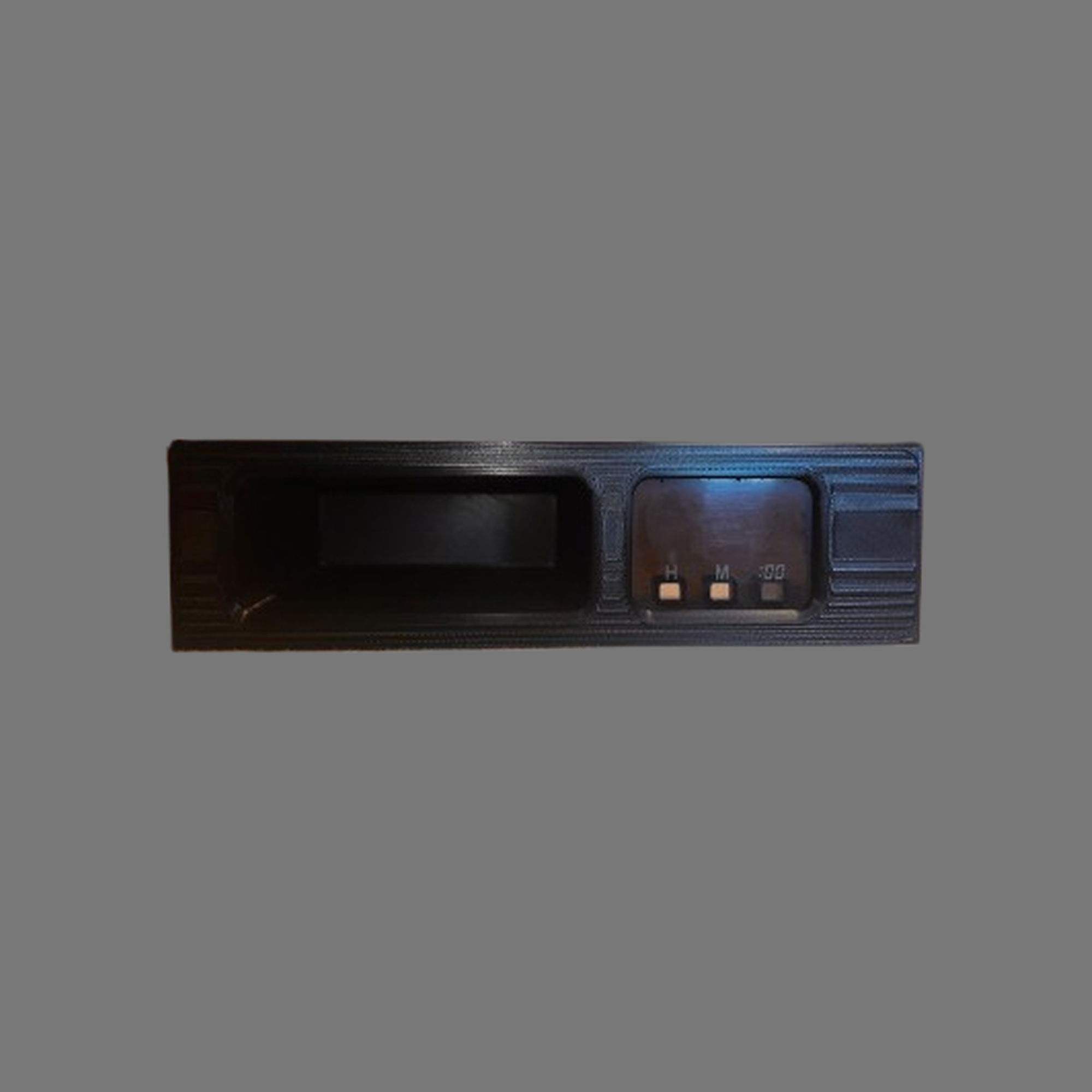

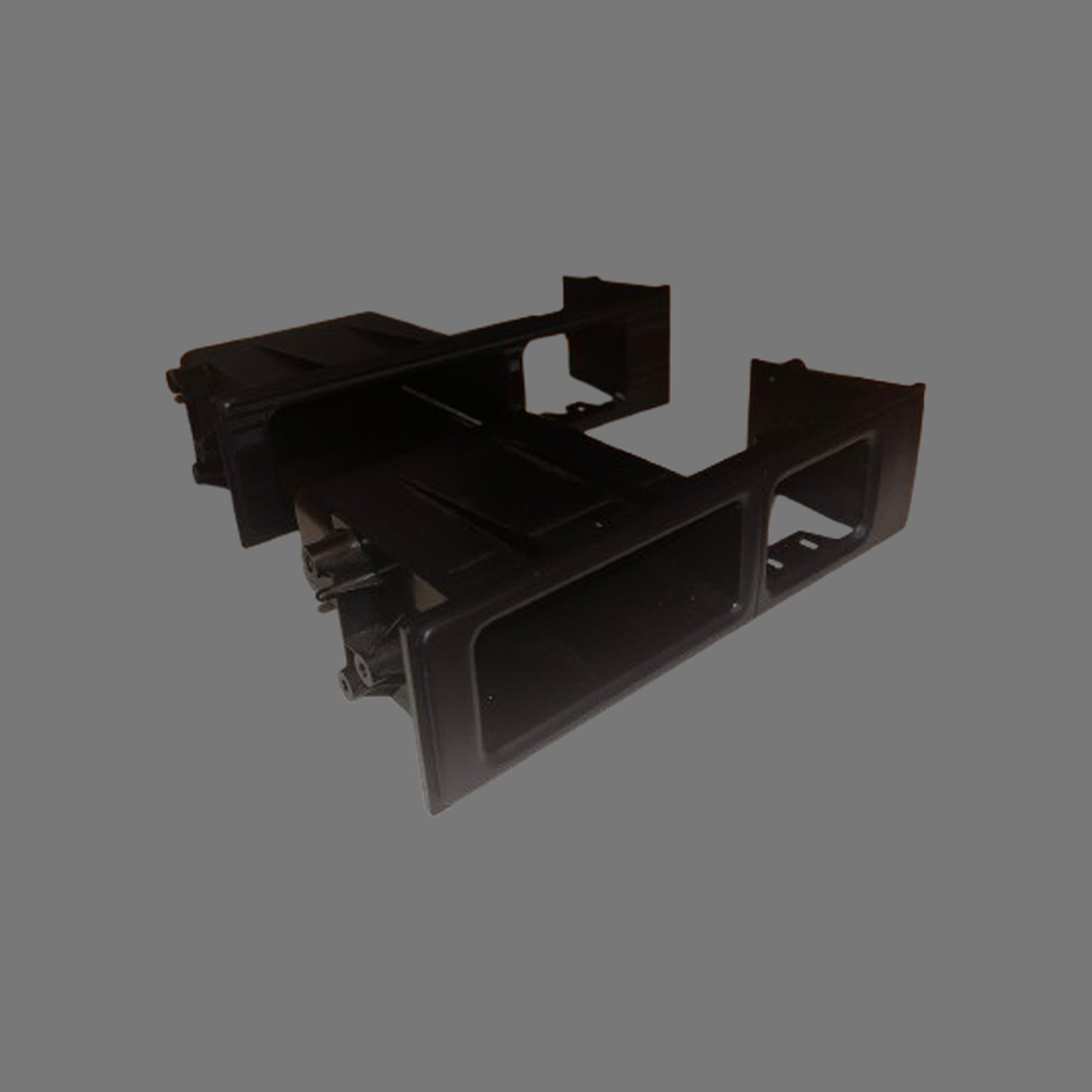

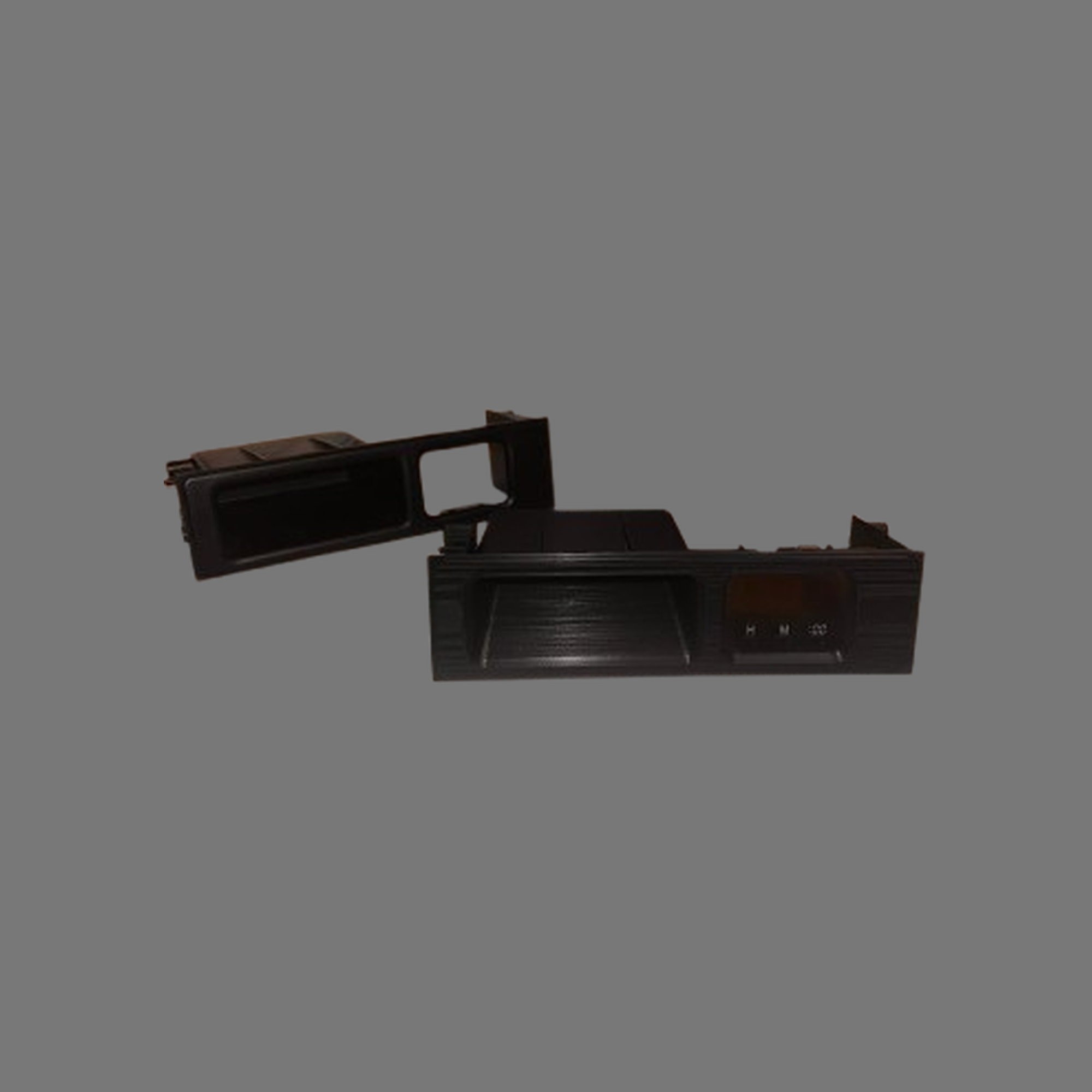

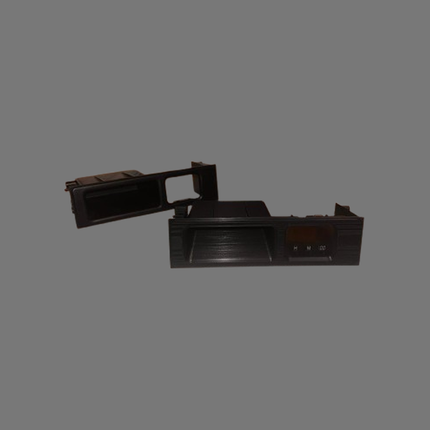

Daihatsu Copen L880K — Upper dash cubby / clock housing (RHD vehicle)

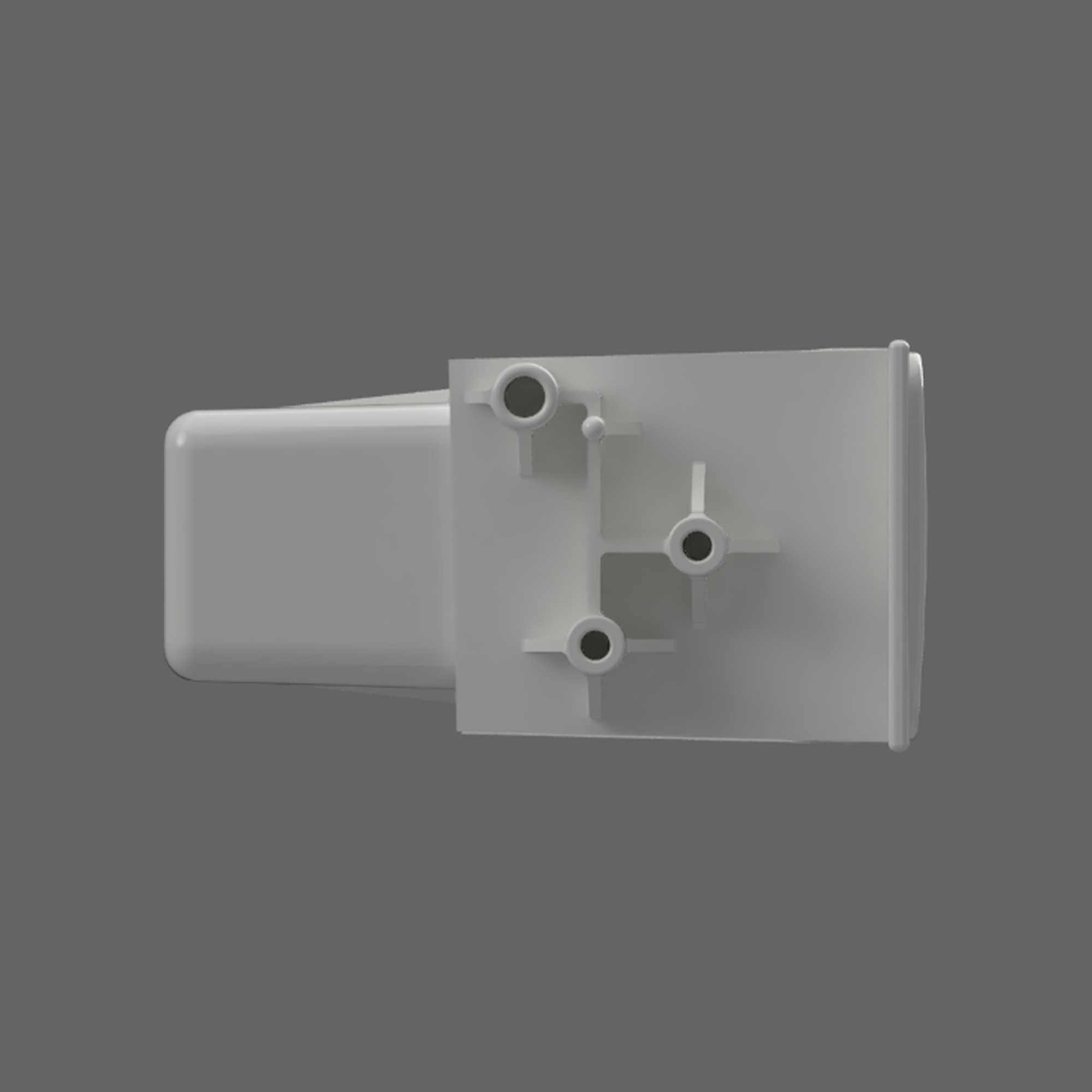

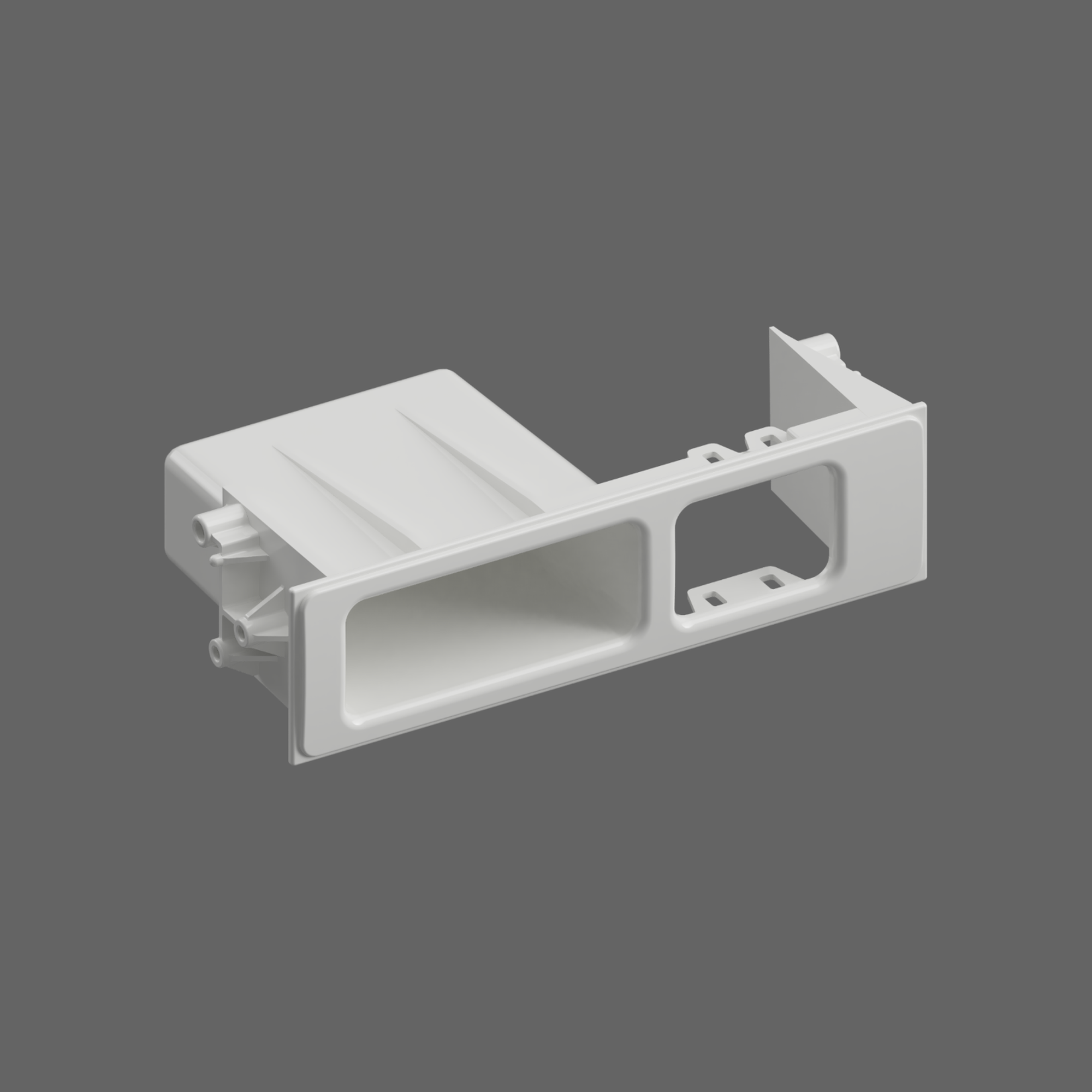

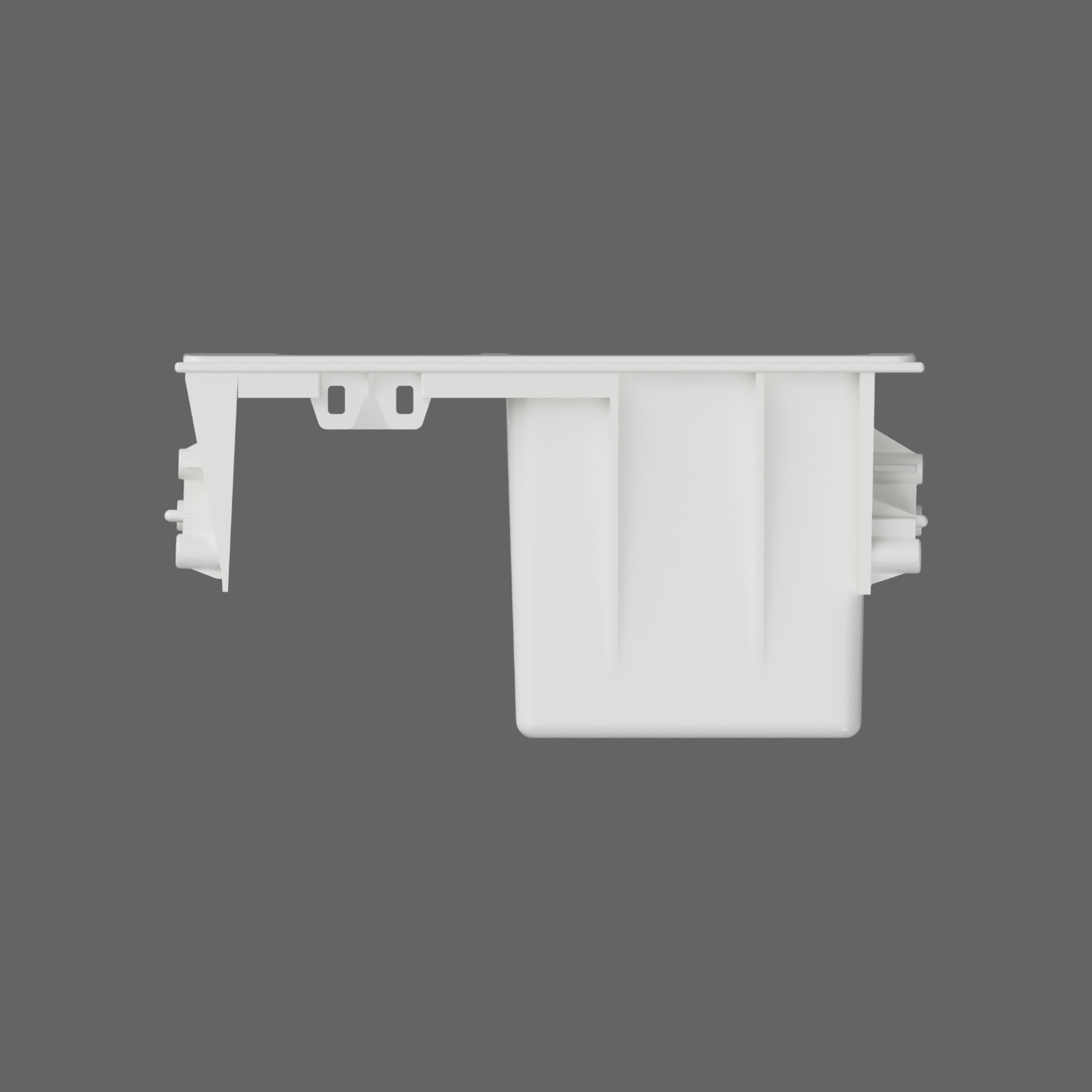

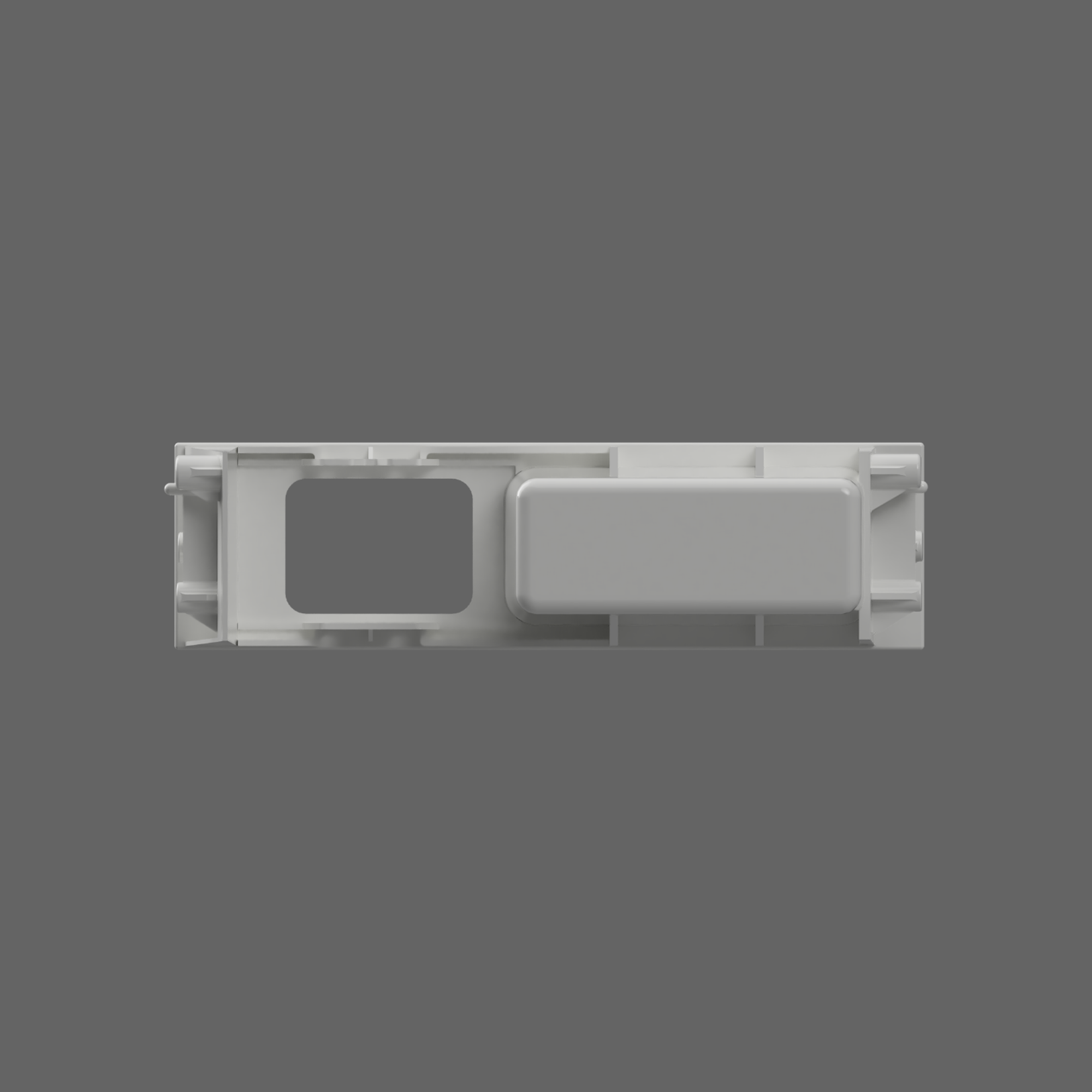

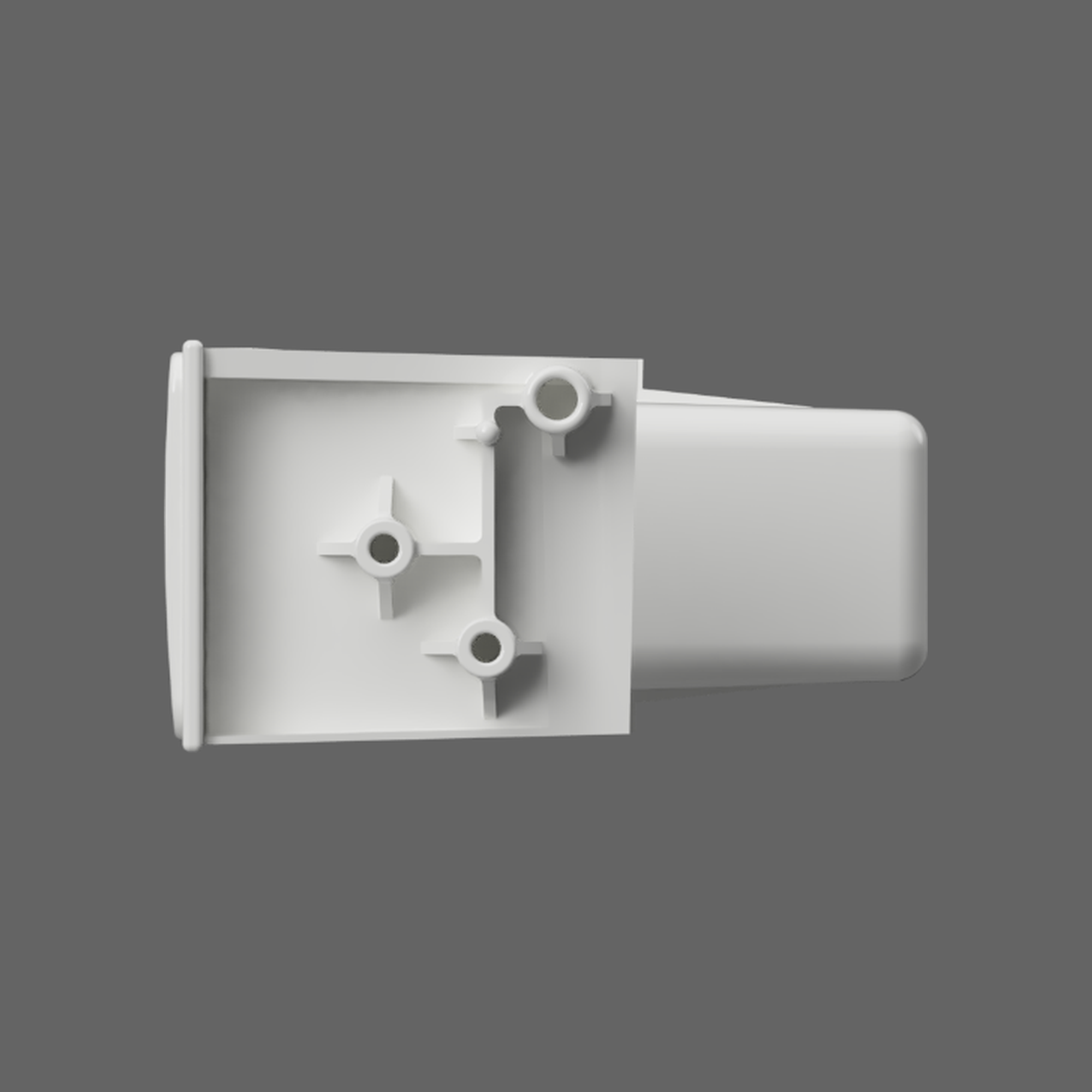

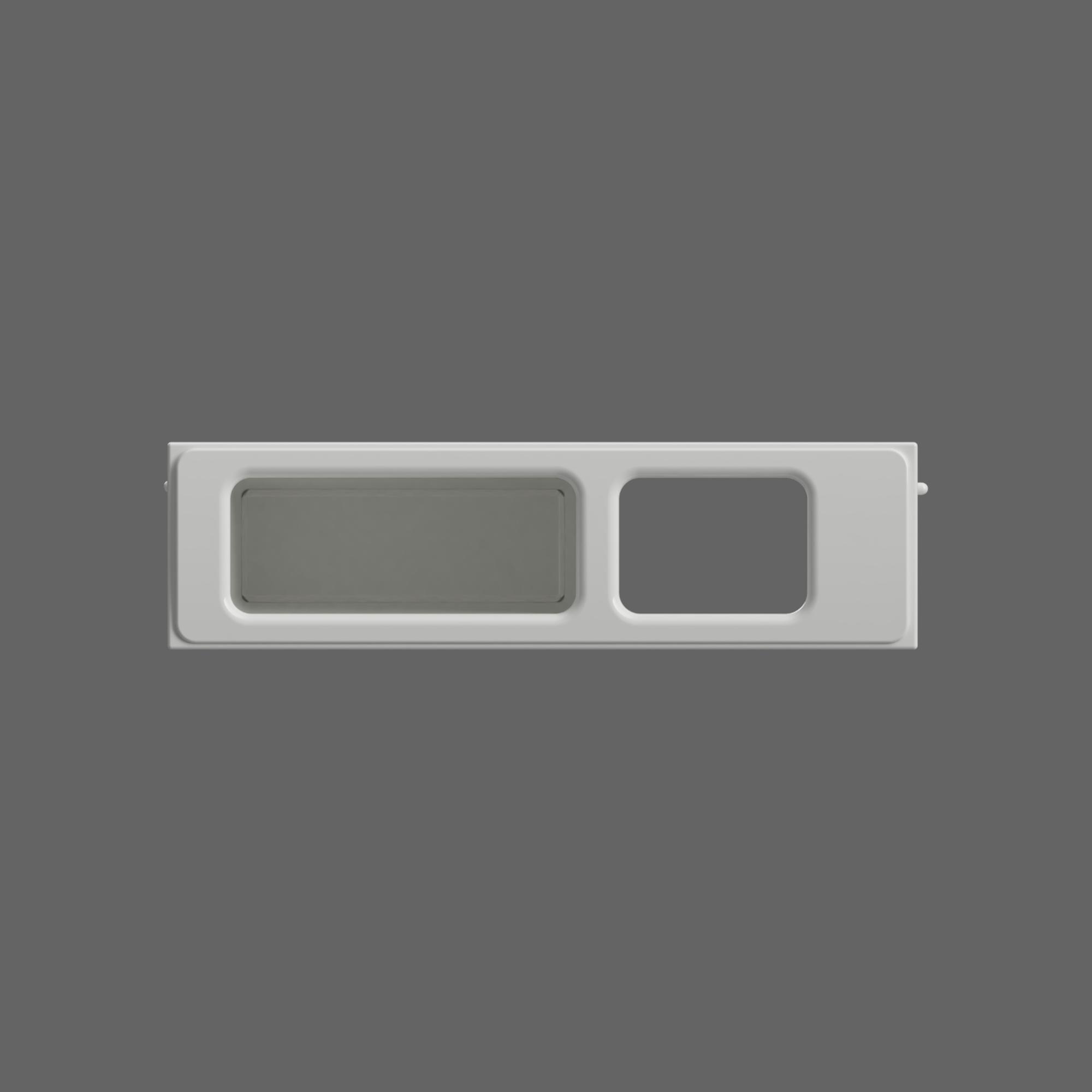

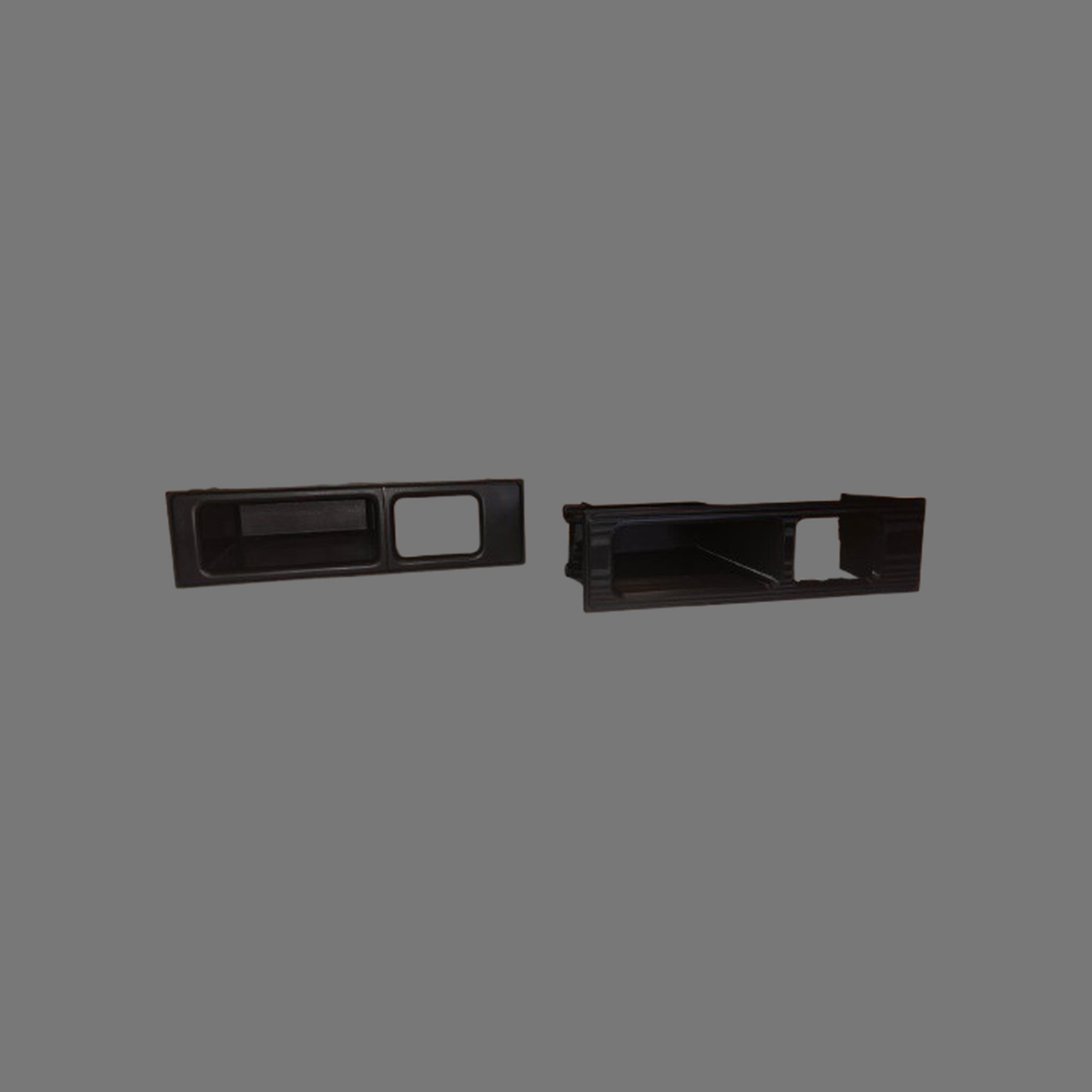

This is a reverse engineered CAD model of the upper dash cubby / clock housing from a Daihatsu Copen L880K.

The model has been rebuilt from scan data and real-world reference geometry into a clean, usable CAD form, making it suitable for direct replacement, modification, and custom interior development.

Dataset overview

This file represents the complete cubby housing.

Unlike a raw scan, this model has been reconstructed into clean geometry, making it significantly easier to work with in CAD and suitable for manufacturing.

The model is aligned to the XYZ axis and ready for immediate use.

File details

File format
STL

Geometry type
Reverse engineered CAD model (cleaned and rebuilt, not scan mesh)

Model orientation
Aligned to the XYZ coordinate system for CAD use

Compatibility

Designed from a right-hand drive (RHD) Daihatsu Copen L880K.

Compatibility with left-hand drive vehicles is not confirmed, users should verify suitability for their specific application.

Part reference

This component may correspond to one of the following part numbers:

• 304083E
• 23064E
• 403253
• 28998304083E

Design notes

This model has been recreated using scan data and real-world reference, resulting in a geometry that closely matches the original part.

Minor deviations may exist due to the reverse engineering process, however these are within a tolerance that does not impact normal use.

Certain wall sections have been intentionally thickened to improve strength and reduce the likelihood of failure when manufactured using typical 3D printing materials.

Intended applications

This model is suitable for:

• Direct replacement of the factory cubby
• Custom gauge pod development
• Integration of displays or electronics
• Switch panels or control layouts
• Interior prototyping and product development

The clean CAD structure makes it ideal as both a replacement part and a base for modification.

Important notes

Clip features:
The retaining clips used for the clock fitment may require reinforcement depending on the material used.

When printing with weaker materials such as PLA, clips may be prone to snapping under use. Stronger materials or slight design adjustments are recommended where durability is required.

Manufacturing guidance

This file is suitable for 3D printing or further modification.

For best results:

• Avoid relying on PLA for load-bearing clip features
• Expect minor post-processing or tolerance adjustment depending on printer accuracy

File delivery

After purchase, a download link will be sent via email providing access to the file.

The download link is single-use and can only be accessed once.

If the original purchaser loses their file, a replacement download link can be requested at any time.

Usage conditions

This file may be used for personal use and commercial product development.

However:

• The file may not be resold, shared or redistributed
• Any derivative digital files may not be distributed
• The model may not be sold in digital or physical form
