Description
Daihatsu Copen L880K Boot and Spoiler 3D Scan
Source parts
Daihatsu Copen L880K boot panel and rear spoiler (L881K-style aftermarket/replica)
This dataset contains exterior surface geometry of the boot panel and rear spoiler from a Daihatsu Copen L880K, captured as a reference model for rear-end development and exterior design work.
The scan includes both the boot area as shown in the photos and spoiler, as well as the spoiler by itself, allowing accurate reference of their positioning, proportions and interaction.
Dataset overview
The dataset is supplied as STL mesh data and is aligned to the XYZ axis, allowing immediate use in CAD environments.
Two files are included:

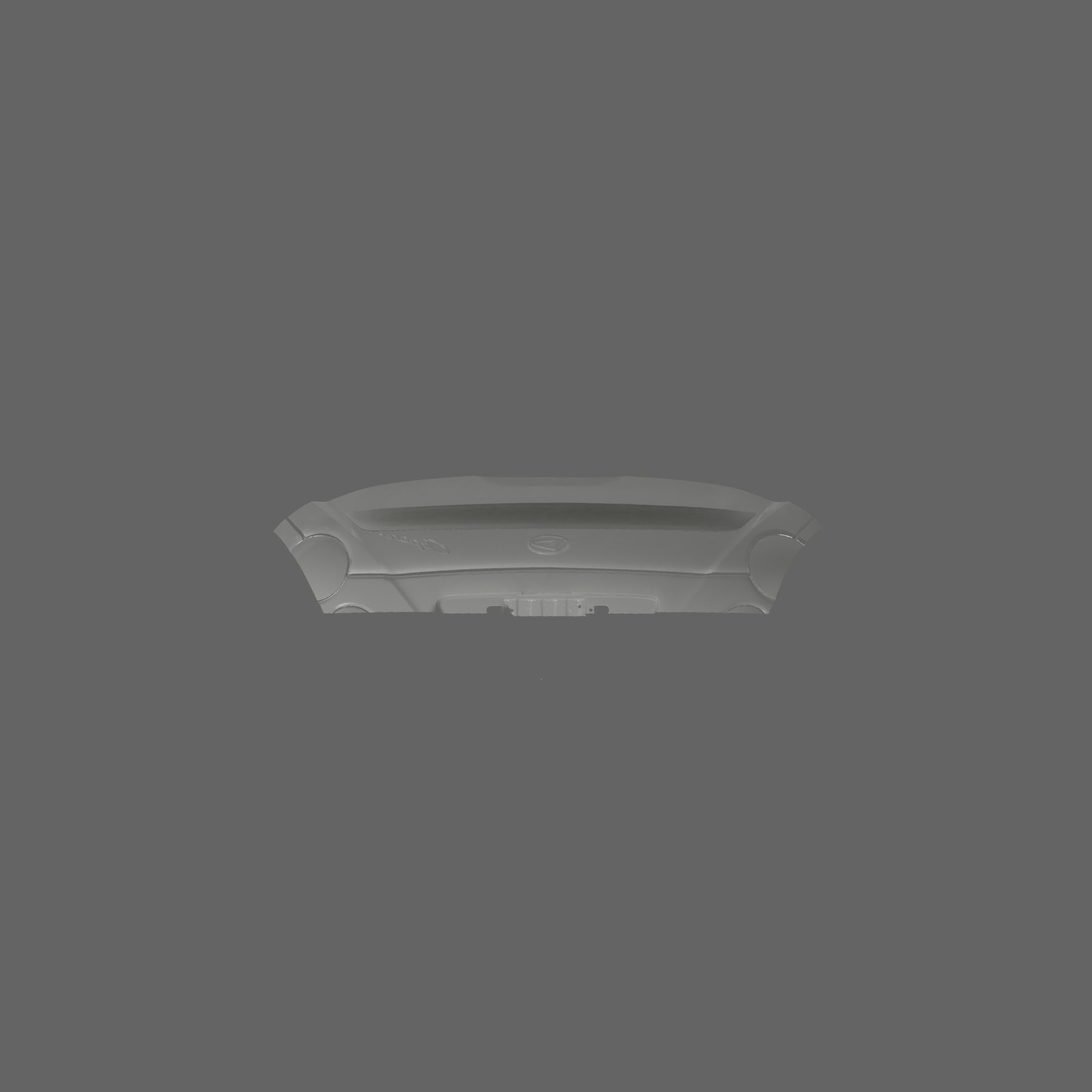

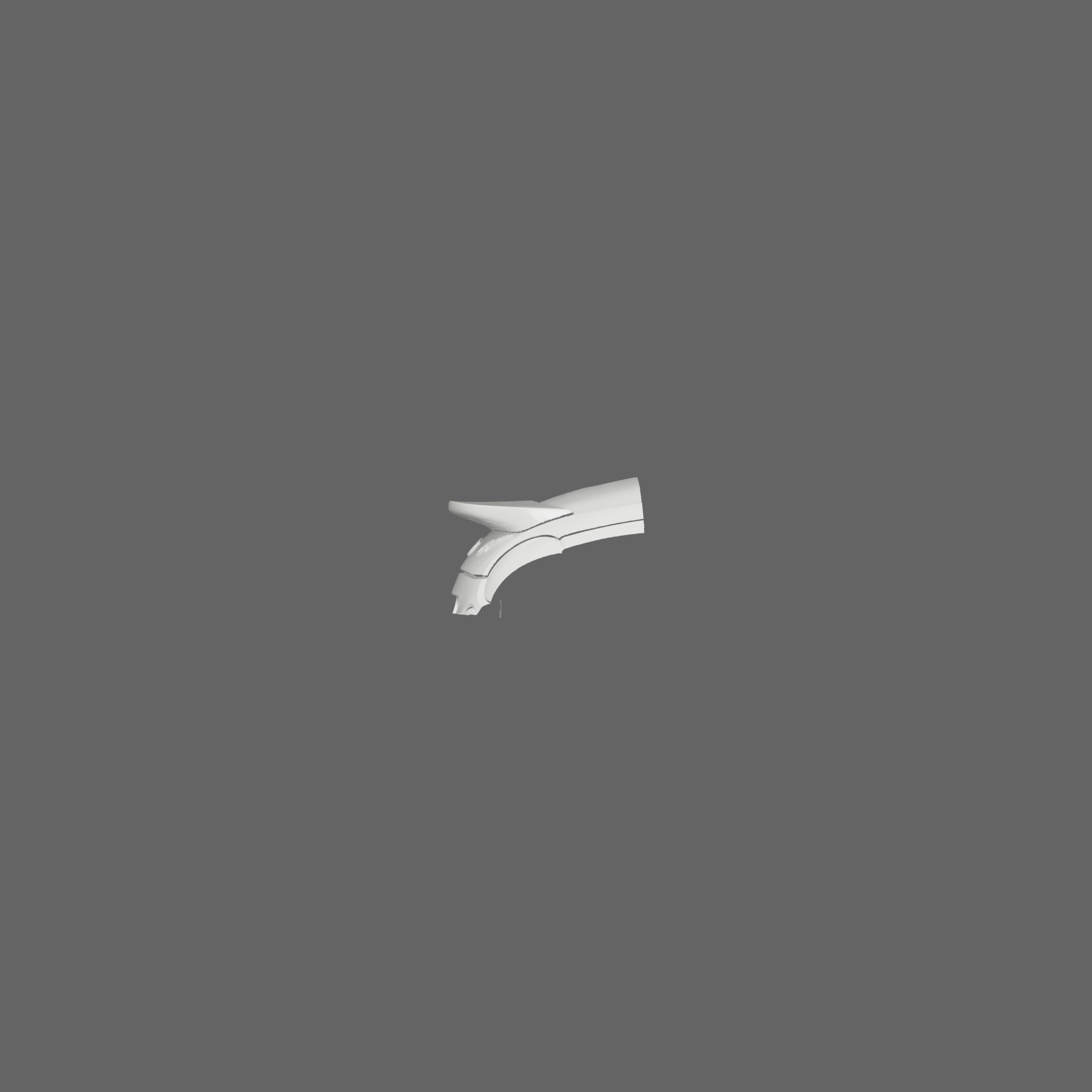

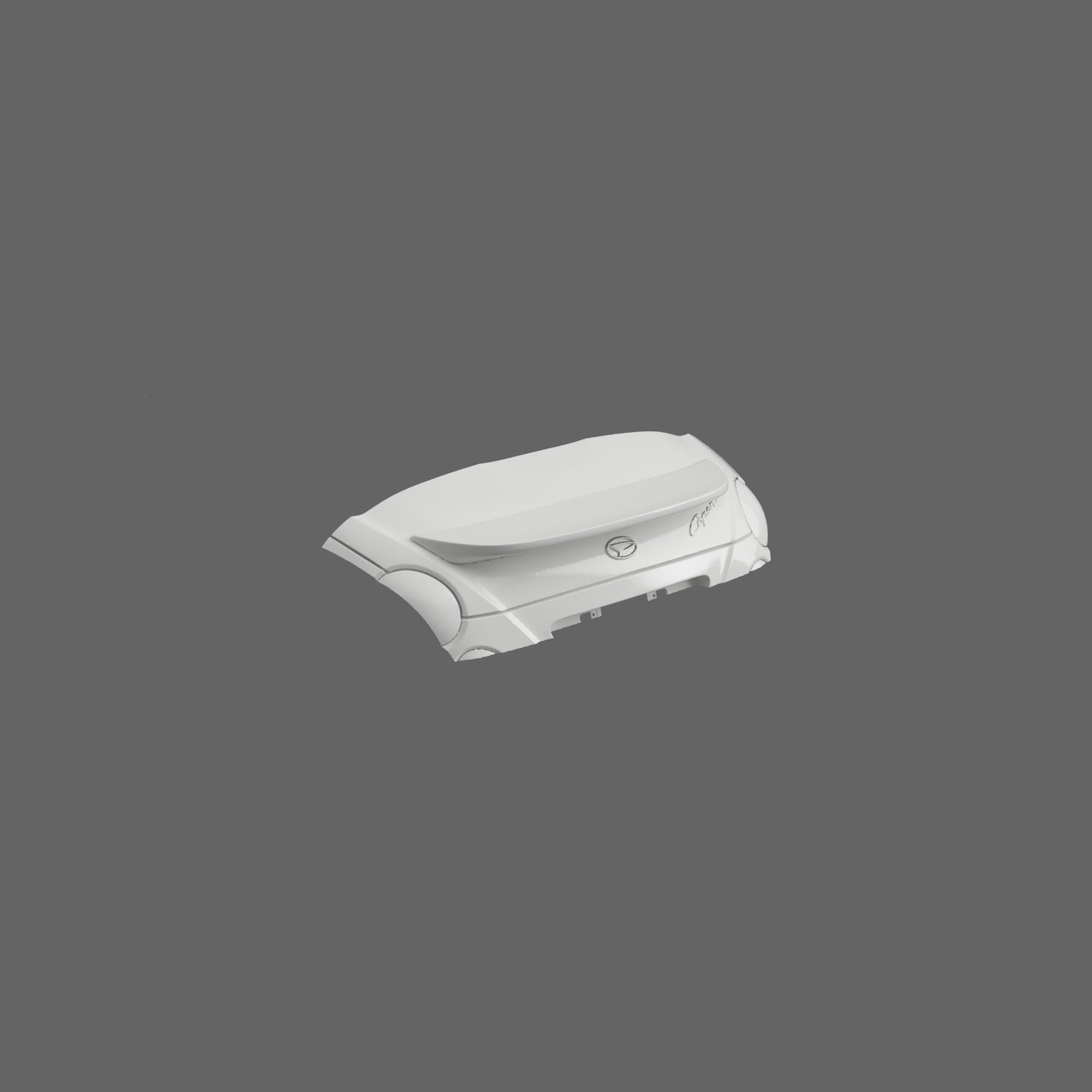

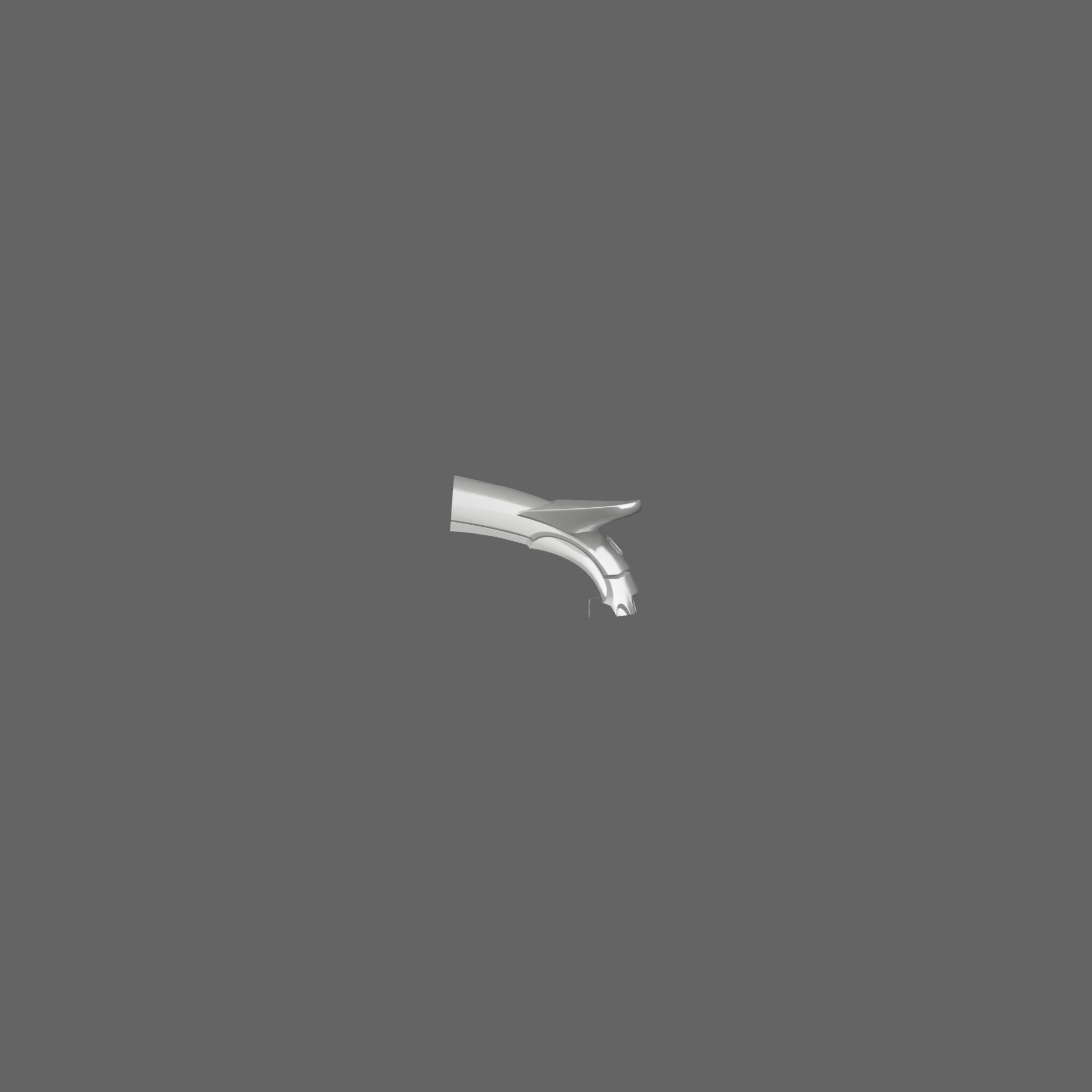

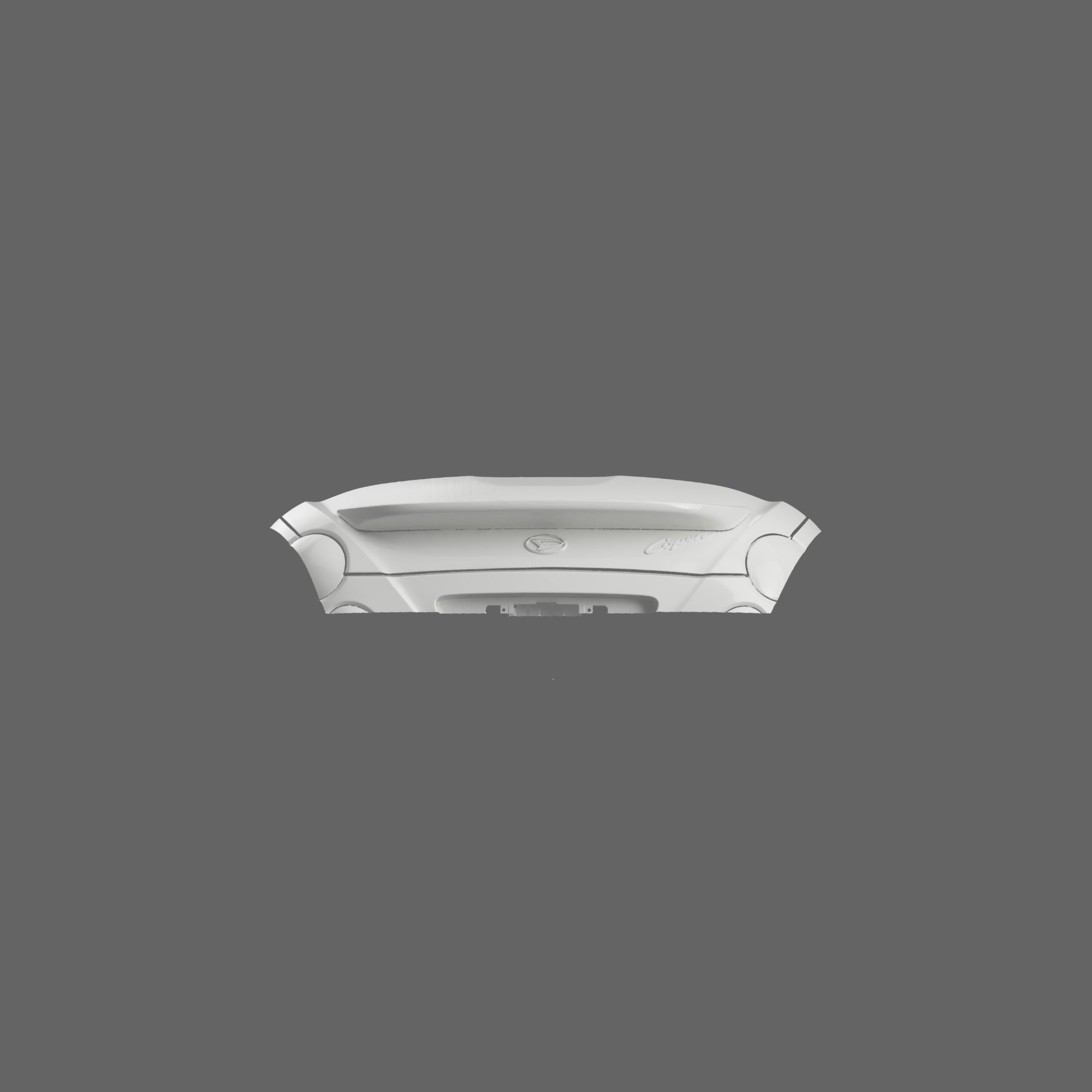

Boot with spoiler mounted
Provides full reference of the spoiler in its installed position, including surrounding panel context.

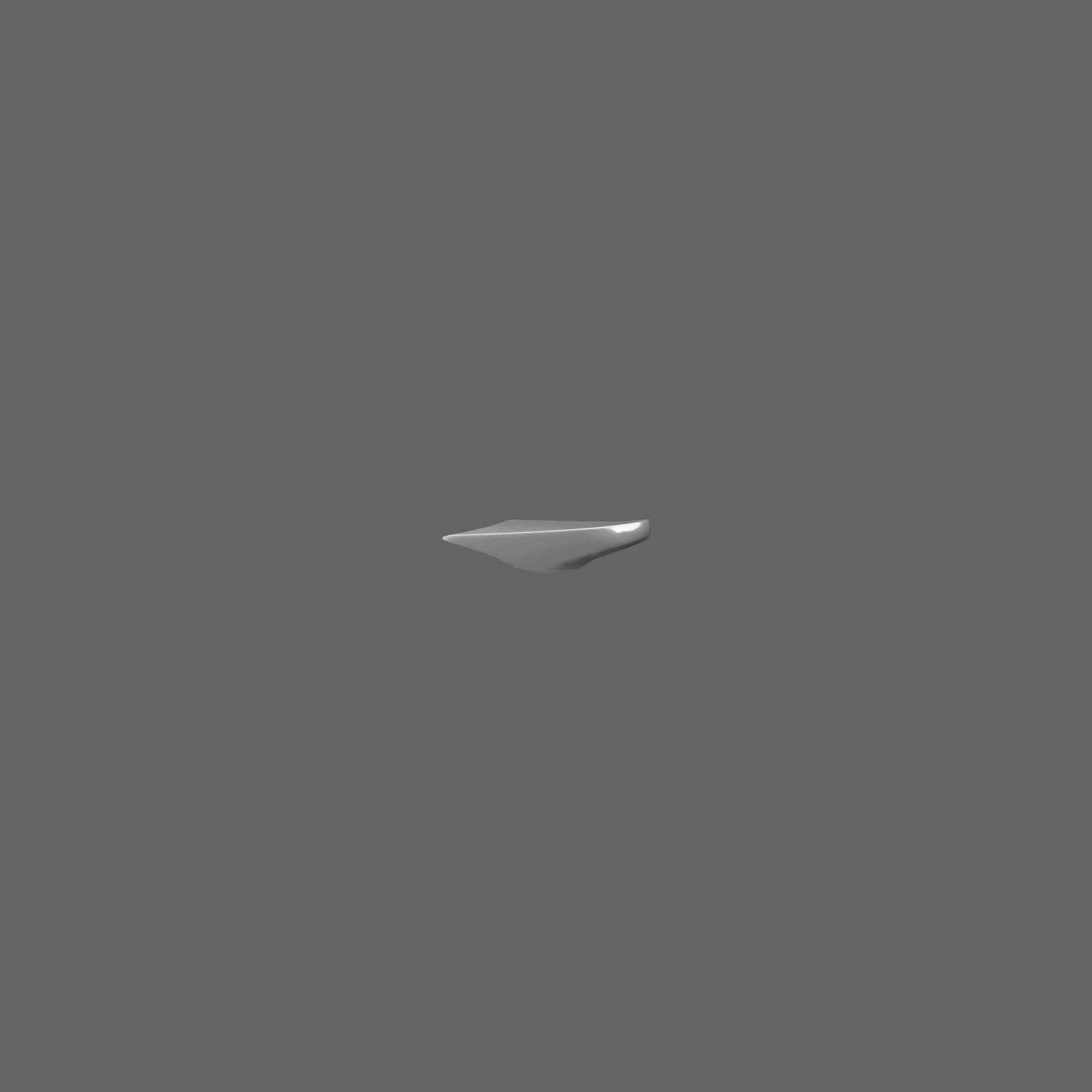

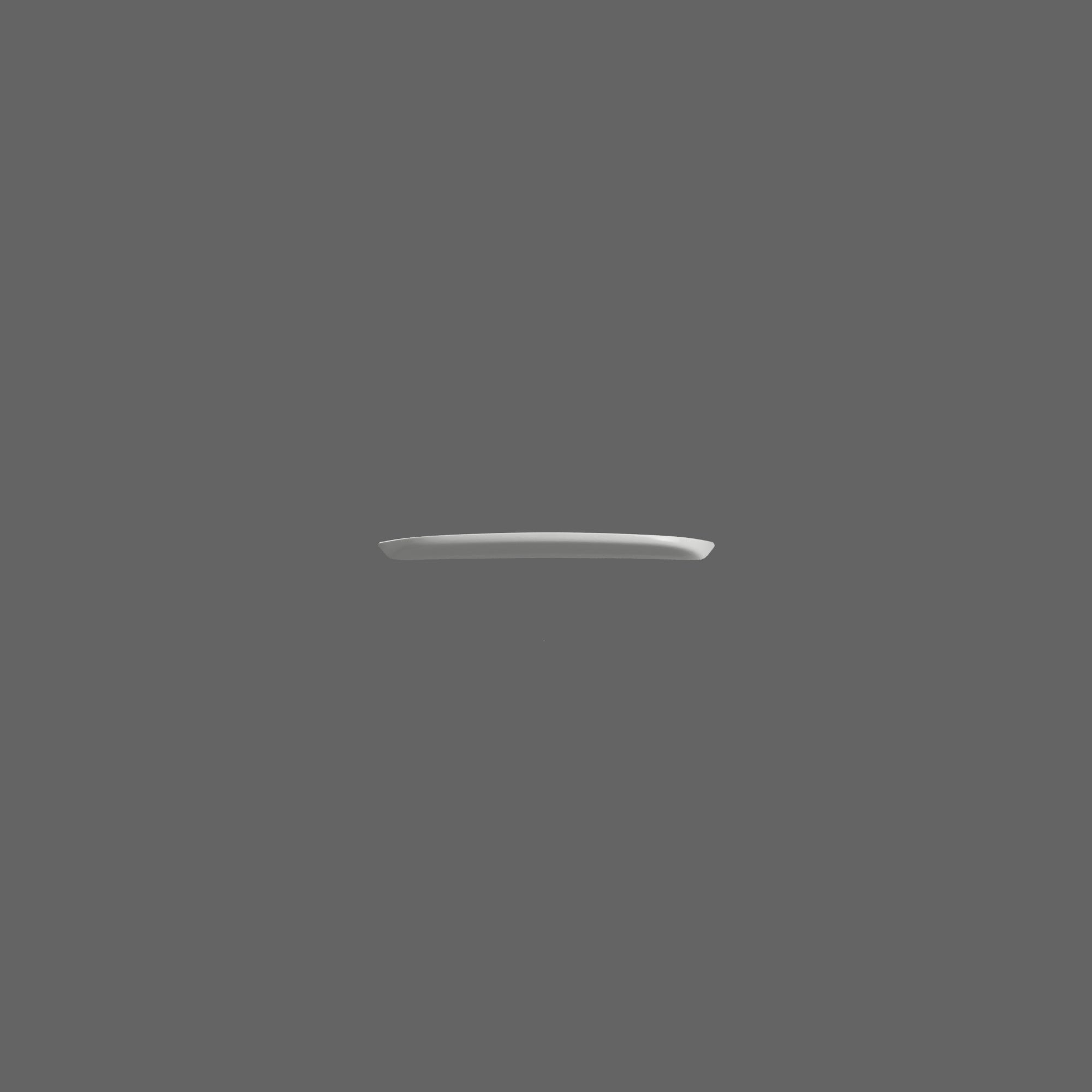

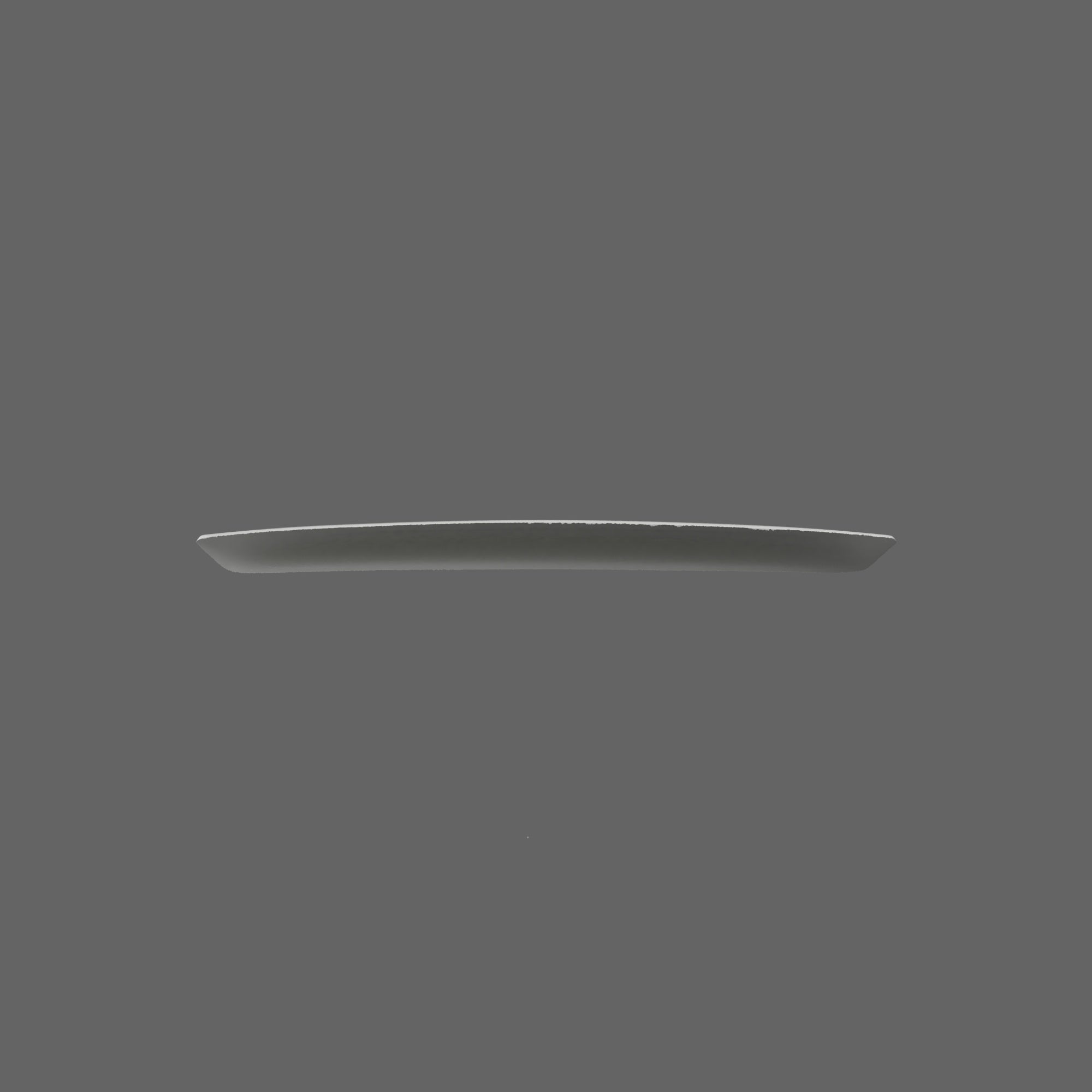

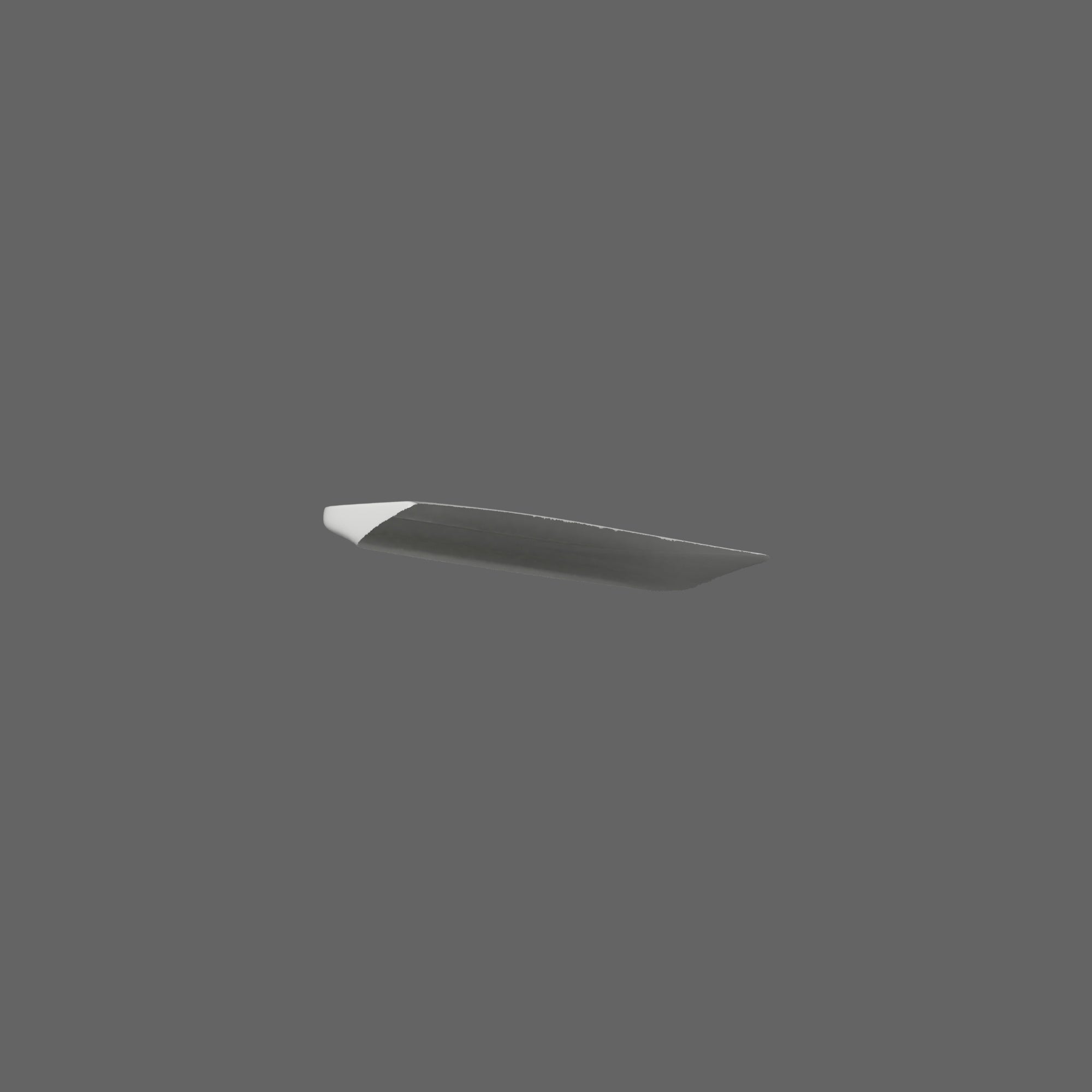

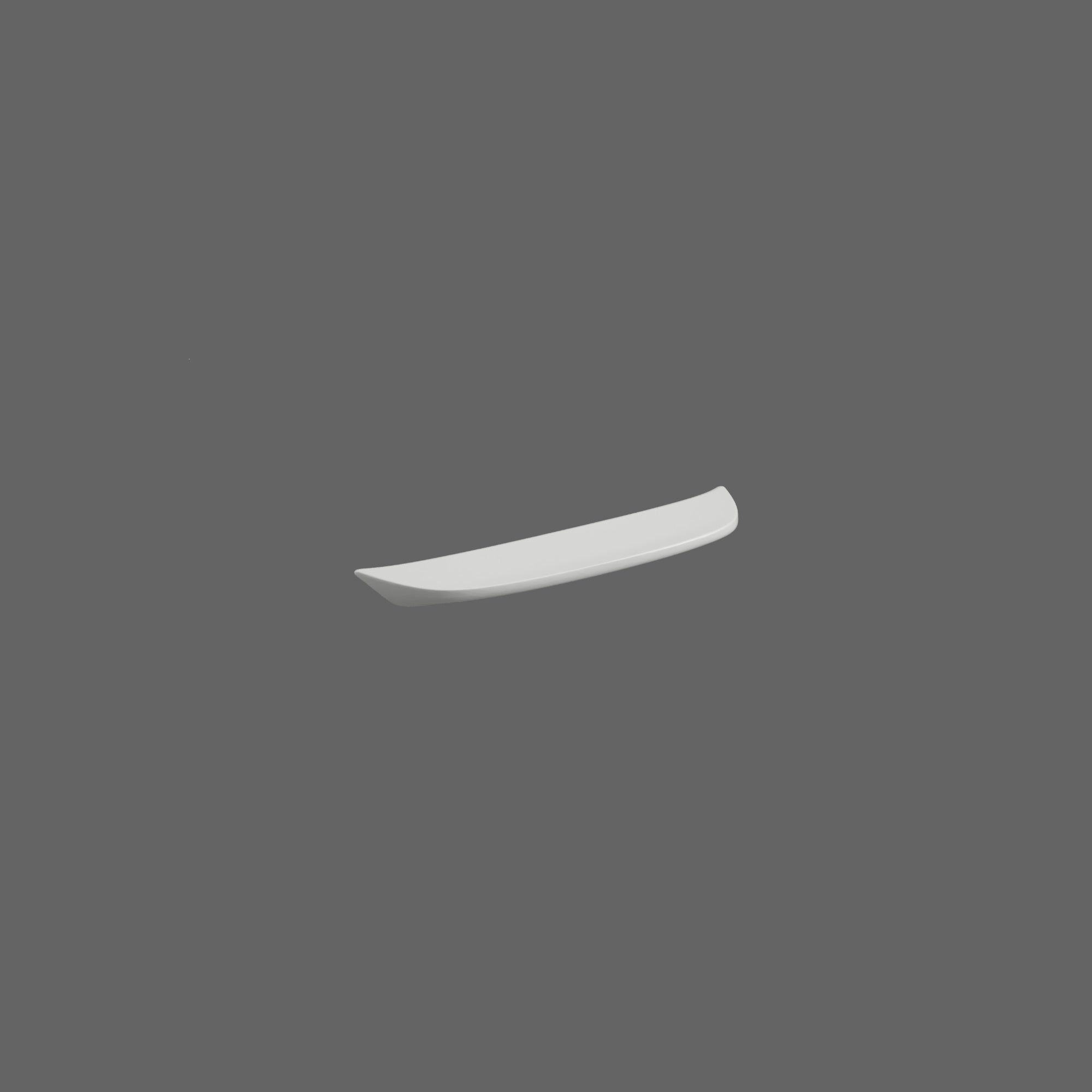

Spoiler only
A separate file of the spoiler geometry, allowing easier modification, redesign or independent use.
Data specifications
Mesh density
Approximately 2 million polygons
Dimensional resolution
Approximately ±0.5 mm
File format
STL mesh
Model orientation
Aligned to the XYZ coordinate system for direct use in CAD software such as Fusion 360 and similar environments.
Scan coverage
The dataset includes:
- Some of the boot outer surface geometry
- Surrounding panel context for reference
- Rear spoiler geometry
- Mounted relationship between boot and spoiler
Only the boot and spoiler geometry are included. Adjacent components have been removed during post-processing.
Vehicle configuration
The spoiler included in this dataset is an aftermarket L881K-style replica wing.
Fitment may vary slightly compared to OEM parts, and this should be considered when using the data for design or development purposes.
Mesh condition
The mesh has been cleaned to remove most scanning artefacts whilst maintaining the original captured surface geometry.
The data is consistent and suitable for reference, modelling and development workflows.
The surface has not been artificially smoothed, preserving the original captured form.
Typical applications
This dataset is intended for workflows such as:
• Development of rear spoilers and aero components
• Designing boot-mounted accessories or extensions
• Reverse engineering and CAD reference
• Studying spoiler positioning and proportions
• Digital modelling and visualisation
File delivery
After purchase, a download link will be sent via email providing access to the dataset.
The download link is single-use and can only be downloaded once. If the original purchaser loses their files, a replacement download link can be requested at any time.
Usage conditions
The purchaser may use the dataset for internal design work and commercial product development.
However:
• The scan files themselves cannot be redistributed
• The dataset may not be resold, shared or transferred
• Any portion of the scan data may not be published or redistributed
Products developed using this dataset may be manufactured and sold.
