Description

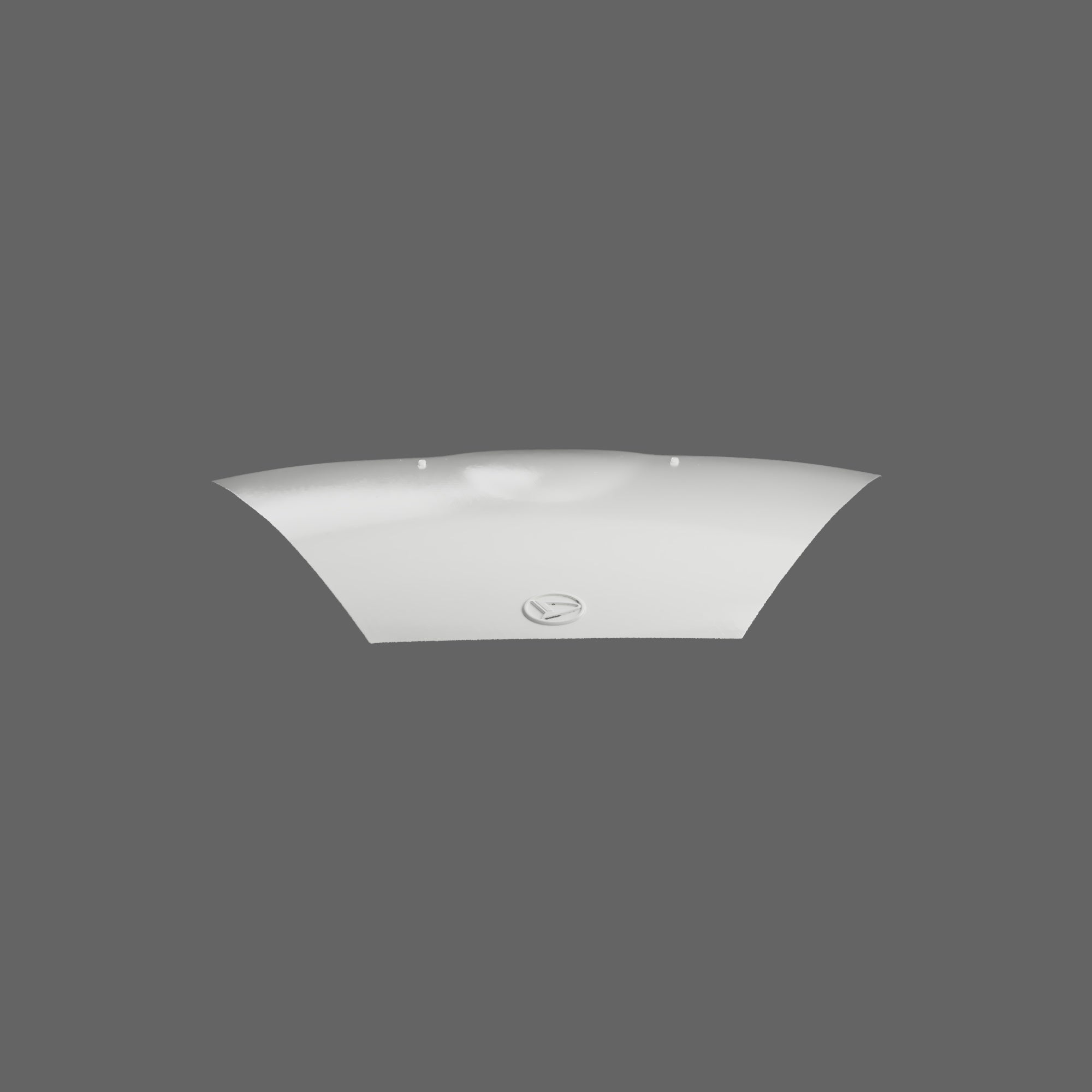

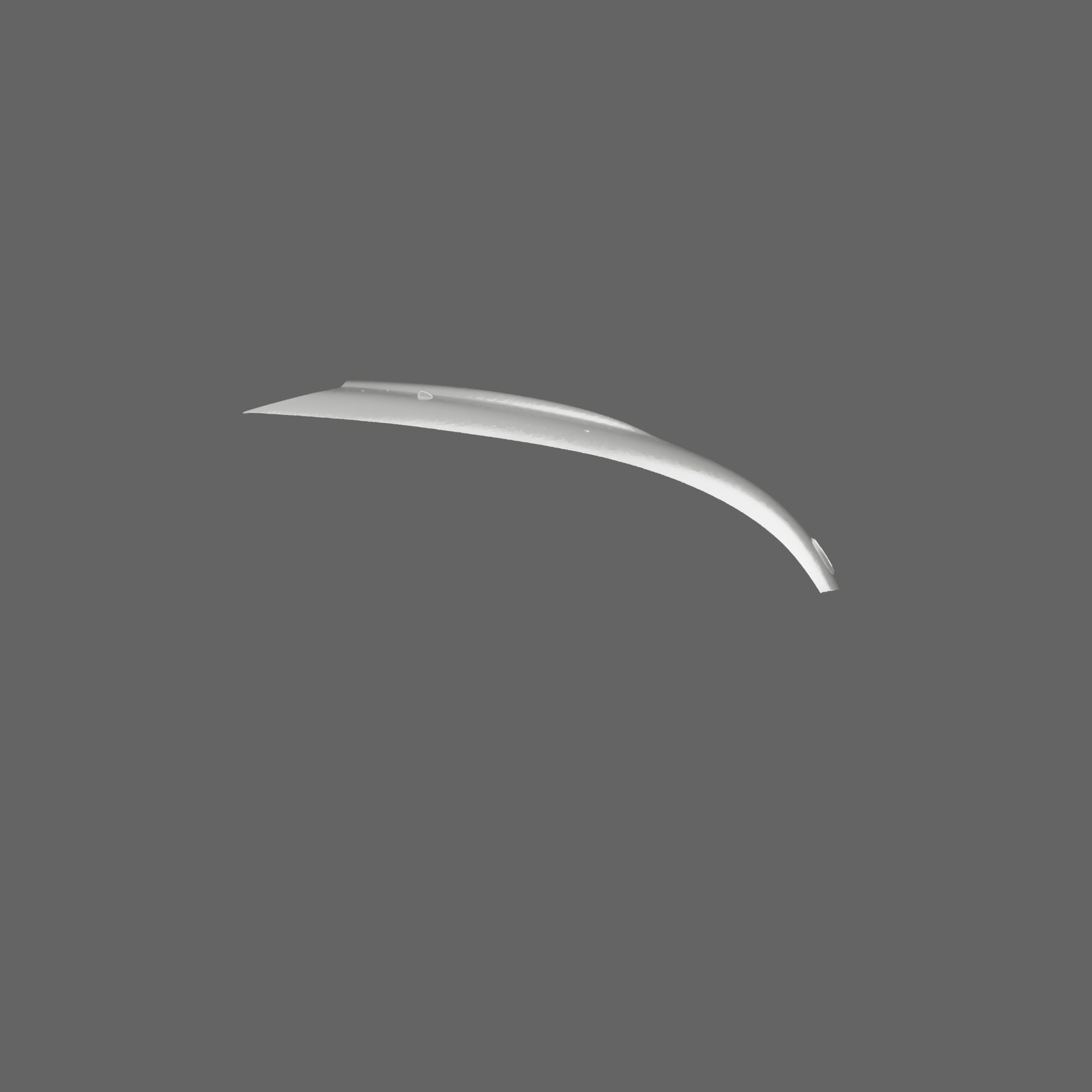

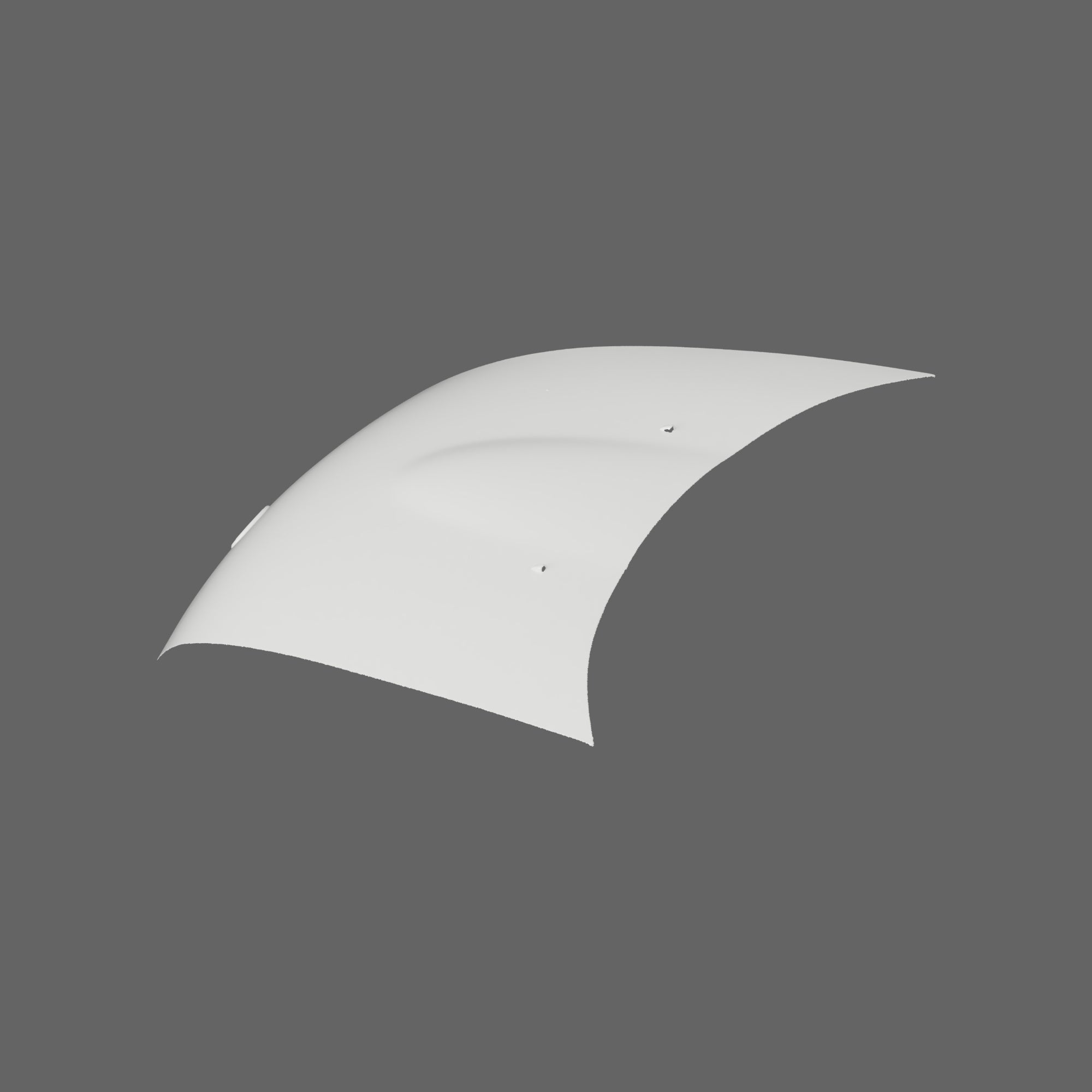

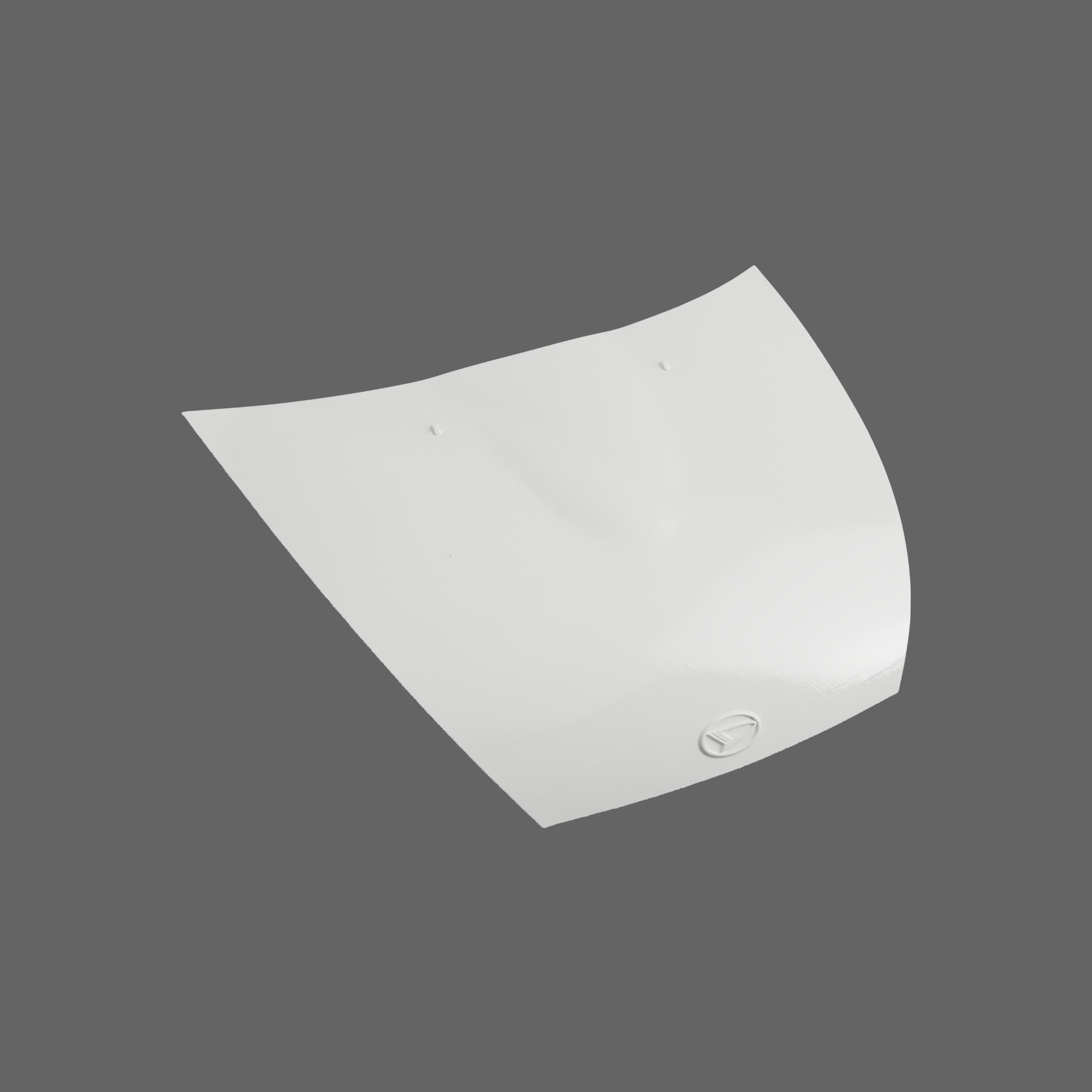

Daihatsu Copen L880K Bonnet 3D Scan

Source part

Daihatsu Copen L880K bonnet (OEM)

This dataset contains exterior surface geometry of the OEM bonnet from a Daihatsu Copen L880K, captured as a reference model for panel development, reverse engineering and exterior design work.

The bonnet was scanned on the vehicle and post-processed to isolate the outer skin geometry only. The result is a clean, workable mesh intended for CAD reference, modelling and development workflows.

Dataset overview

The dataset is supplied as STL mesh data and is aligned to the XYZ axis, allowing immediate use in CAD environments.

The geometry reflects the original OEM bonnet as captured and is intended for reference-based workflows rather than direct manufacture.

Data specifications

Mesh density

Approximately 2 million polygons

Dimensional resolution

Approximately ±0.5 mm

File format

STL mesh

Model orientation

Aligned to the XYZ coordinate system for direct use in CAD software such as Fusion 360 and similar environments.

Scan coverage

The dataset includes:

• Full OEM bonnet outer skin geometry
• Main outer surface and panel form
• Overall curvature and surface transitions

Only the outer bonnet skin is included. Surrounding panels and adjacent components are not part of this dataset.

Mesh condition

The mesh has been cleaned to remove most scanning artefacts whilst maintaining the original captured surface geometry.

The data is consistent across the panel and suitable for accurate reference and development work. A very small amount of scan data is missing around the washer jet areas, though this is limited and does not affect typical use.

The surface has not been artificially smoothed, preserving the original captured form.

Typical applications

This dataset is intended for workflows such as:

• Vent design and bonnet development
• Reverse engineering and CAD reference
• Creating modified or replacement bonnet designs
• Aero and ducting layout development
• Digital modelling and visualisation

It is particularly useful as a development base for vented bonnet concepts or any project requiring accurate bonnet surface geometry.

File delivery

After purchase, a download link will be sent via email providing access to the dataset.

The download link is single-use and can only be downloaded once. If the original purchaser loses their files, a replacement download link can be requested at any time.

Usage conditions

The purchaser may use the dataset for internal design work and commercial product development.

However:

• The scan files themselves cannot be redistributed
• The dataset may not be resold, shared or transferred
• Any portion of the scan data may not be published or redistributed

Products developed using this dataset may be manufactured and sold.
