Description

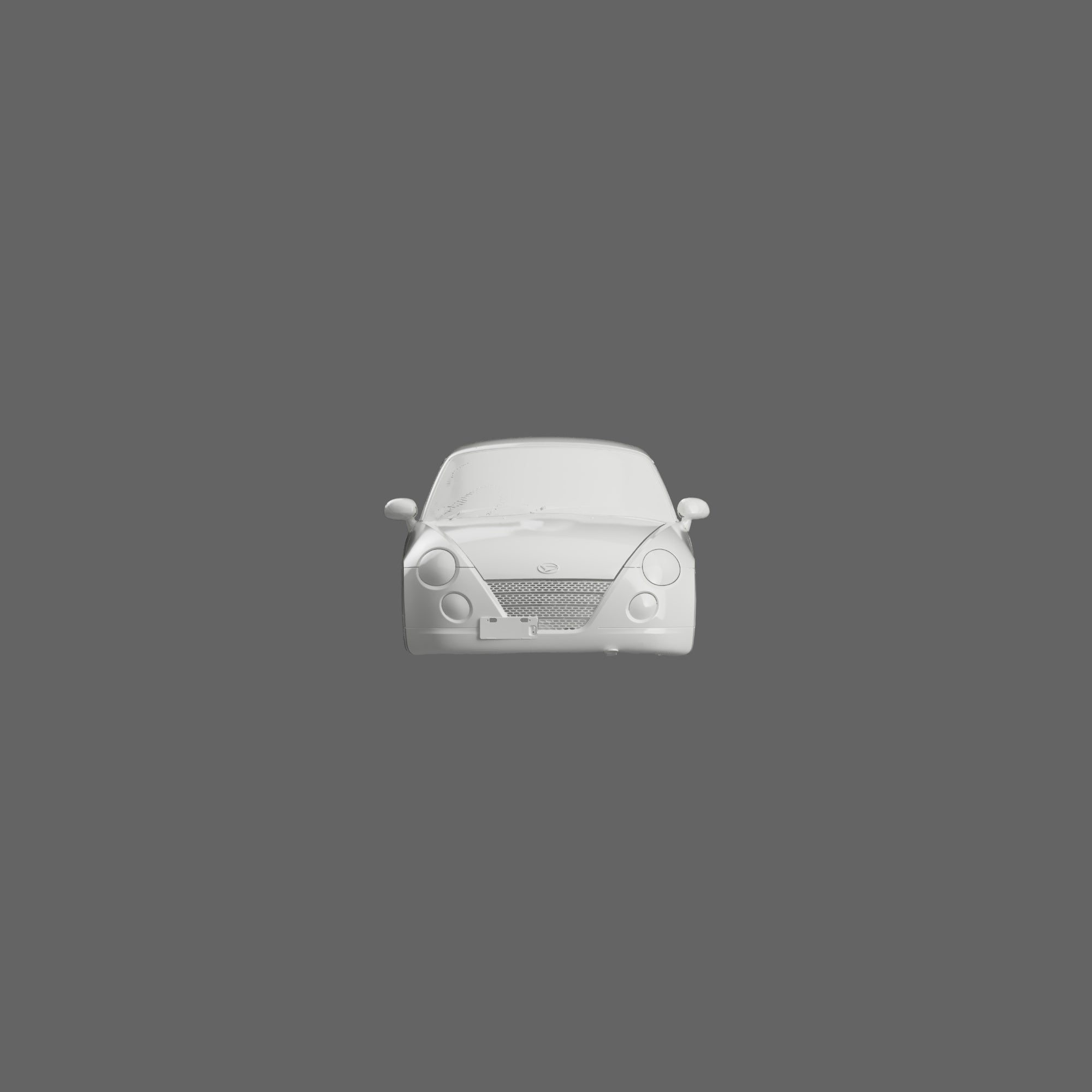

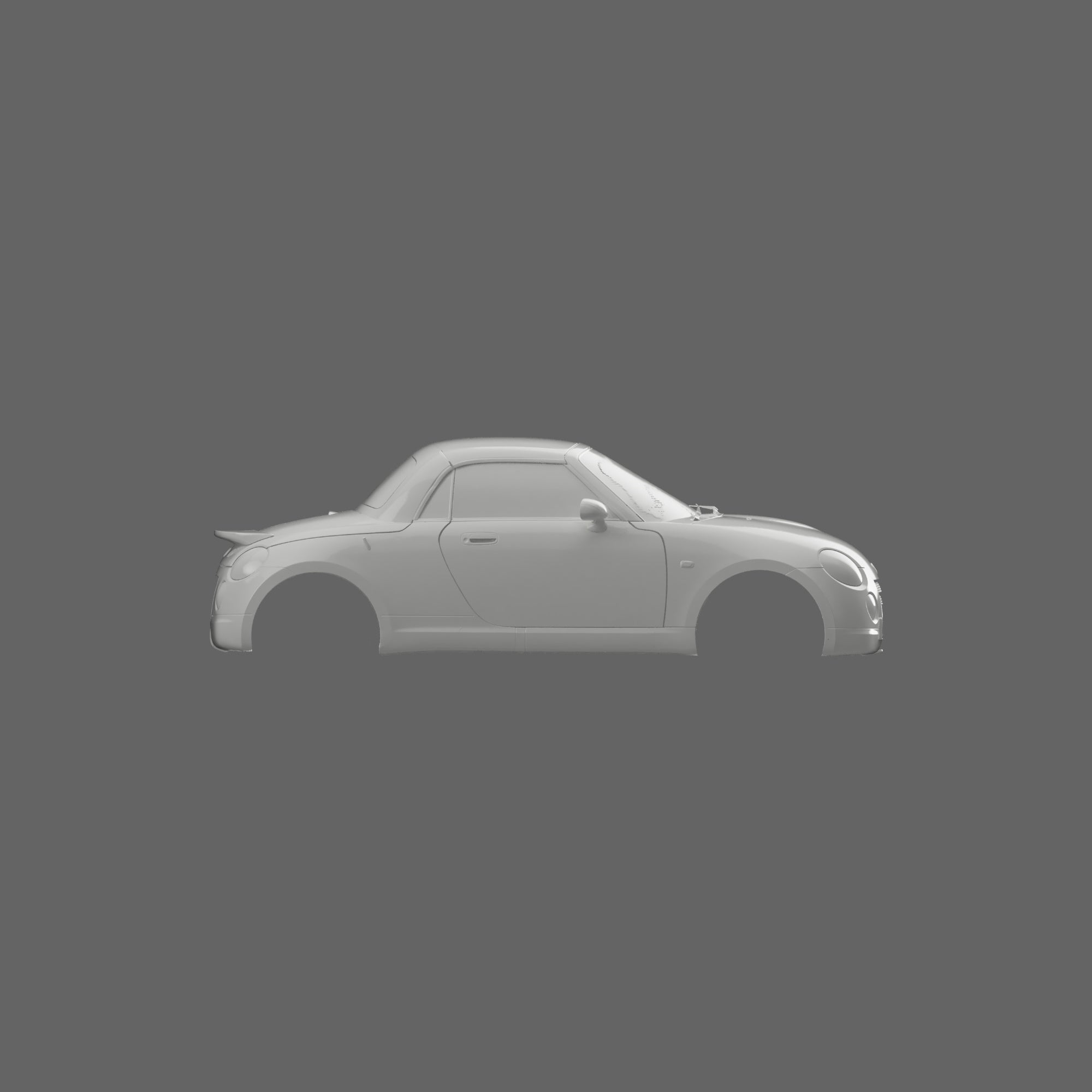

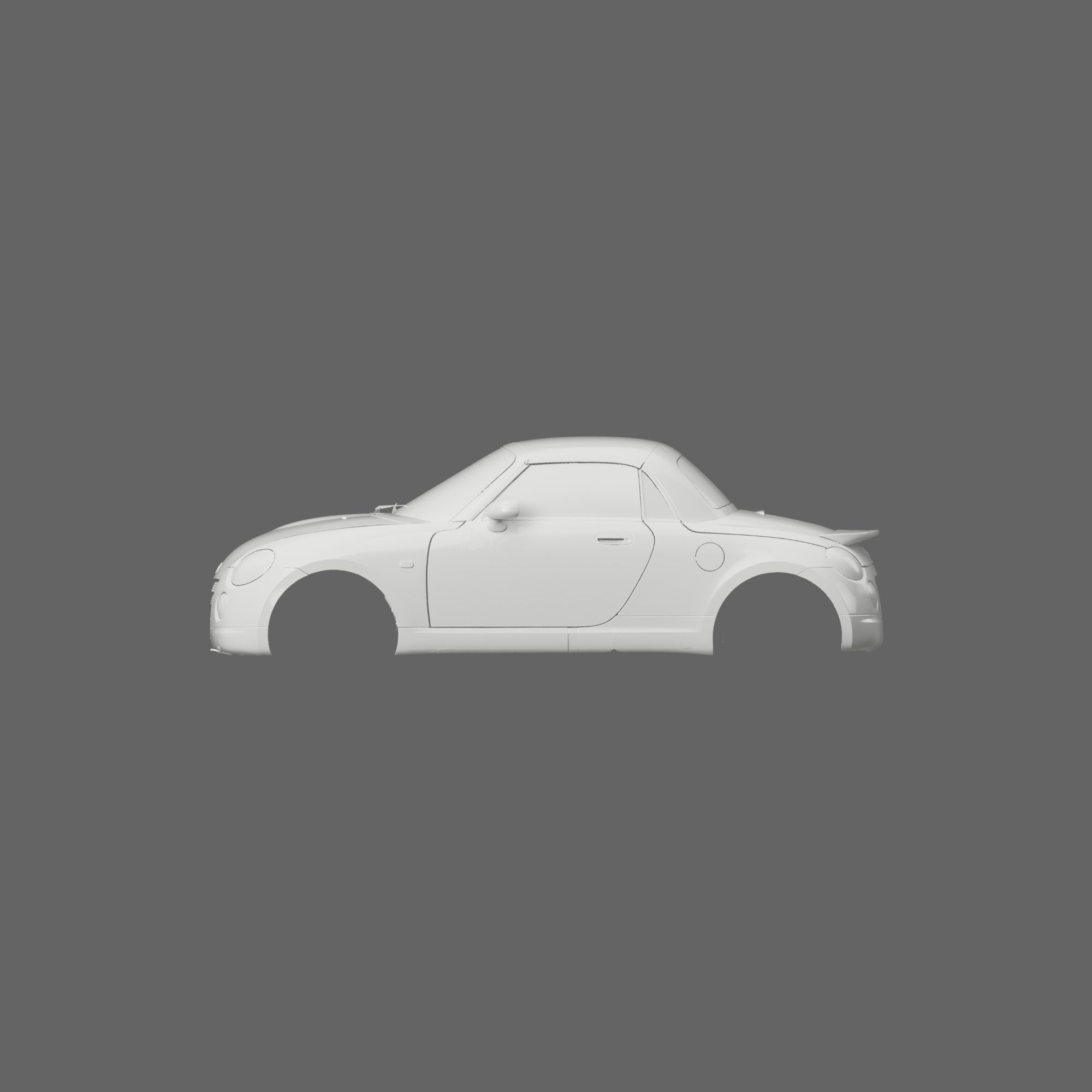

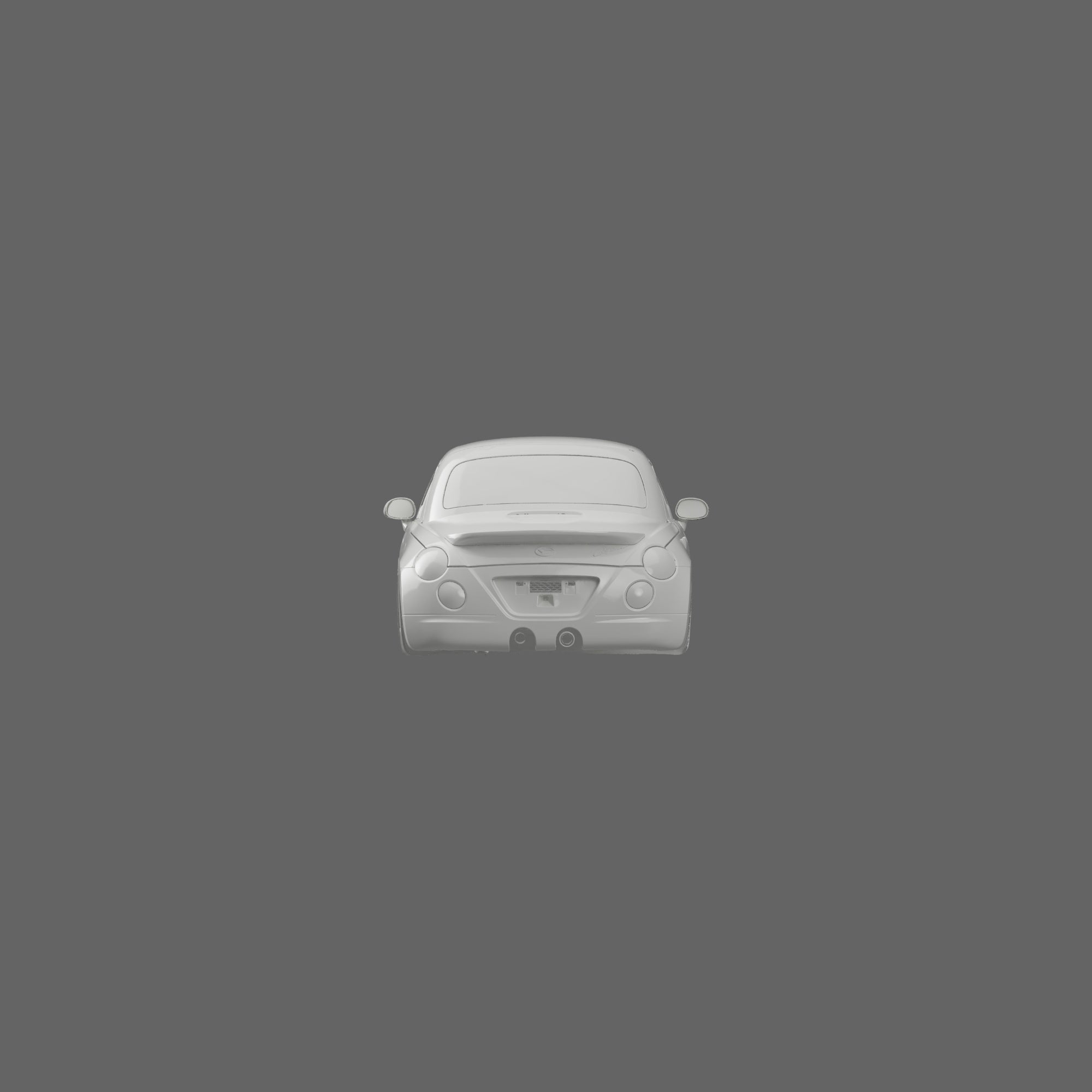

Daihatsu Copen L880K Exterior 3D Scan
Source vehicle
Daihatsu Copen L880K - UK Spec
This dataset contains full exterior surface geometry of a Daihatsu Copen L880K, captured as a reference model for design, development and digital workflows.
The scan represents the vehicle as captured and provides accurate reference for overall proportions, surface transitions and body geometry.
Dataset overview
The dataset is supplied as STL mesh data and is aligned to the XYZ axis, allowing immediate use in CAD environments.
The geometry reflects the full exterior of the vehicle and is intended for reference-based workflows rather than direct manufacture.
Data specifications
Mesh density
Approximately 10 million polygons
Dimensional resolution
Approximately ±0.5 mm
File format
STL mesh
Model orientation
Aligned to the XYZ coordinate system for direct use in CAD software such as Fusion 360 and similar environments.
Vehicle configuration
The vehicle was scanned in its current configuration and includes a small number of fitted components:
- Aftermarket boot spoiler
- Front tow hook present during scanning
The tow hook may slightly intersect the front bumper area within the dataset.
Scan coverage
The dataset includes full exterior geometry of the vehicle, capturing all primary body panels, surfaces and transitions.
Mesh condition
The mesh has been cleaned to remove most scanning artefacts whilst maintaining the original captured geometry.
The windscreen area contains rougher data due to the nature of scanning glass surfaces. This does not affect the usability of the surrounding body geometry.
Some areas may appear darker due to overlapping point cloud data. This is a visual characteristic of the scan and does not affect the underlying surface accuracy.
There is a very small amount of missing data along the nearside skirt, along with minor areas around the door glass. These are limited in scope and do not impact typical design or reference use.
The surface has not been artificially smoothed, preserving the original captured form.
Typical applications
This dataset is intended for workflows such as:
• Development of exterior parts and body kits
• Reverse engineering and CAD reference
• Surface modelling and design work
• Digital modelling and visualisation
The dataset can be used for a wide range of projects depending on the user’s requirements.
File delivery
After purchase, a download link will be sent via email providing access to the dataset.
The download link is single-use and can only be downloaded once. If the original purchaser loses their files, a replacement download link can be requested at any time.
Usage conditions
The purchaser may use the dataset for internal design work and commercial product development.
However:
• The scan files themselves cannot be redistributed
• The dataset may not be resold, shared or transferred
• Any portion of the scan data may not be published or redistributed
Products developed using this dataset may be manufactured and sold.
Daihatsu Copen L880K 3D Scan
£199.00Incl. VAT
